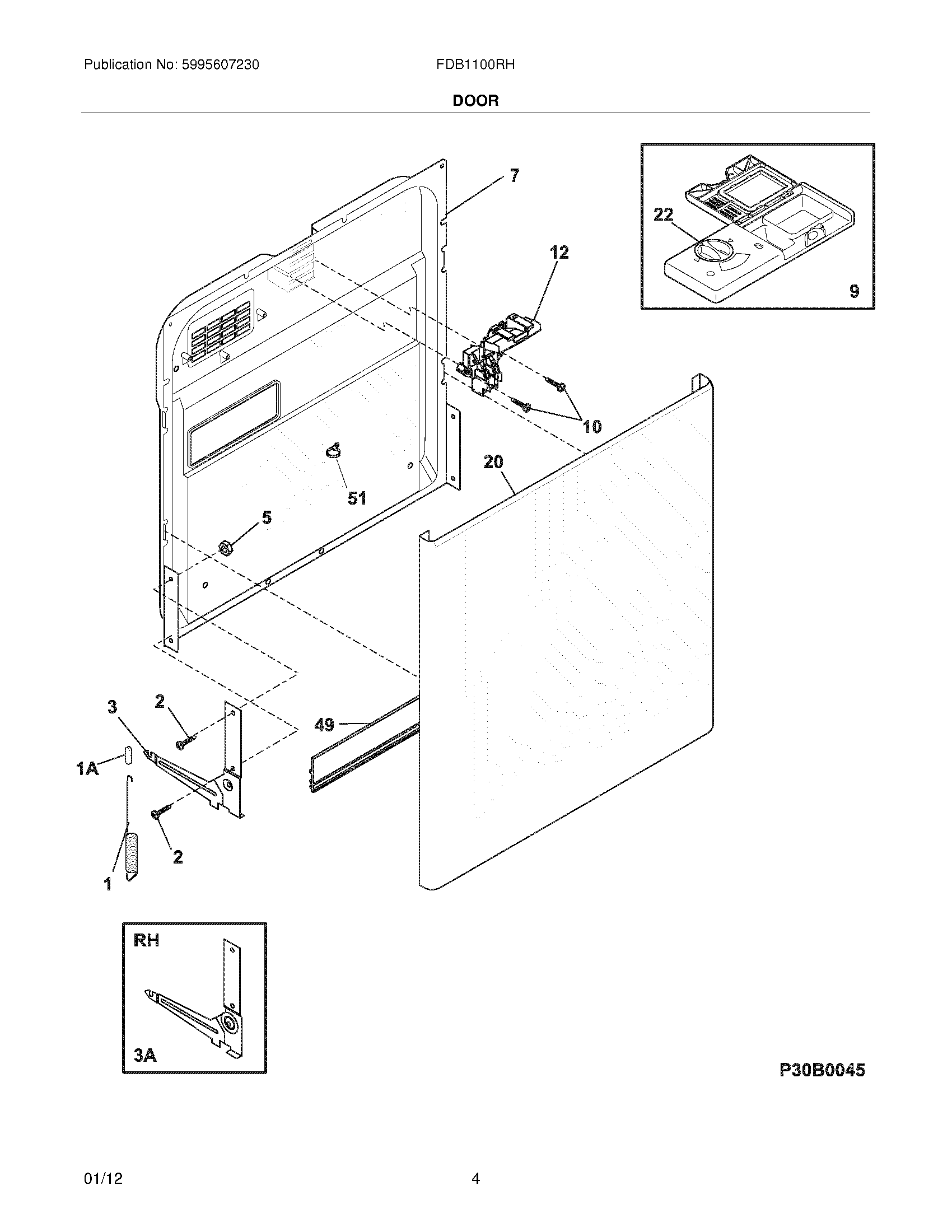

FDB1100RHQ3B 05 – DOOR

Products

Position	Product
NI	154294701 Frigidaire Dishwasher Screw
NI	5304525214 Frigidaire Dishwasher Shield
NI	154686401 Frigidaire Dishwasher Bearing
NI	154647101 Frigidaire Dishwasher Pin Hinge
NI	154754701 Frigidaire Dishwasher Screw
1	154430501 Frigidaire Dishwasher Door Spring
1A	154325201 Frigidaire Linkage Spring
2	154093301 Frigidaire Dishwasher ARM Assembly Screw
3A	5304513274 Frigidaire Dishwasher Counterbalance Arm Left Right
5	5303013272 Frigidaire Oven Nut
7	WCI 154494601
9	154574401 Frigidaire Dishwasher Dispenser
10	154103702 Frigidaire Dishwasher Screw
12	WCI 154556704
20	WCI 154829004
22	154388801 Frigidaire Dishwasher Rinse Aid Dispenser Cap
49	809006501 Frigidaire Bottom Seal/Gasket Door
51	WCI 154320301
