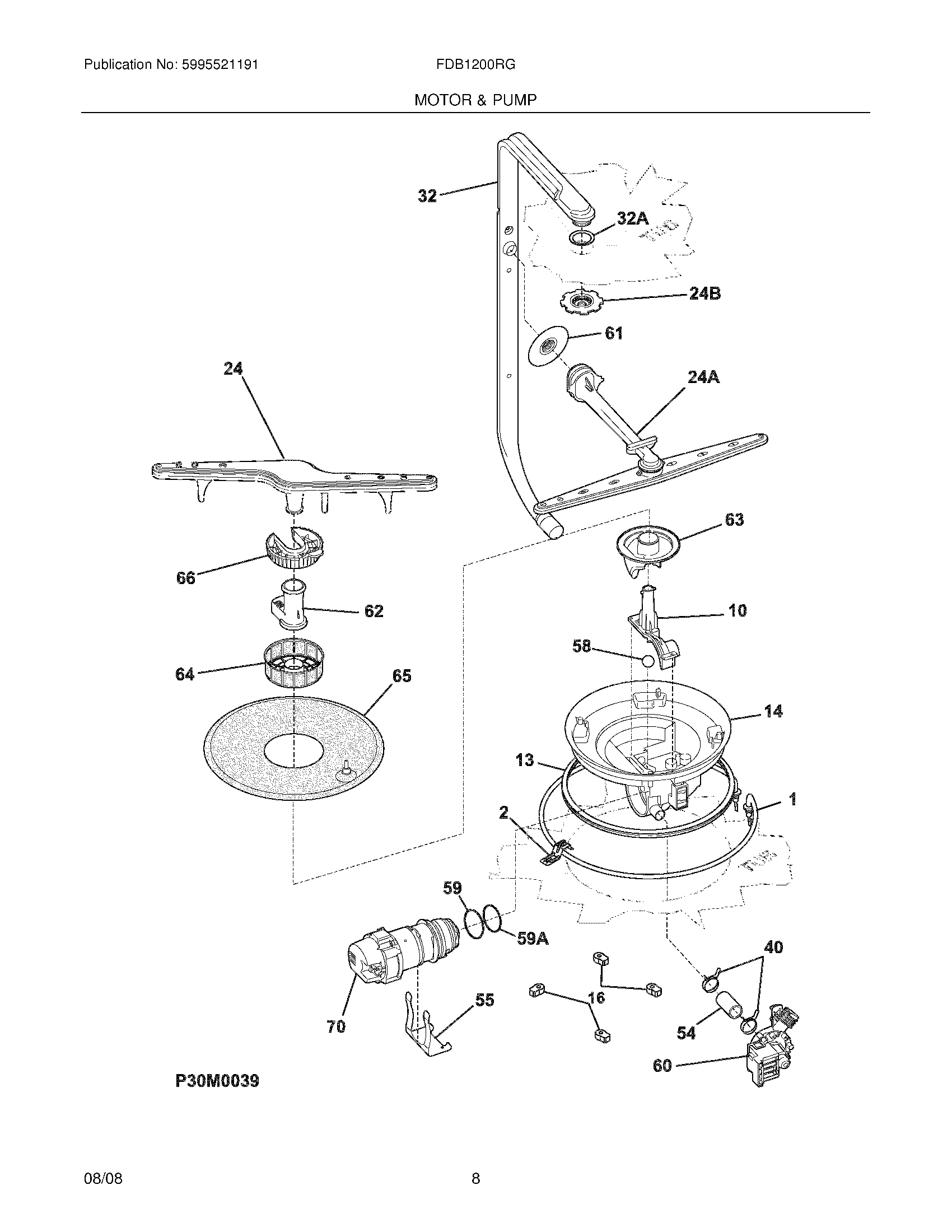

FDB1200RGB1 09 – MOTOR & PUMP

FDB1200RGB1 09 – MOTOR & PUMP

Written by

in

FDB1200RGB1 09 – MOTOR & PUMP

Products

PositionProduct
NIWCI 154200601
NI154106202 Frigidaire Dishwasher Heater Nut
NI154289801 Frigidaire Dishwasher Shield
NIWCI 5303316032
NI154491101 Frigidaire Dishwasher Screw
NI154380601 Frigidaire Dishwasher Clamp Assembly
1154825001 Frigidaire Dishwasher Round Heater Heating Element
2154465101 Frigidaire Dishwasher Heating Element Support Bracket
10807145201 Frigidaire Dishwasher Cover-Volute
13154246801 Frigidaire Dishwasher Primary Gasket
14WCI 154461901
16154246502 Frigidaire Dishwasher Bracket
24AA01986801 Frigidaire Upper Rack Assembly
245304517203 Frigidaire Dishwasher Lower Wash Arm Assembly
24BWCI 154520601
32A154406401 Frigidaire Delivery Tube Gasket
325304507087 Frigidaire Dishwasher Tube
40154611101 Frigidaire Dishwasher Clamp
54154757702 Frigidaire Hose
555304534830 Frigidaire Dishwasher Bracket
58154246402 Frigidaire Dishwasher P-1 BALL
59A154247001 Frigidaire Dishwasher Pump Gasket Seal for the Motor and Front
59154246901 Frigidaire Dishwasher Rear O-Ring for 154473001 Motor
60154580301 Frigidaire Drain Pump Assembly
615304506517 Frigidaire Dishwasher Grommet Assembly
625304518968 Frigidaire Lower Spray Arm Support
635304506533 Frigidaire Dishwasher Filter Base
655304506525 Frigidaire Dishwasher Filter Assembly
66154252701 Frigidaire Dishwasher Filter Trap Assembly
70154844301 Frigidaire Dishwasher Motor Kit
