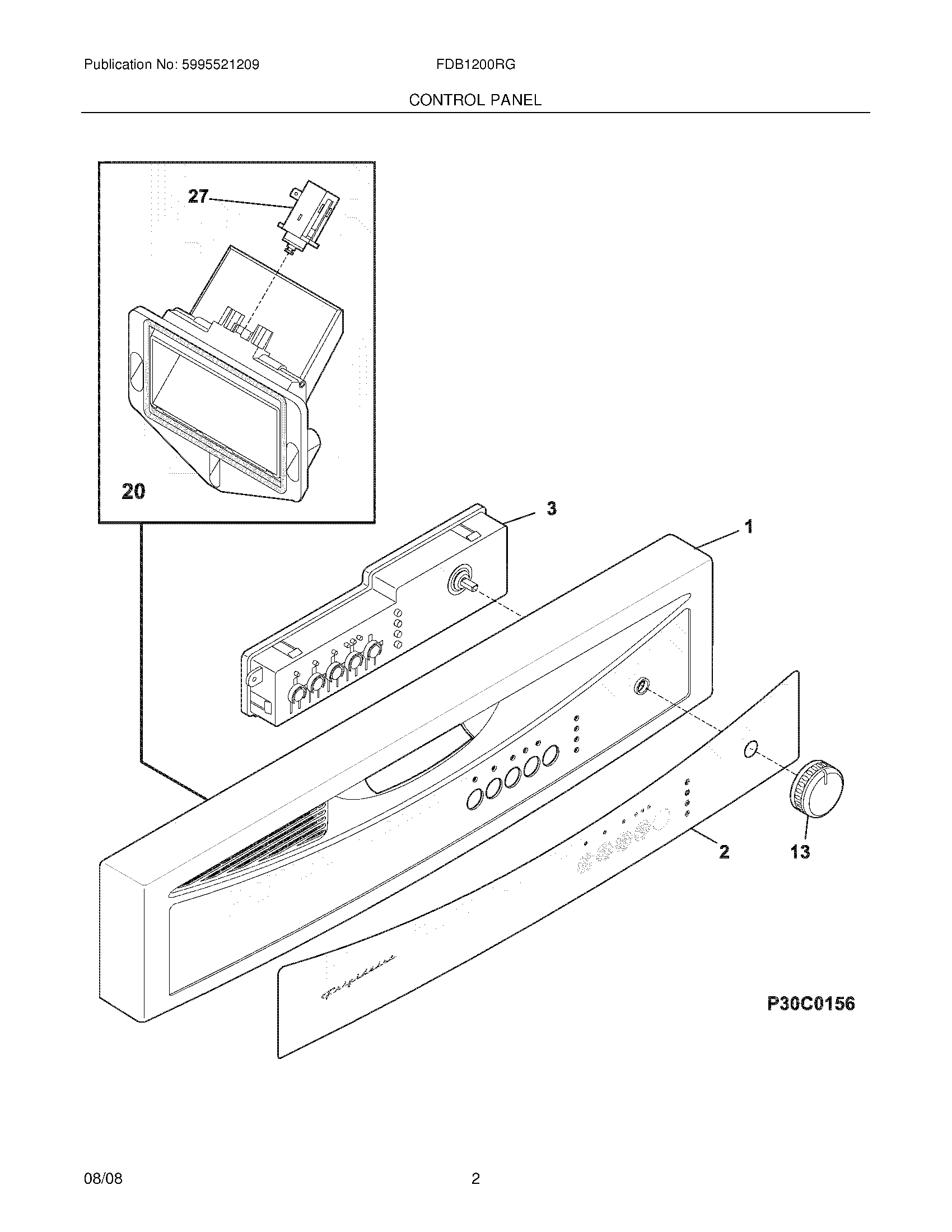

FDB1200RGC2 03 – CONTROL PANEL

Products

Position	Product
NI	808326801 Frigidaire Dishwasher Screw
NI	WCI 154646101
NI	WCI 154678510
NI	154753101 Frigidaire Dishwasher Thermistor
NI	WCI 154436201
1	WCI 154644803
2	WCI 154535103
3	154568301 Frigidaire Dishwasher Control Module
13	WCI 154535903
20	VENT ASSY, ACTIVE DRY, W/ACTUATOR
27	ACTUATOR, ACTIVE DRY VENT
