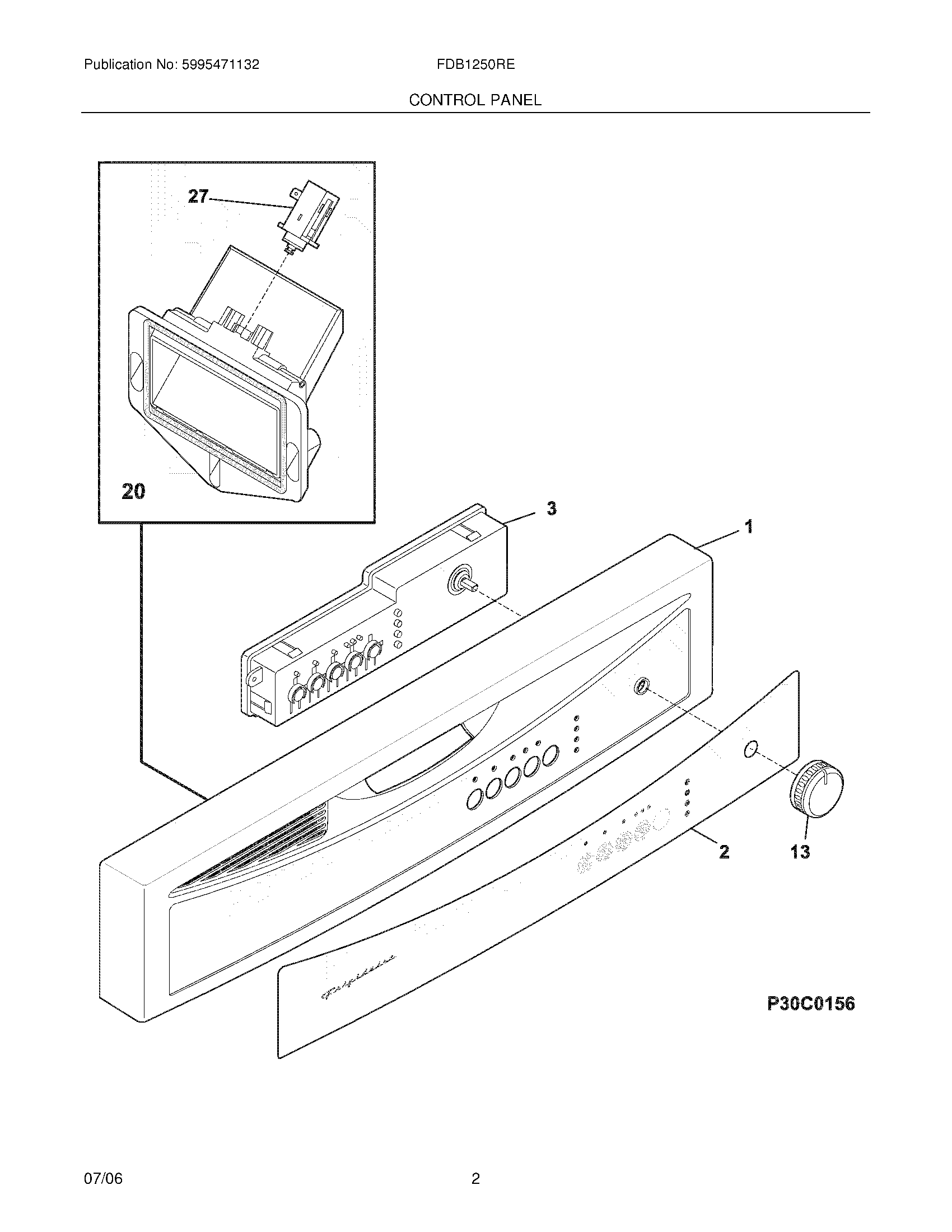

FDB1250REQ2 03 – CONTROL PANEL

Written by

Products

Position	Product
NI	808326801 Frigidaire Dishwasher Screw
NI	WCI 154536901
NI	WCI 154540028
NI	154753101 Frigidaire Dishwasher Thermistor
NI	WCI 154436201
1	WCI 154534804
2	WCI 154535104
3	154568301 Frigidaire Dishwasher Control Module
13	WCI 154535904
20	VENT ASSY, ACTIVE DRY, W/ACTUATOR
27	ACTUATOR, ACTIVE DRY VENT
