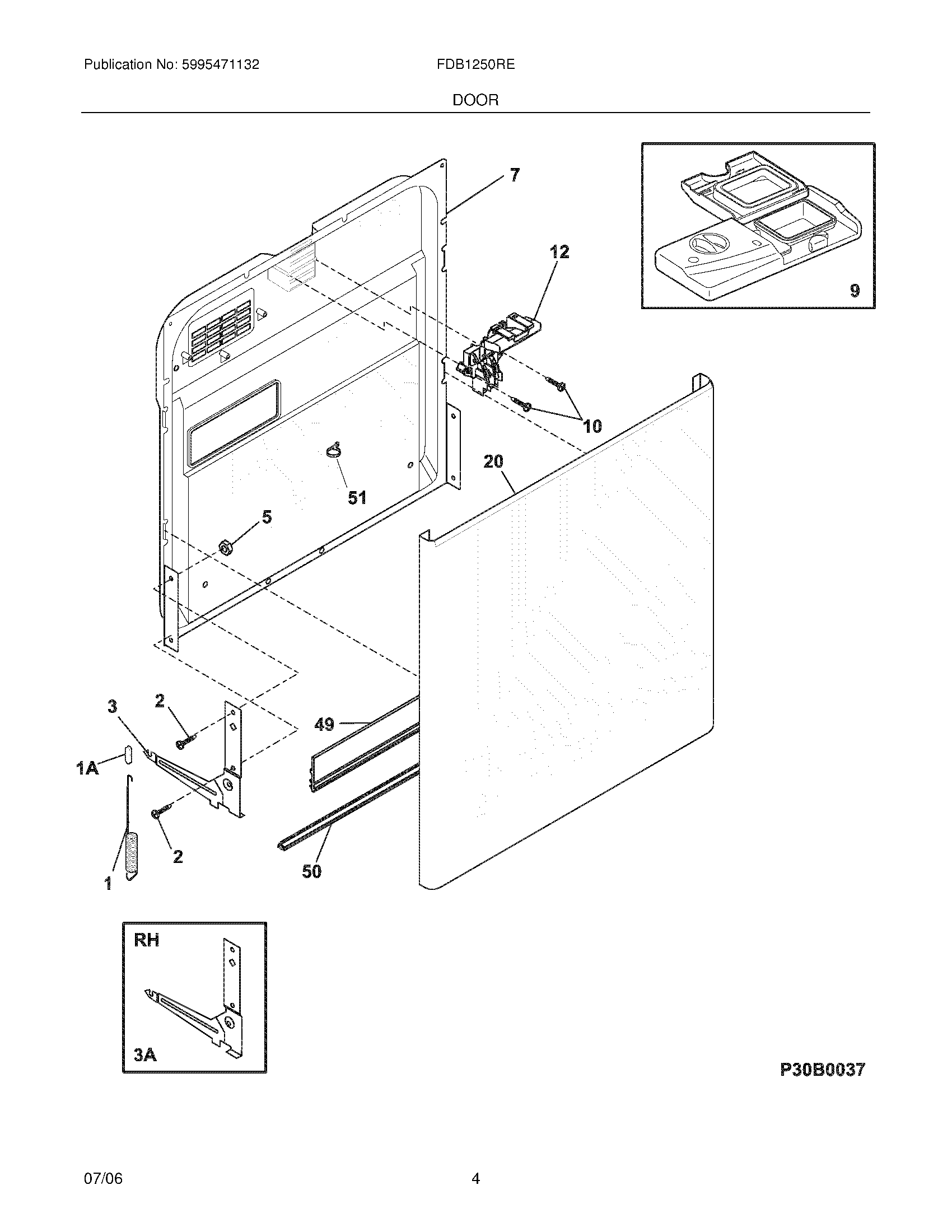

FDB1250RES2 05 – DOOR

Products

Position	Product
NI	154294701 Frigidaire Dishwasher Screw
NI	WCI 154529101
NI	WCI 5304428306
NI	808326801 Frigidaire Dishwasher Screw
1	154430501 Frigidaire Dishwasher Door Spring
1A	154325201 Frigidaire Linkage Spring
2	154093301 Frigidaire Dishwasher ARM Assembly Screw
3	5304513274 Frigidaire Dishwasher Counterbalance Arm Left Right
5	5303013272 Frigidaire Oven Nut
7	WCI 154494601
9	5304506521 Frigidaire Dishwasher Dispenser
10	154103702 Frigidaire Dishwasher Screw
12	A00099902 Frigidaire Dishwasher Latch Door
20	WCI 154538301
49	809006501 Frigidaire Bottom Seal/Gasket Door
50	WCI 154211401
51	WCI 154320301
