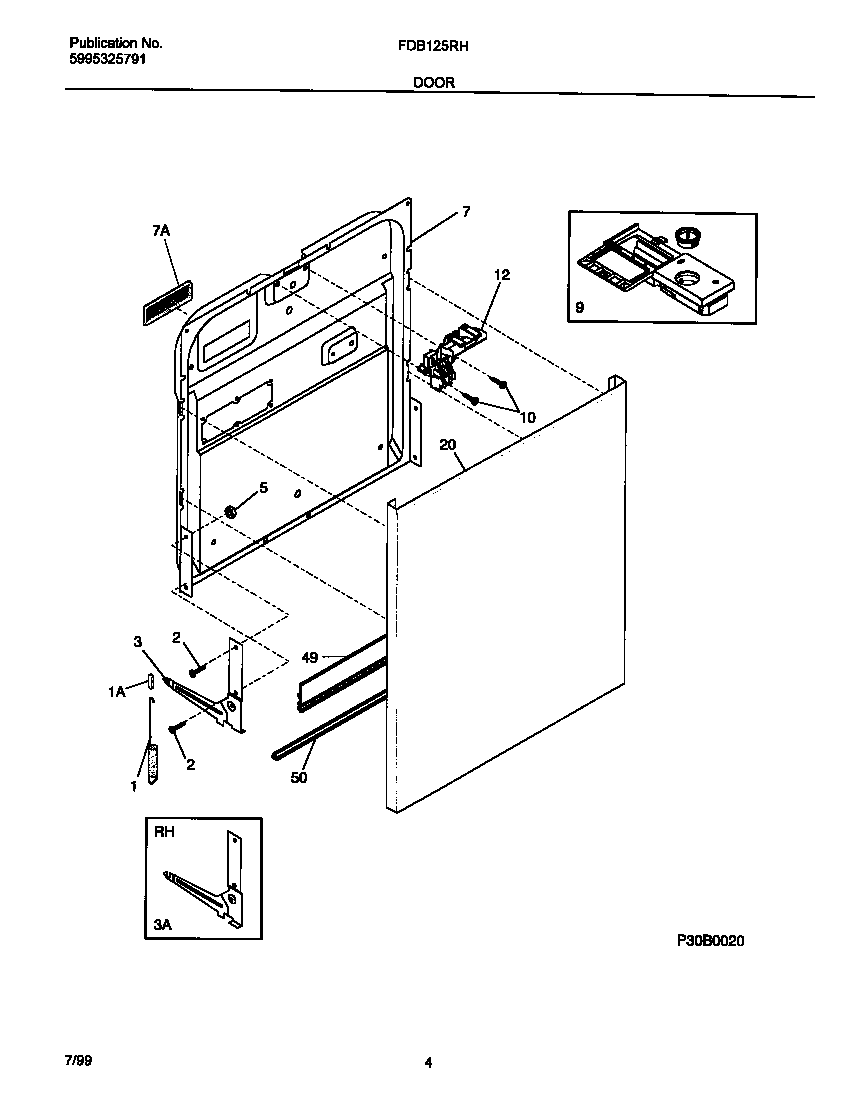

FDB125RHB0 03 – DOOR

FDB125RHB0 03 – DOOR

Written by

in

FDB125RHB0 03 – DOOR

Products

PositionProduct
*80084154294701 Frigidaire Dishwasher Screw
*80083PIN-ARM (NOT ILLUSTRATED)
*80086WCI 154200601
*80087INSULATION,DOOR
*80085WCI 154320301
1154430501 Frigidaire Dishwasher Door Spring
1154325201 Frigidaire Linkage Spring
2154093301 Frigidaire Dishwasher ARM Assembly Screw
35304409912 Frigidaire Dishwasher P-1 Right Hinge
55303013272 Frigidaire Oven Nut
7WCI 154299002
7WCI 154332701
9154574401 Frigidaire Dishwasher Dispenser
10SCREW-LATCH MTG, (2) (NOT ILLUSTRATED)
125304442175 Frigidaire Black Door Latch Assembly
20WCI 154359103
49809006501 Frigidaire Bottom Seal/Gasket Door
50WCI 154211401
