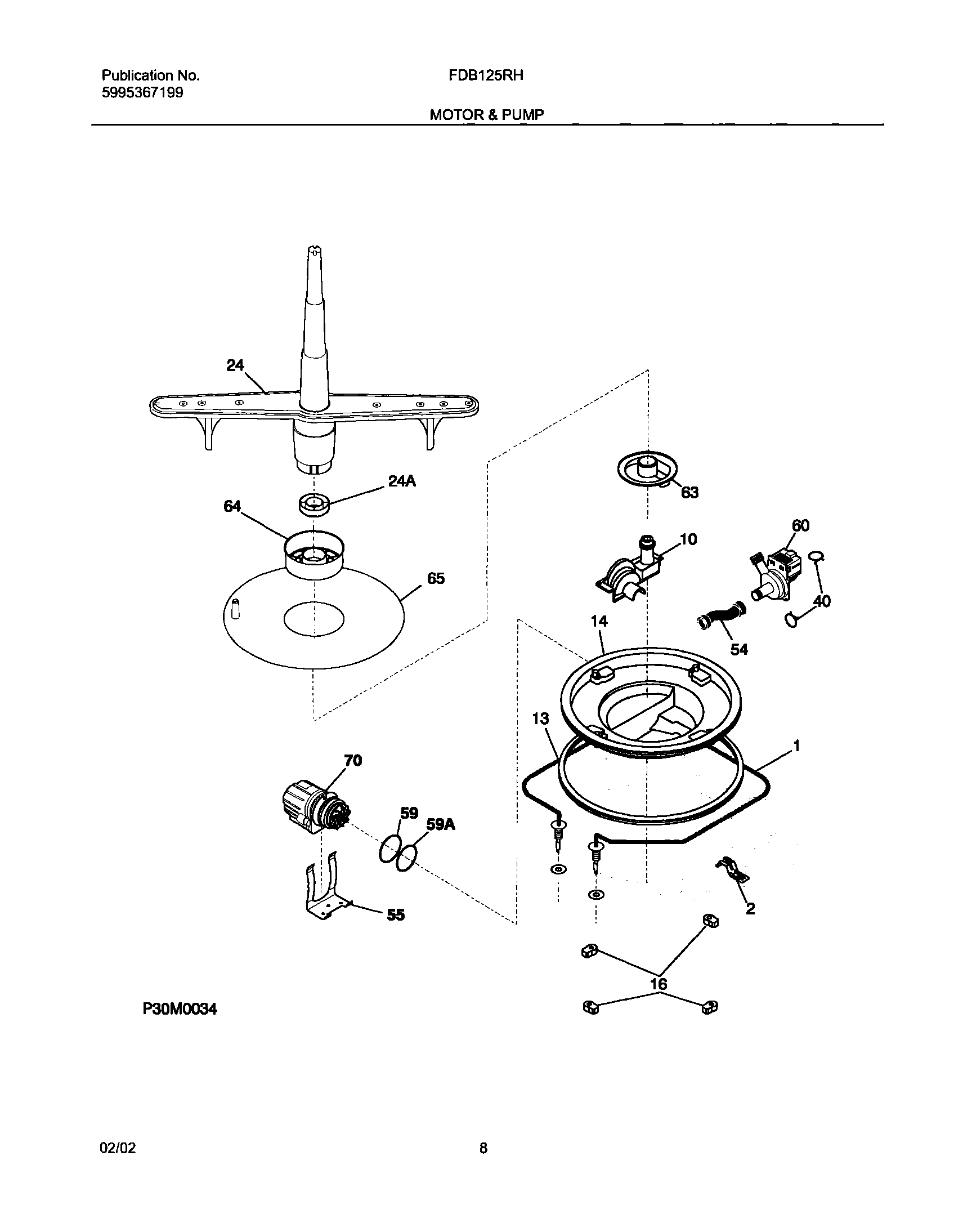

FDB125RHB3 09 – MOTOR & PUMP

Products

Position	Product
NI	WCI 154200601
NI	BRACKET-MOTOR, DRAIN (NOT ILLUSTRATED)
NI	154289801 Frigidaire Dishwasher Shield
NI	154106202 Frigidaire Dishwasher Heater Nut
NI	WCI 5303316032
NI	154380601 Frigidaire Dishwasher Clamp Assembly
1	154665201 Frigidaire Dishwasher Heater
2	WCI 154359701
10	WCI 154335301
13	154246801 Frigidaire Dishwasher Primary Gasket
14	WCI 154365903
16	154246502 Frigidaire Dishwasher Bracket
24A	154335201 Frigidaire Dishwasher Lower Spray Arm Nut
24	5304518927 Frigidaire Dishwasher Lower Wash Spray Arm
40	WCI 154348501
40	154348401 Frigidaire Dishwasher Clamp
54	154234401 Frigidaire Dishwasher Hose P-1
55	5304534830 Frigidaire Dishwasher Bracket
59A	154247001 Frigidaire Dishwasher Pump Gasket Seal for the Motor and Front
59	154246901 Frigidaire Dishwasher Rear O-Ring for 154473001 Motor
60	WCI 154407401
63	5304506533 Frigidaire Dishwasher Filter Base
65	5304506525 Frigidaire Dishwasher Filter Assembly
70	MOTOR KIT W HARNESS
