FDB125RHS0 04 – TUB

FDB125RHS0 04 – TUB

Written by

in

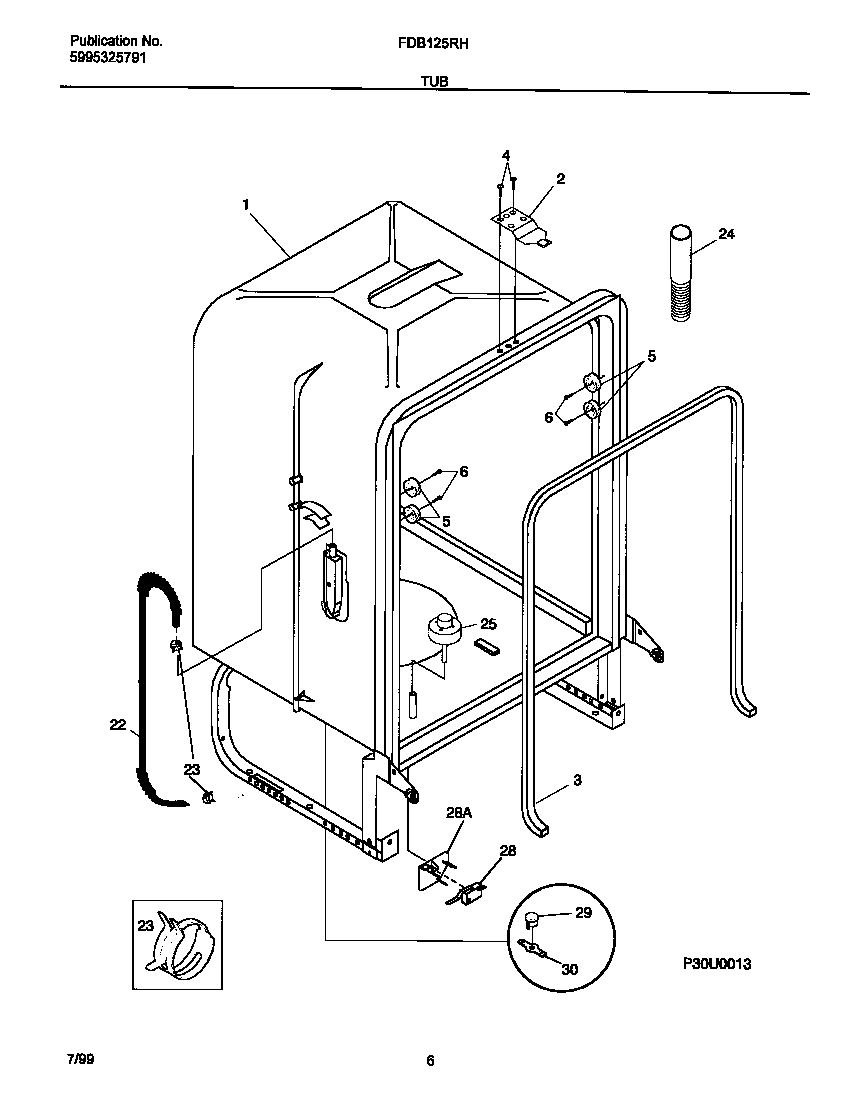

FDB125RHS0 04 – TUB

Products

PositionProduct
*80088154297701 Frigidaire Dishwasher Screw
*80090808690701 Frigidaire Dishwasher Screw
*80089154641601 Frigidaire Dishwasher Insulation
1WCI 154209204
2154662601 Frigidaire Door Strike Latch
3154827601 Frigidaire Dishwasher Tub Gasket
4WCI 154200602
55304507405 Frigidaire Dishwasher Gray Tub Dishrack Roller
65303943103 Frigidaire Dishwasher P-1 Screw Kit (8 Each Wash/Screw)
225304523457 Frigidaire Inlet Hose
23CLAMP, HOSE
24154225602 Frigidaire Dishwasher Drain Hose, 10' Long
255304506520 Frigidaire Dishwasher Float Assembly
28B154200701 Frigidaire Dishwasher Screw
28AFLOAT SWITCH ASSY
28WCI 154225501
29154290204 Frigidaire Dishwasher Thermostat
30154241101 Frigidaire Dishwasher Retainer
