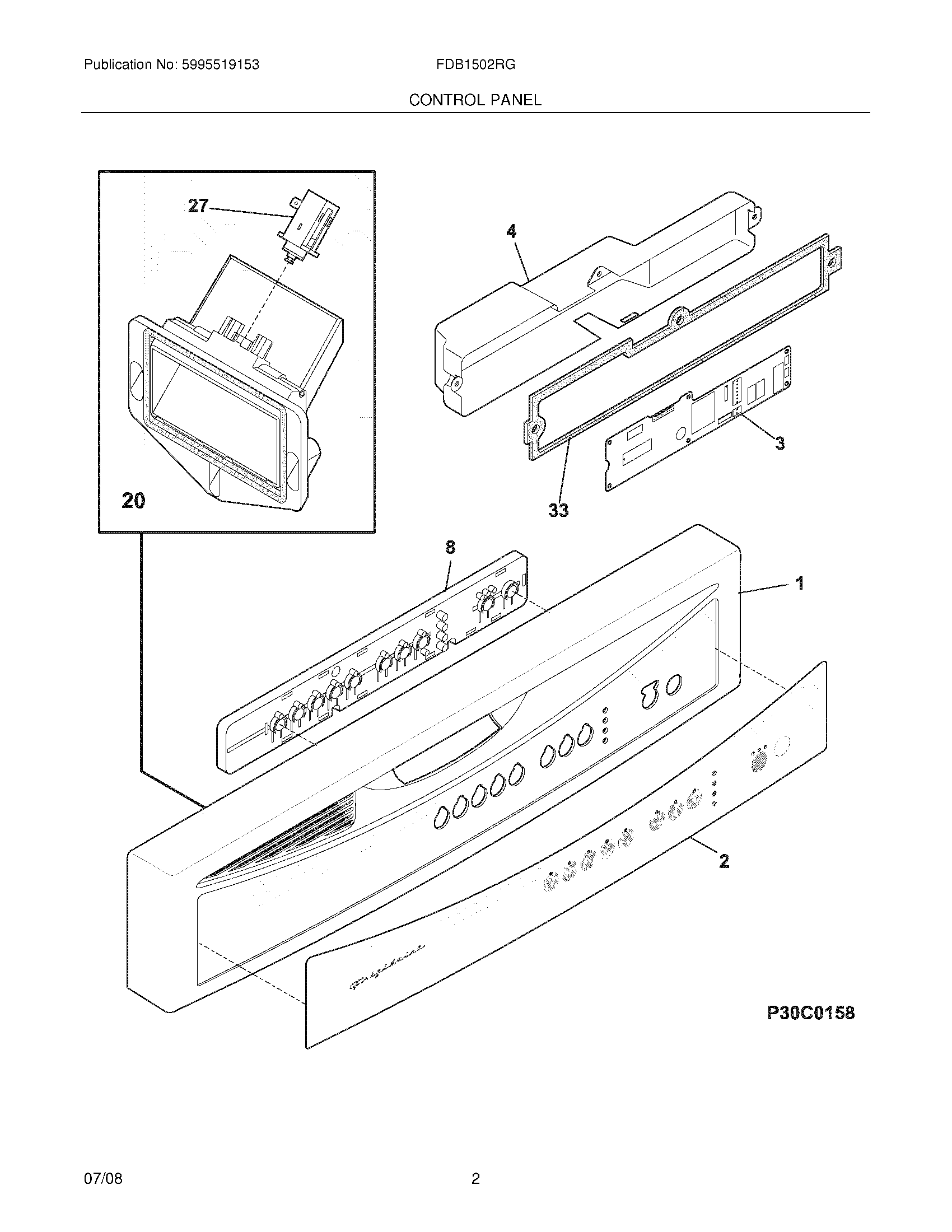

FDB1502RGC1 03 – CONTROL PANEL

Products

Position	Product
NI	154294701 Frigidaire Dishwasher Screw
NI	WCI 154665601
NI	WCI 154678514
NI	154753101 Frigidaire Dishwasher Thermistor
NI	WCI 154436201
NI	808326801 Frigidaire Dishwasher Screw
1	5304506543 Frigidaire Dishwasher Panel
2	WCI 154591803
3	5304512731 Frigidaire Dishwasher Control Board
4	WCI 154552101
8	154852501 Frigidaire Dishwasher Switch Assembly
20	VENT ASSY, ACTIVE DRY, W/ACTUATOR
27	ACTUATOR, ACTIVE DRY VENT
33	154553501 Frigidaire Dishwasher Gasket
