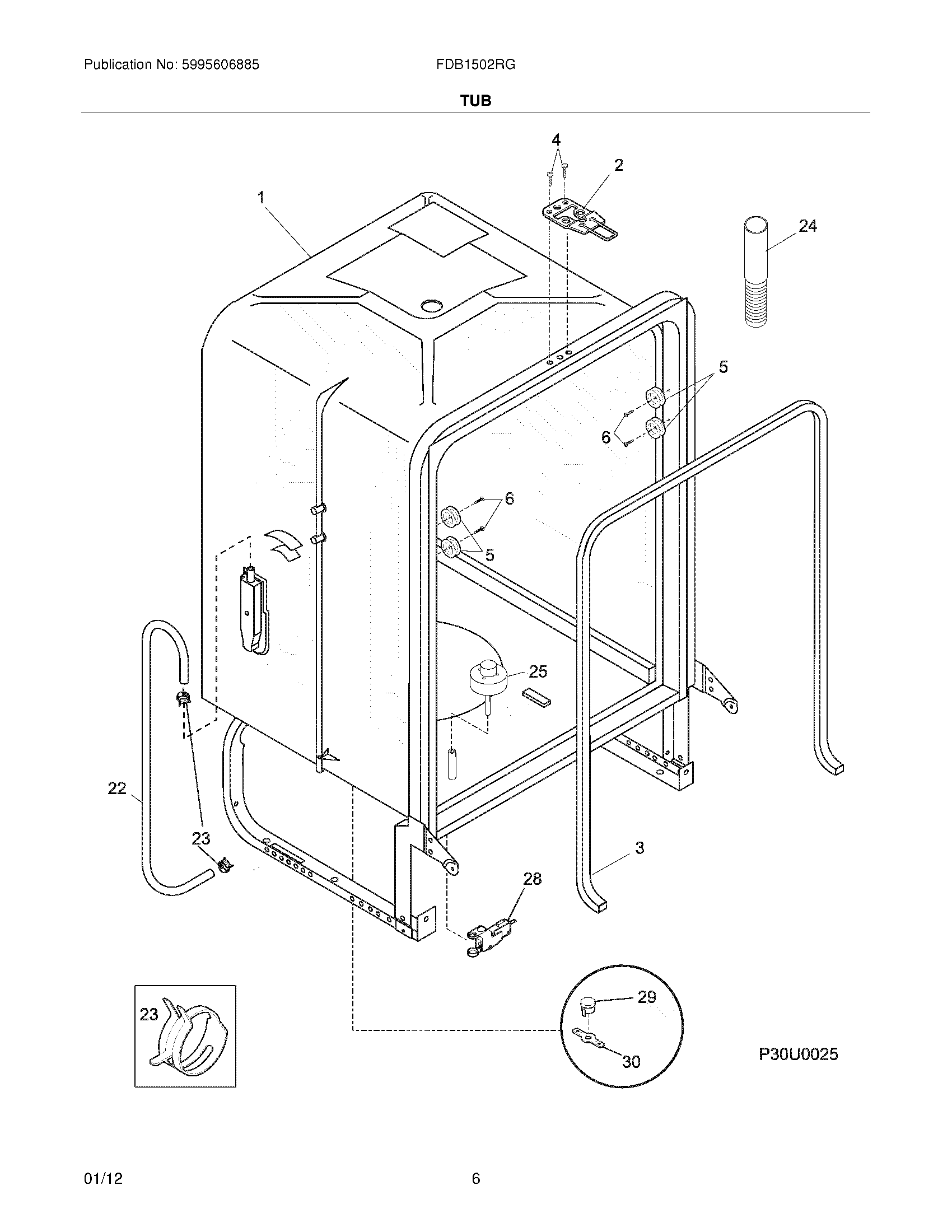

| NI | WCI 154200601 |
| NI | 154380601 Frigidaire Dishwasher Clamp Assembly |
| NI | 154701001 Frigidaire Dishwasher Service Kit Splash Shield |
| NI | 154641601 Frigidaire Dishwasher Insulation |
| NI | 808690701 Frigidaire Dishwasher Screw |
| NI | WCI 5300807270 |
| NI | 154297701 Frigidaire Dishwasher Screw |
| 1 | WCI 154729301 |
| 2 | 154662601 Frigidaire Door Strike Latch |
| 3 | 154827601 Frigidaire Dishwasher Tub Gasket |
| 4 | WCI 154200602 |
| 5 | 5304507405 Frigidaire Dishwasher Gray Tub Dishrack Roller |
| 6 | 5303943103 Frigidaire Dishwasher P-1 Screw Kit (8 Each Wash/Screw) |
| 22 | 5304523457 Frigidaire Inlet Hose |
| 23 | CLAMP, HOSE |
| 24 | 807117001 Frigidaire Dishwasher Drain Hose |
| 25 | 5304506520 Frigidaire Dishwasher Float Assembly |
| 28 | FLOAT SWITCH ASSY |
| 29 | 5304525221 Frigidaire Dishwasher Thermostat |
| 30 | 154241101 Frigidaire Dishwasher Retainer |
