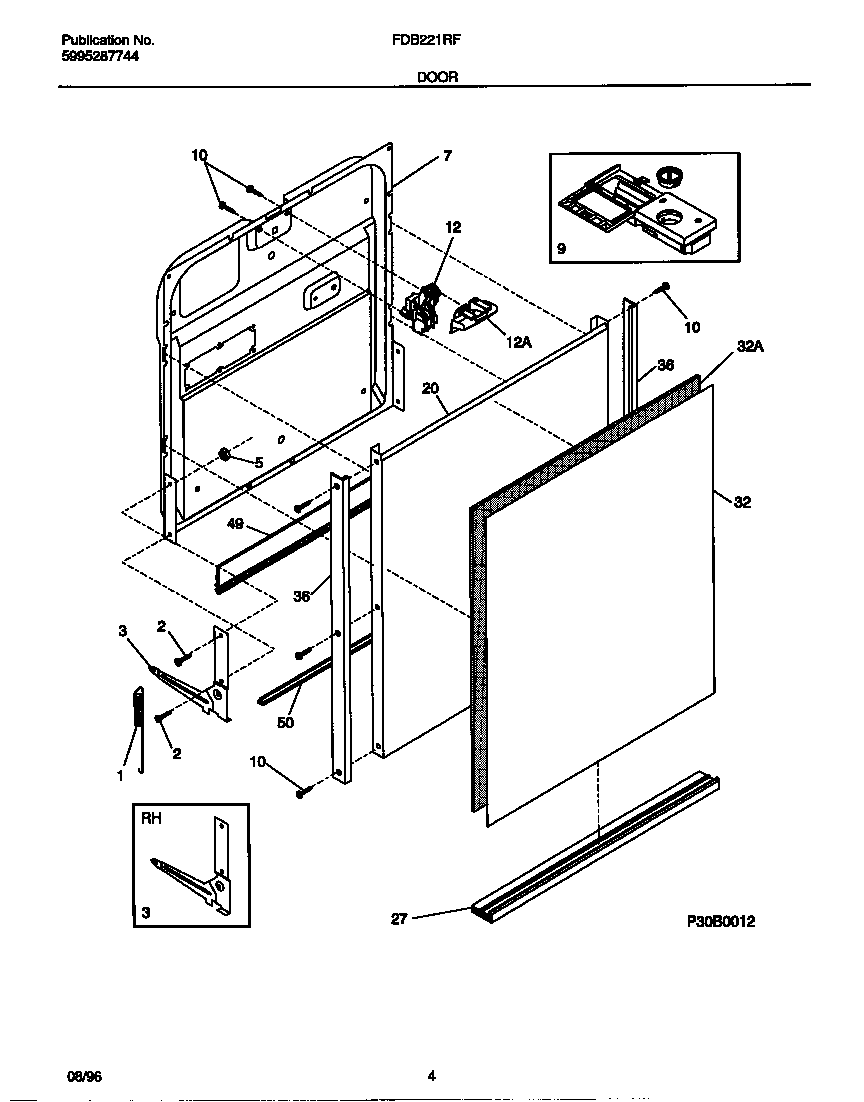

FDB221RFR0 03 – DOOR

FDB221RFR0 03 – DOOR

Written by

in

FDB221RFR0 03 – DOOR

Products

PositionProduct
*61405WCI 154200501
*61406WCI 154200601
*61407SCREW-8 X 5/8“ (2)
1154430501 Frigidaire Dishwasher Door Spring
2154093301 Frigidaire Dishwasher ARM Assembly Screw
3PIN-ARM (NOT ILLUSTRATED)
35304409912 Frigidaire Dishwasher P-1 Right Hinge
55303013272 Frigidaire Oven Nut
7WCI 154210501
9154574401 Frigidaire Dishwasher Dispenser
10154419403 Frigidaire Dishwasher Screw
125304442175 Frigidaire Black Door Latch Assembly
20WCI 154210601
27WCI 154257603
32WCI 154229102
32WCI 154229101
32WCI 154229001
36WCI 154254203
49WCI 154244701
50WCI 154211401
