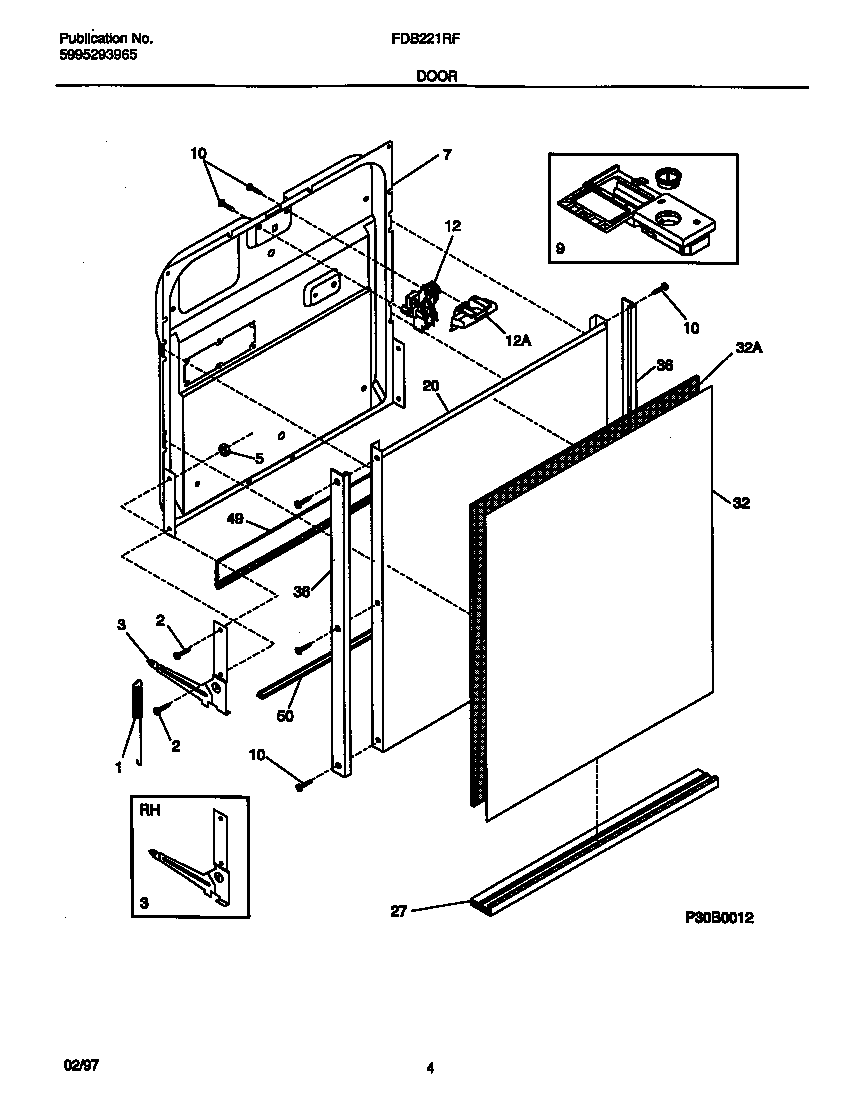

FDB221RFR2 03 – DOOR

FDB221RFR2 03 – DOOR

Written by

in

FDB221RFR2 03 – DOOR

Products

PositionProduct
*02164154103702 Frigidaire Dishwasher Screw
*02165WCI 154200601
*02166SCREW-8 X 5/8“ (2)
1154430501 Frigidaire Dishwasher Door Spring
2154093301 Frigidaire Dishwasher ARM Assembly Screw
3WCI 154298101
3PIN-ARM (NOT ILLUSTRATED)
35304409912 Frigidaire Dishwasher P-1 Right Hinge
55303013272 Frigidaire Oven Nut
7WCI 154299002
9154574401 Frigidaire Dishwasher Dispenser
10154419403 Frigidaire Dishwasher Screw
12SCREW-LATCH MTG, (2) (NOT ILLUSTRATED)
125304442175 Frigidaire Black Door Latch Assembly
20WCI 154210601
27WCI 154257603
32WCI 154229001
32WCI 5303943148
36WCI 154254203
49809006501 Frigidaire Bottom Seal/Gasket Door
50WCI 154211401
