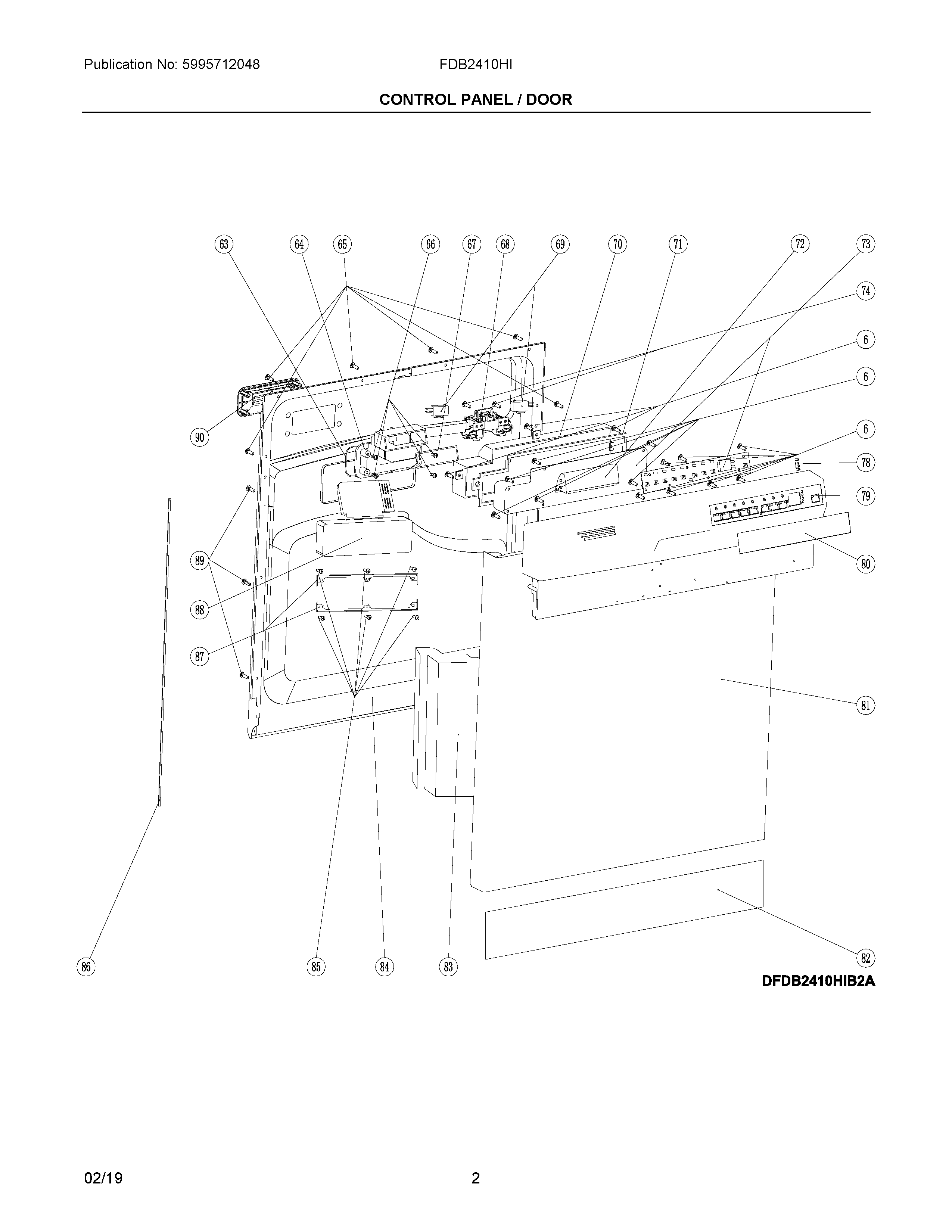

FDB2410HIB2A 02 – CONTROL PANEL / DOOR

Products

Position	Product
6	SCREW, REC TAPPING, ST 3.5 X 9
63	GASKET, VENT, TO DOOR LINER
64	VENT ASSEMBLY, DOOR
65	SCREW, REC TAP, ST3.5 X 18, (6)
66	SCREW, RE PAN HD TAP, ST4 X 12, (4)
67	GASKET, VENT, TO CONSOLE
68	5304535183 Frigidaire Door Latch
69	5304483463 Frigidaire Dishwasher Switch
70	COVER, CONTROL BOARD
71	SEAL, CONTOL COVER
72	COVER, HANDLE, BLACK
73	CONTROL ASSEMBLY, COMPLETE, W/DISPLAY BRD
74	SCREW, REC TAP, ST3.5 X 12, (2)
78	LENS COVER, LED LIGHTS
79	CONSOLE ASSEMBLY, BLACK
80	INSERT, CONSOLE PANEL, BLACK
81	DOOR, OUTER, BLACK
82	INSULATION, DOOR INNER, SOUND PROOF
83	INSULATION, DOOR INNER, POLYSTYRENE
84	LINER, DOOR, INNER
85	SCREW, REC TAP, M3.9 X 12, (6)
86	WCI 5304482448
87	BRACKET, DISPENSER MTG., (2)
88	5304509278 Frigidaire Dishwasher Dispenser
89	SCREW, REC TAP, ST3.5 X 13, (6)
90	COVER, DOOR VENT
