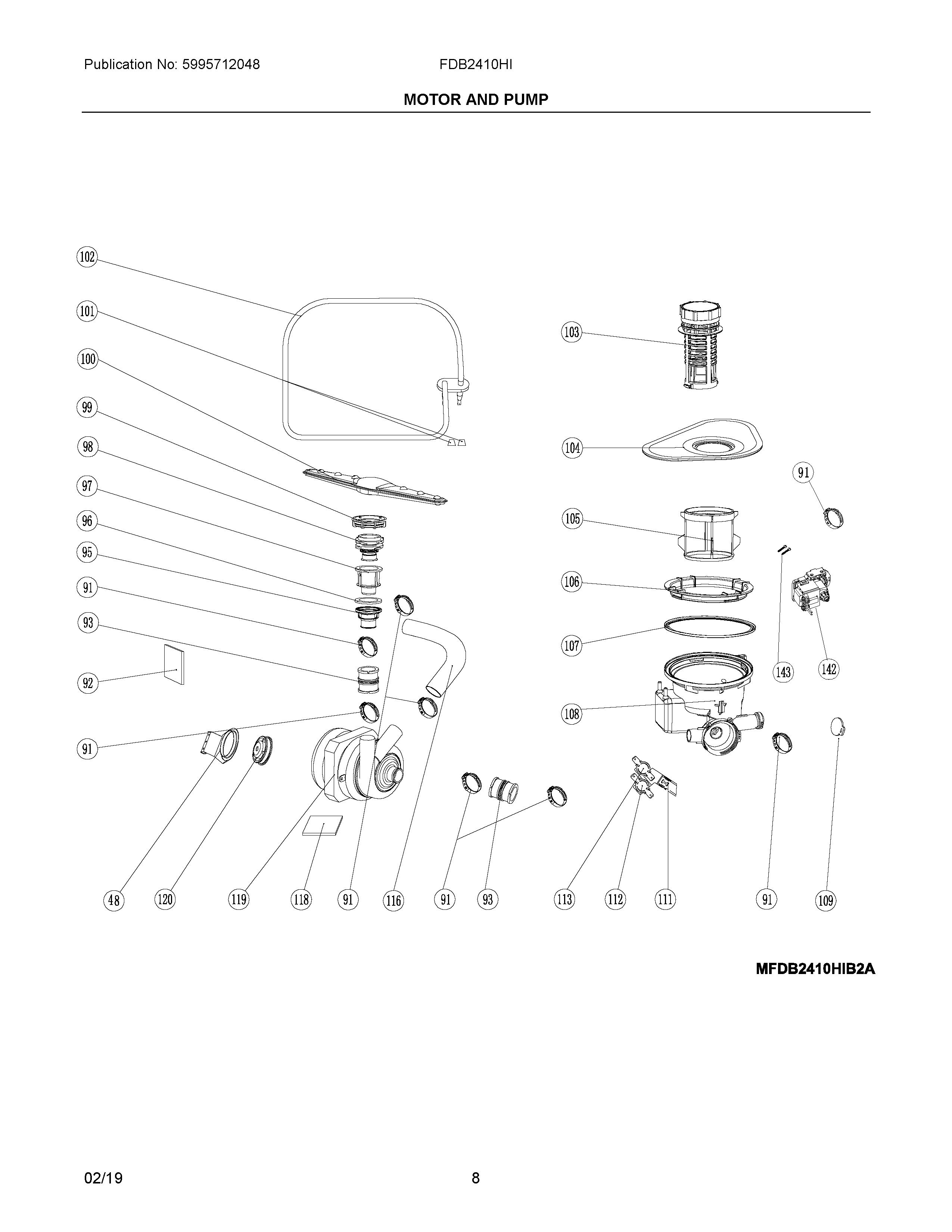

FDB2410HIB2A 04 – MOTOR AND PUMP

Products

Position	Product
48	BRACKET, MOTOR SUPPORT
91	5304482453 Frigidaire Dishwasher Clamp
92	BRACKET, CAPACITANCE
93	DUCT, CONNECTING, (2)
95	SUPPORT, MANIFOLD, LOWER
96	O RING, MANIFOLD, 38 X 2.4
97	TIE-IN, INNER
98	AXIS ASSEMBLY, SPRAY ARM, LOWER
99	NUT, SPRAY ARM, LOWER
100	SPRAY ARM, ASSEMBLY, LOWER
101	CASING, HAETING ELEMENT, (2)
102	ELEMENT-HEATING, ASMY
103	FILTER ASSEMBLY
104	FILTER ASSEMBLY, SCREEN, STAINLESS
105	FILTER ASSEMBLY, MICRO
106	NUT, SUMP MTG.
107	WCI 5304482467
108	SUMP ASSEMBLY
109	5304482469 Frigidaire Dishwasher Flapper
111	BRACKET, THERMOSTAT
112	THERMISTOR
113	THERMOSTAT, 90
116	DUCT, CONNECTING, EXTERNAL PIPE
118	COVER, PUMP
119	5304482475 Frigidaire Dishwasher Pump Assembly
120	PAD, MOTOR VIBRATION
142	5304483444 Frigidaire Dishwasher Pump
143	WCI 5304482501
