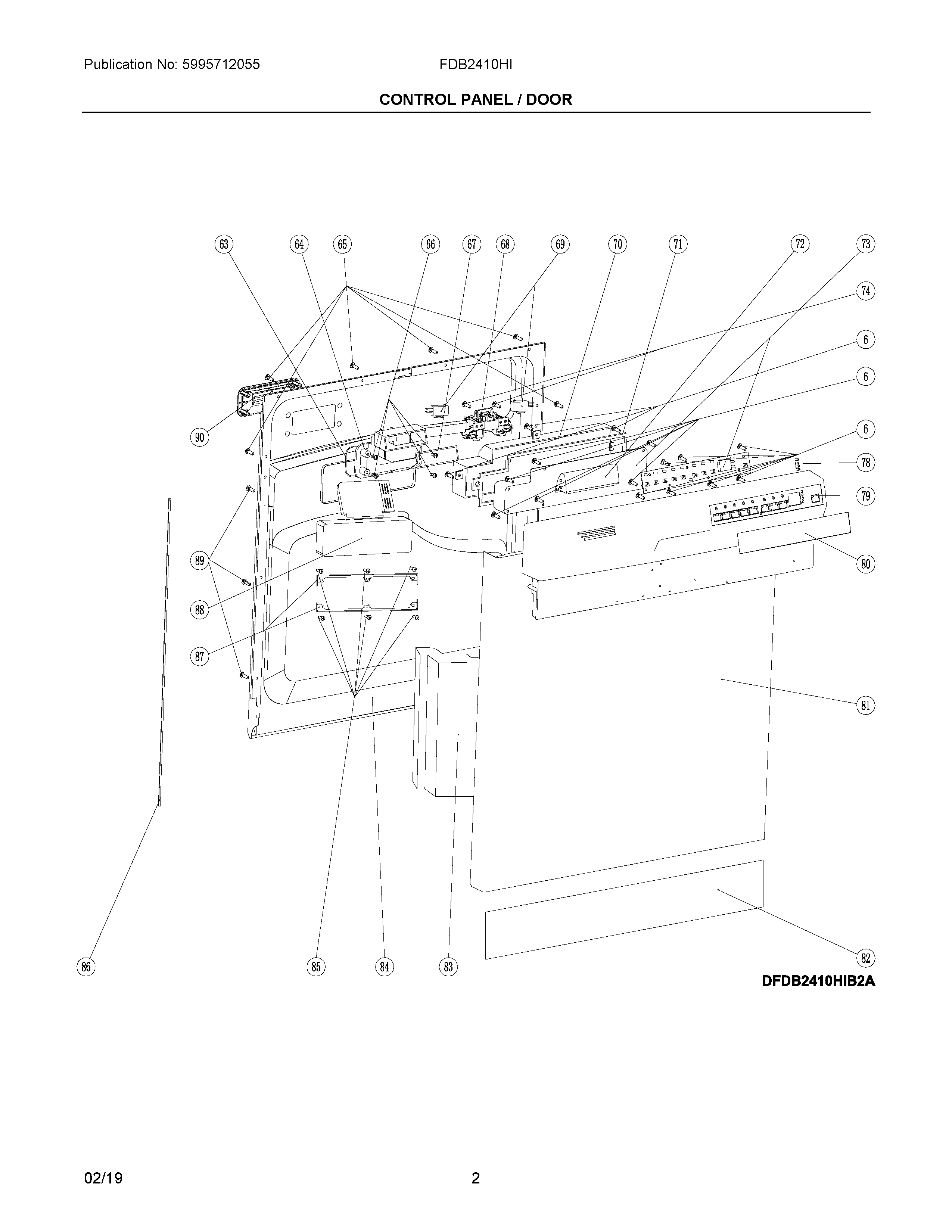

FDB2410HIB3B 02 – CONTROL PANEL / DOOR

Products

PositionProduct
6SCREW, ST3.5 X 9, (4)
63GASKET, VENT, TO DOOR LINER
64VENT ASSEMBLY, DOOR
65SCREW, REC TAP, ST3.5 X 18, (6)
66SCREW, DISPENSER MTG., (6)
67GASKET, VENT, TO CONSOLE
68WCI 5304512886
695304483463 Frigidaire Dishwasher Switch
70COVER, CONTROL BOARD
71SEAL, CONTOL COVER
72COVER, HANDLE, BLACK
73WCI 5304522738
74SCREW, REC TAP, ST3.5 X 12, (2)
78LENS COVER, LED LIGHTS
79CONSOLE ASSEMBLY, BLACK
80INSERT, CONSOLE PANEL, BLACK
81DOOR, OUTER, BLACK
82INSULATION, DOOR INNER, SOUND PROOF
83INSULATION, DOOR INNER, POLYSTYRENE
84LINER, DOOR, INNER
86WCI 5304482448
87BRACKET, DISPENSER MTG., (2)
885304509278 Frigidaire Dishwasher Dispenser
89SCREW, REC TAP, ST3.5 X 13, (6)
90COVER, DOOR VENT
