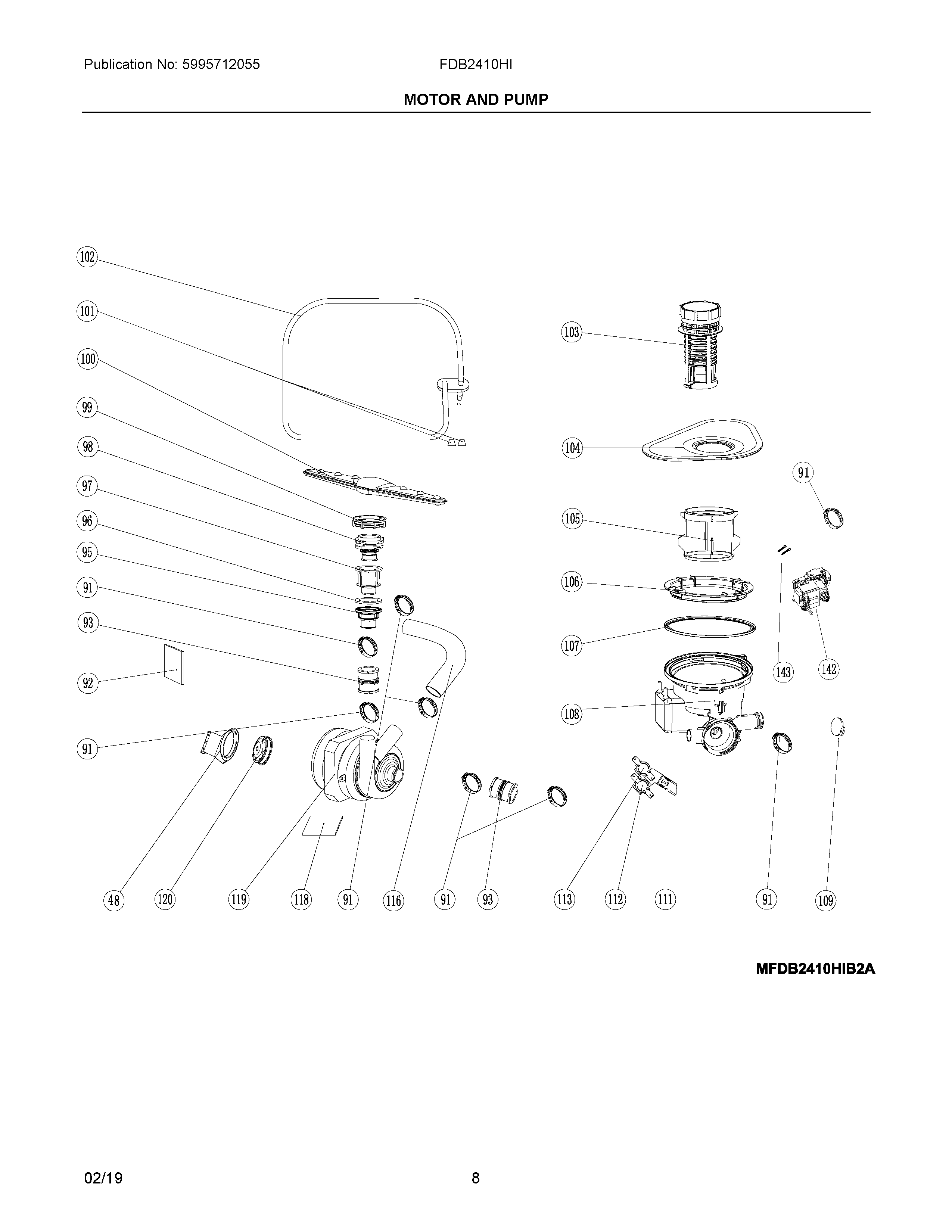

FDB2410HIB3B 04 – MOTOR AND PUMPadmin2025-04-26T08:59:39+00:00FDB2410HIB3B 04 – MOTOR AND PUMP
Products
| Position | Product |
|---|
| 91 | WCI 5304522739 |
| 93 | 5304512129 Frigidaire Dishwasher Duct |
| 95 | WCI 5304522740 |
| 100 | 5304522741 Frigidaire Spray Arm |
| 101 | CASING, HAETING ELEMENT, (2) |
| 102 | ELEMENT-HEATING, ASMY |
| 103 | FILTER ASSEMBLY |
| 104 | FILTER ASSEMBLY, SCREEN, STAINLESS |
| 105 | FILTER ASSEMBLY, MICRO |
| 106 | NUT, SUMP MTG. |
| 107 | 5304512882 Frigidaire Dishwasher Gasket |
| 108 | 5304512883 Frigidaire Dishwasher Sump Assembly |
| 111 | 5304483441 Frigidaire Dishwasher Thermistor |
| 112 | SENSOR, TURBIDITY |
| 113 | WCI 5304522742 |
| 114 | DUCT, CONNECTING, (2) |
| 116 | WCI 5304522743 |
| 119 | 5304512880 Frigidaire Dishwasher Pump Assembly |
| 120 | SUPPORT ASSEMBLY, MOTOR, W/PAD |
| 142 | 5304483444 Frigidaire Dishwasher Pump |
| 143 | WCI 5304482501 |
