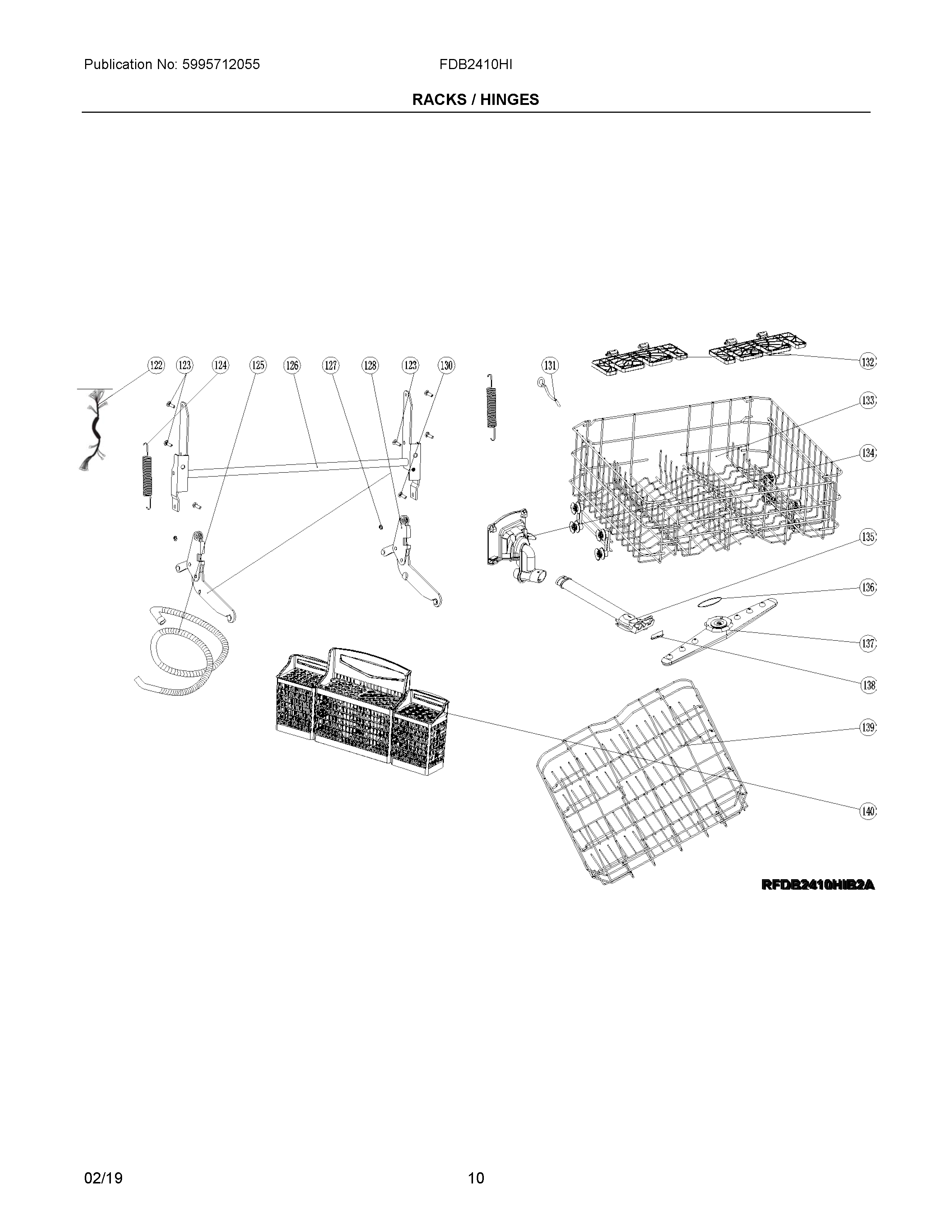

FDB2410HIB3B 05 – RACKS / HINGES

Products

PositionProduct
122WCI 5304522744
123SCREW, REC, M5 X 6, (5)
124SPRING, DOOR, (2)
1255304483456 Frigidaire Dishwasher Drain Hose
126WCI 5304522745
127RING, CLAMPING, (2)
128AWCI 5304482484
128WCI 5304482483
130PIN, HINGE JOINT, (2)
131BOLT, DOOR SPRING, (2)
132SHELF, CUP, (2)
1335304470264 Frigidaire Dishwasher Rack Assembly
134DELIVERY ASSEMBLY, SPRAY ARM, MIDDLE
135DELIVERY TUBE, SPRAY ARM, MIDDLE
1375304532072 Frigidaire Dishwasher Spray Arm
138BLOCK, FASTENER, SPRAY ARM
1395304518472 Frigidaire Dishwasher Rack Assembly
1405304482498 Frigidaire Dishwasher Silverware Basket, Small Side
