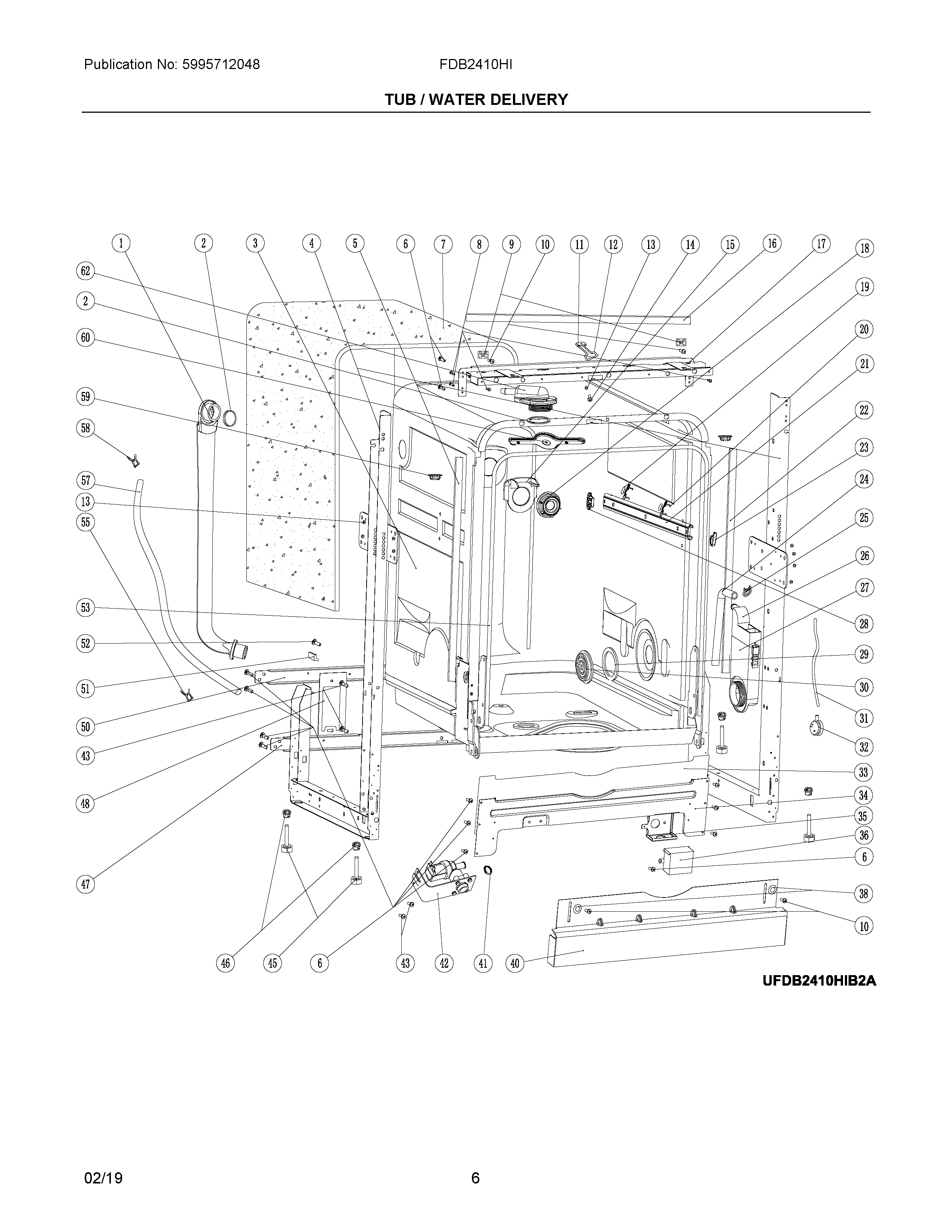

FDB2410HIC2A 03 – TUB / WATER DELIVERY

Products

Position	Product
NIA	FASTENER, TUB GASKET, BOTTOM, (2)
NI	WCI 5304482416
1	DELIVERY HOSE, ASSEMBLY
2	O RING, DELIVERY TUBE, (2)
3	TUB ASSEMBLY
4	UPRIGHT ASSEMBLY, LH
4A	UPRIGHT ASSEMBLY, RH
5	TUB GUARD, LH, BLACK
6	SCREW, REC TAPPING, ST 3.5 X 9
7	INSULATION, BLANKET, TUB, SOUND PROOF
8	RIVET, (6)
9	BLOCK, TOP, BLACK, (2)
10	SCREW, REC TAPPING, ST 3.5 X 11, (2)
11	BLOCK, COUPLING, DOOR
12	5304483485 Frigidaire Dishwasher Hook
13	5304482375 Frigidaire Dishwasher Locknut
14	SCREW, REC CNTRSUNK HD, M4 X 16
15	CASING, DELIVERY TUBE, INLET
16	TUB GUARD, TOP, BLACK
17	CROSS PIECE, FRONT, BLACK, UPPER
18	NUT, DELIVERY TUBE, INLET
19	BRACKET, GUIDE RAIL, (4)
20	O RING, BRACKET, GUIDE RAIL, (8)
21	RAIL, RACK GUIDE, (2)
22	TUB GUARD, RH, BLACK
23	5304482388 Frigidaire Dishwasher Front Rail Guide Block
24	5304482389 Frigidaire Dishwasher Hose
25	5304482390 Frigidaire Dishwasher Clamp
26	COVER, WATER TUNNEL
27	TUNNEL, WATER
28	BLOCK, GUIDE RAIL, REAR, (2)
29	GASKET, RING NUT
30	RING NUT
31	HOSE, PREESURE SWITCH, PVC
32	SWITCH-PRESSURE, #32
33	INSUALTION, FRONT, LOWER, SOUND PROOF
34	CROSS PIECE, FRONT, LOWER
35	BOX, JUNCTION, REAR
36	BOX, JUNCTION, FRONT
38	O RING, MTG SCREW, (2), FOR TOE PLATE
40	TOE PLATE, ADJUSTABLE, BLACK
41	CLAMP, OTK175
42	5304482406 Frigidaire Dishwasher Valve
43	SCREW, HEX HD TPNG, ST5 X 12, (2)
45	WCI 5304482408
46	HOLDER, LEVELING FOOT, (4)
47	CROSS PIECE, BACK, LOWER
48	BRACKET, MOTOR SUPPORT
50	CROSS PIECE, BACK, UPPER
51	BLOCK, BRACING, (2)
52	WCI 5304482414
53	GASKET, TUB
55	WCI 5304482417
57	5304522737 Frigidaire Dishwasher Tubing
58	CLAMP, HOSE, 12.9 X 1.8
59	COVER, (2)
60	SPRAY ARM ASSEMBLY, UPPER
62	NUT, SPRAY ARM, UPPER
