FDB2410HIC2A 04 – MOTOR AND PUMP

FDB2410HIC2A 04 – MOTOR AND PUMP

Written by

in

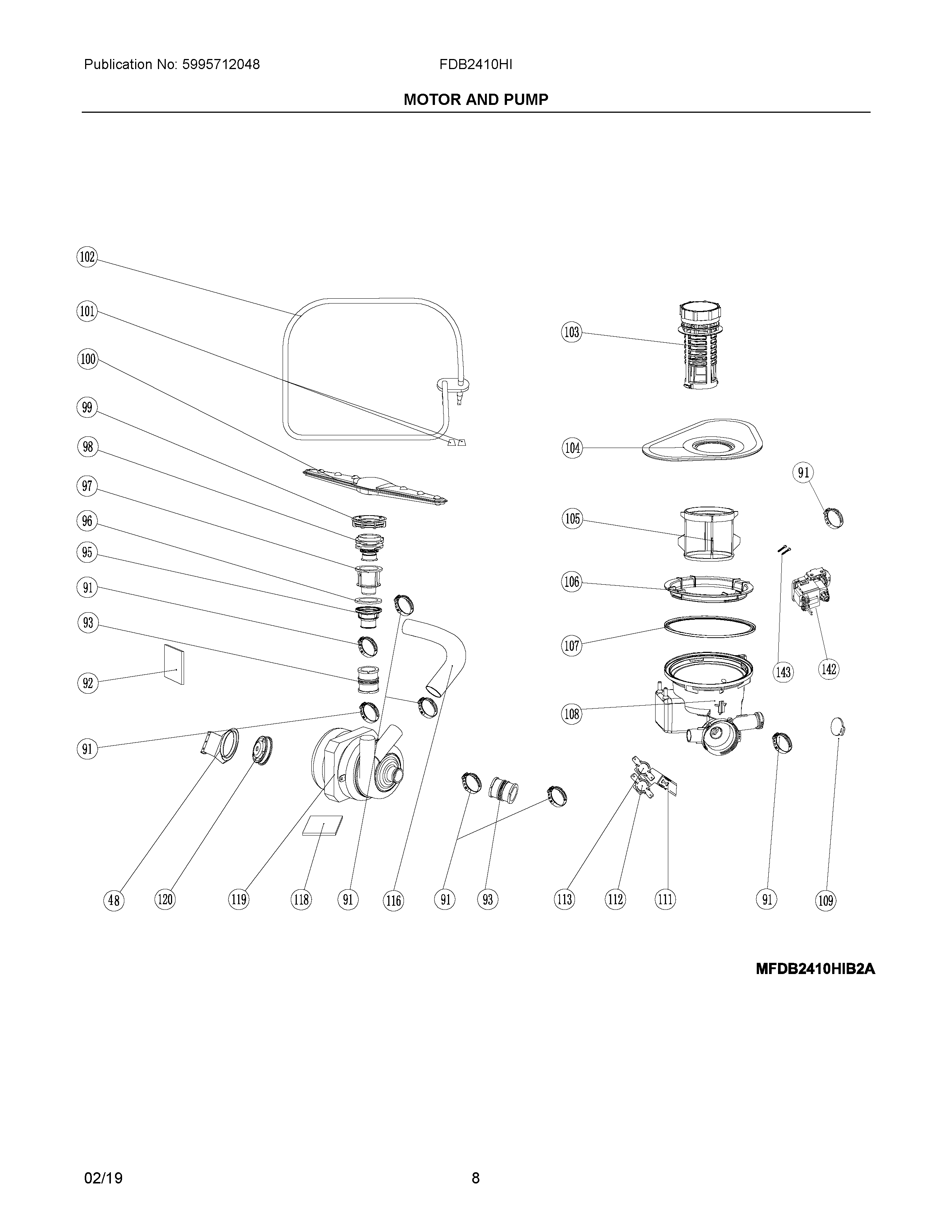

FDB2410HIC2A 04 – MOTOR AND PUMP

Products

PositionProduct
48BRACKET, MOTOR SUPPORT
915304482453 Frigidaire Dishwasher Clamp
92BRACKET, CAPACITANCE
93DUCT, CONNECTING, (2)
95SUPPORT, MANIFOLD, LOWER
96O RING, MANIFOLD, 38 X 2.4
97TIE-IN, INNER
98AXIS ASSEMBLY, SPRAY ARM, LOWER
99NUT, SPRAY ARM, LOWER
100SPRAY ARM, ASSEMBLY, LOWER
101CASING, HAETING ELEMENT, (2)
102ELEMENT-HEATING, ASMY
103FILTER ASSEMBLY
104FILTER ASSEMBLY, SCREEN, STAINLESS
105FILTER ASSEMBLY, MICRO
106NUT, SUMP MTG.
107WCI 5304482467
108SUMP ASSEMBLY
1095304482469 Frigidaire Dishwasher Flapper
111BRACKET, THERMOSTAT
112THERMISTOR
113THERMOSTAT, 90
116DUCT, CONNECTING, EXTERNAL PIPE
118COVER, PUMP
1195304482475 Frigidaire Dishwasher Pump Assembly
120PAD, MOTOR VIBRATION
1425304483444 Frigidaire Dishwasher Pump
143WCI 5304482501
