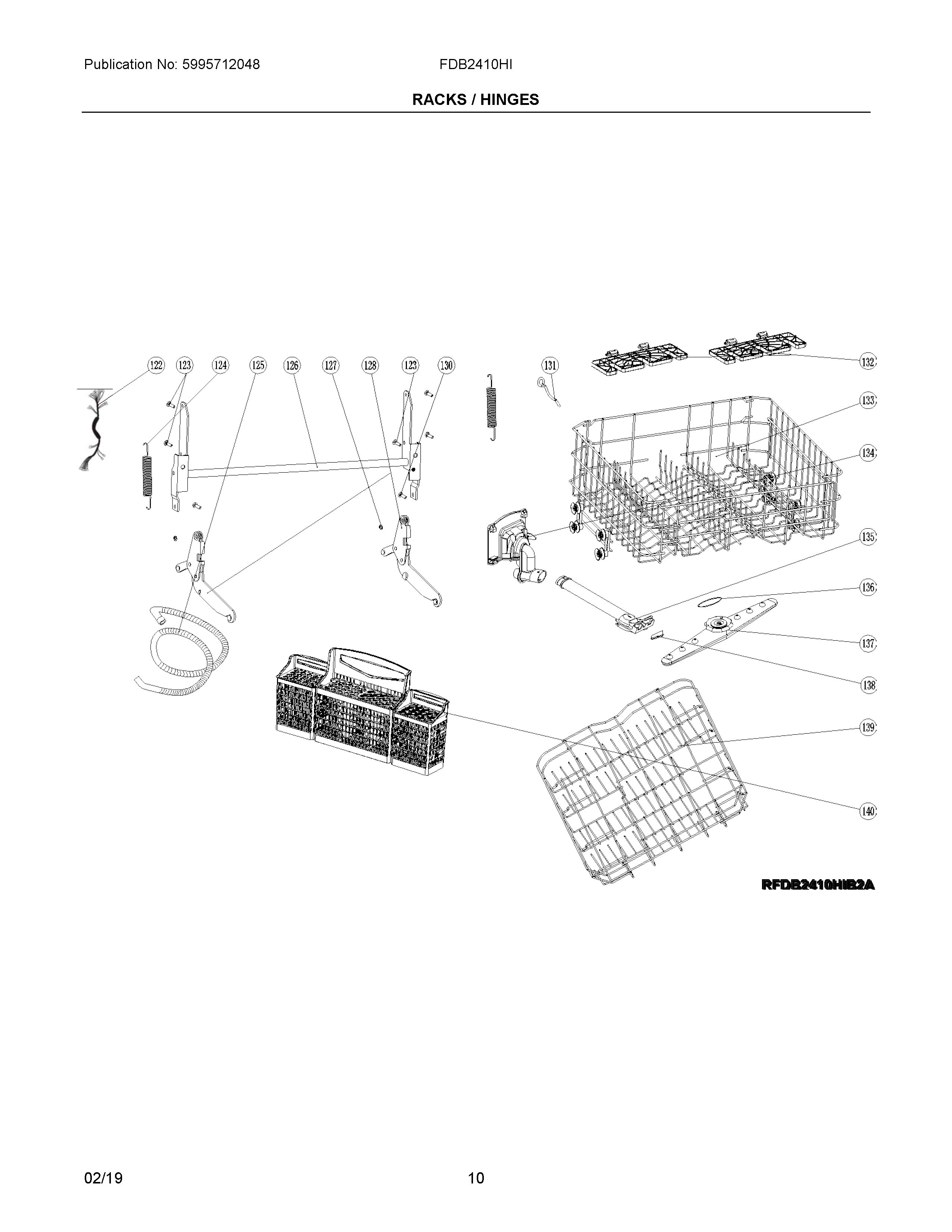

FDB2410HIC2A 05 – RACKS / HINGES

FDB2410HIC2A 05 – RACKS / HINGES

Written by

in

FDB2410HIC2A 05 – RACKS / HINGES

Products

PositionProduct
122HARNESS, WIRING, MAIN, LEAD GROUP
123SCREW, REC, M5 X 6, (5)
124SPRING, DOOR, (2)
125HOSE, DRAIN
126HINGE ASSEMBLY, DOOR
127RING, CLAMPING, (2)
128AWCI 5304482484
128WCI 5304482483
130PIN, HINGE JOINT, (2)
131BOLT, DOOR SPRING, (2)
132SHELF, CUP, (2)
133RACK ASSEMBLY, UPPER
134DELIVERY ASSEMBLY, SPRAY ARM, MIDDLE
135DELIVERY TUBE, SPRAY ARM, MIDDLE
1365304461019 Frigidaire Dishwasher Nut Ring
137SPRAY ARM, ASSEMBLY, MIDDLE
138BLOCK, FASTENER, SPRAY ARM
1395304518472 Frigidaire Dishwasher Rack Assembly
140C5304482498 Frigidaire Dishwasher Silverware Basket, Small Side
140COVER, BASKET, SMALL, RH
140ACOVER, BASKET, SMALL, LH
140BCOVER, BASKET, LARGE, MAIN
