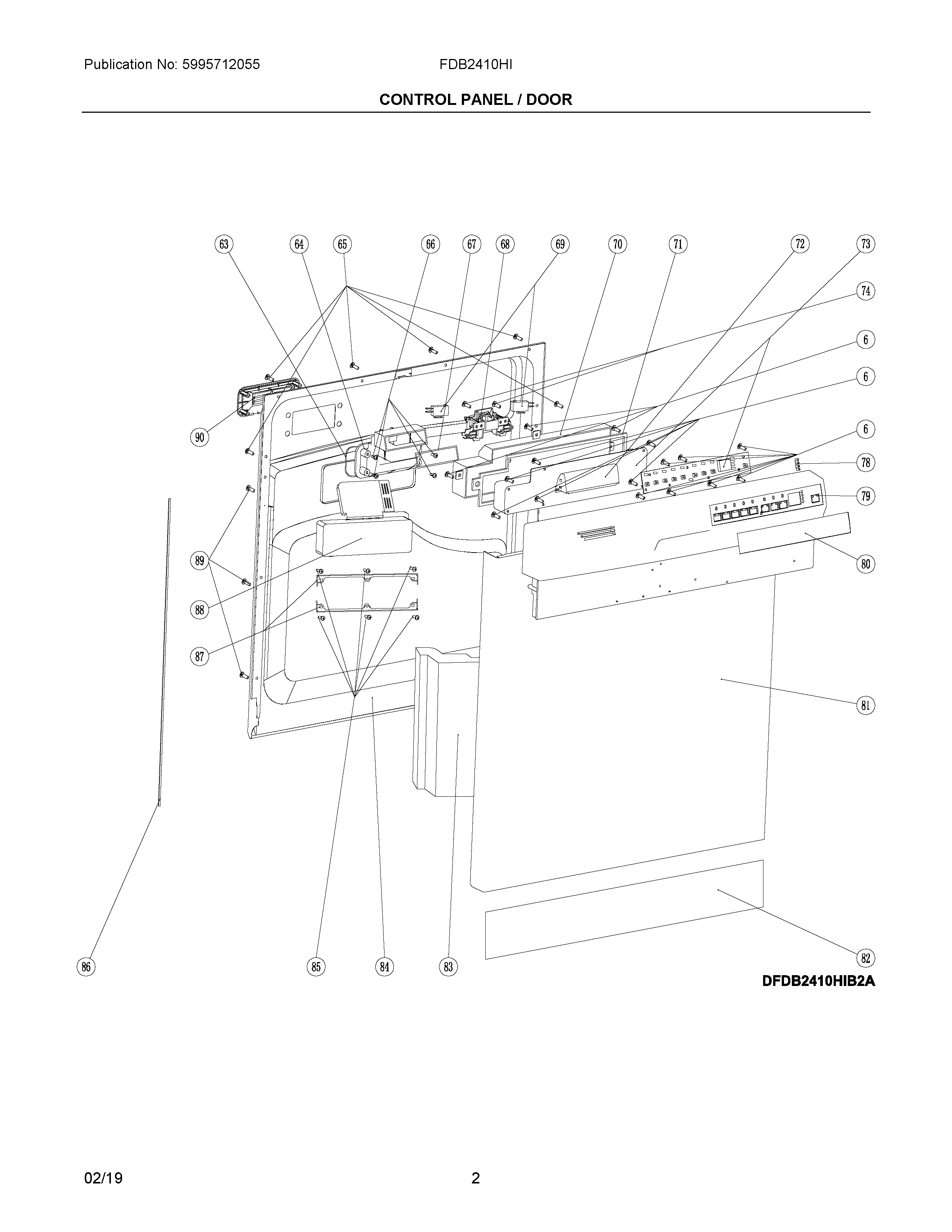

FDB2410HIC3B 02 – CONTROL PANEL / DOORadmin2025-04-26T09:00:04+00:00FDB2410HIC3B 02 – CONTROL PANEL / DOOR
Products
| Position | Product |
|---|
| 6 | SCREW, ST3.5 X 9, (4) |
| 63 | GASKET, VENT, TO DOOR LINER |
| 64 | VENT ASSEMBLY, DOOR |
| 65 | SCREW, REC TAP, ST3.5 X 18, (6) |
| 66 | SCREW, DISPENSER MTG., (6) |
| 67 | GASKET, VENT, TO CONSOLE |
| 68 | WCI 5304512886 |
| 69 | 5304483463 Frigidaire Dishwasher Switch |
| 70 | COVER, CONTROL BOARD |
| 71 | SEAL, CONTOL COVER |
| 72 | COVER, HANDLE, BLACK |
| 73 | WCI 5304522738 |
| 74 | SCREW, REC TAP, ST3.5 X 12, (2) |
| 78 | LENS COVER, LED LIGHTS |
| 79 | CONSOLE ASSEMBLY, BLACK |
| 80 | INSERT, CONSOLE PANEL, BLACK |
| 81 | 5304482442 Frigidaire Dishwasher Door |
| 82 | INSULATION, DOOR INNER, SOUND PROOF |
| 83 | INSULATION, DOOR INNER, POLYSTYRENE |
| 84 | LINER, DOOR, INNER |
| 86 | WCI 5304482448 |
| 87 | BRACKET, DISPENSER MTG., (2) |
| 88 | 5304509278 Frigidaire Dishwasher Dispenser |
| 89 | SCREW, REC TAP, ST3.5 X 13, (6) |
| 90 | COVER, DOOR VENT |
