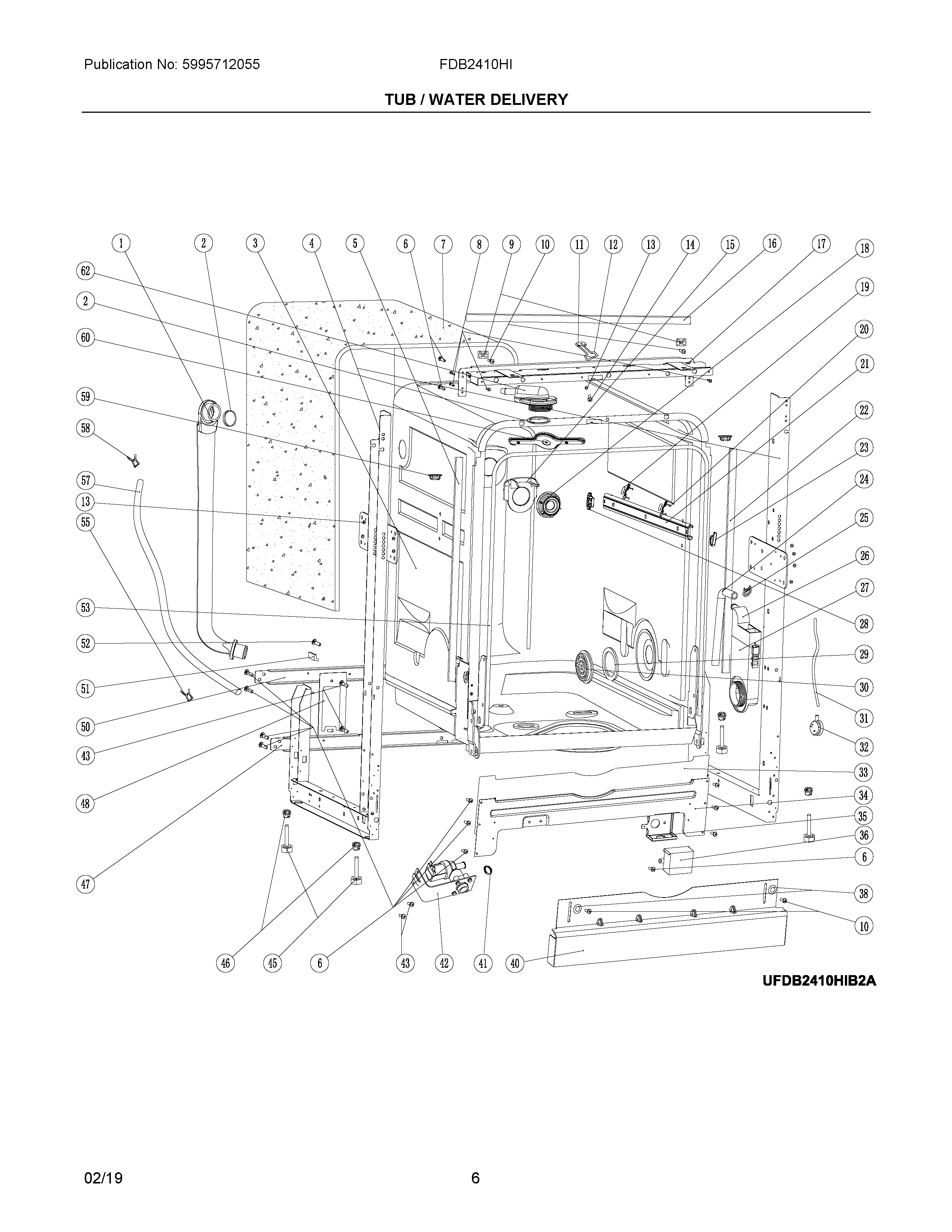

FDB2410HIC3B 03 – TUB / WATER DELIVERY

Products

Position	Product
NIA	FASTENER, TUB GASKET, BOTTOM, (2)
1	WCI 5304522729
2	O RING, DELIVERY TUBE, (2)
4A	UPRIGHT ASSEMBLY, RH
4	UPRIGHT ASSEMBLY, LH
5	TUB GUARD, LH, BLACK
6	SCREW, ST3.5 X 9, (4)
7	WCI 5304522730
9	BLOCK, TOP, BLACK, (2)
11	BLOCK, COUPLING, DOOR
12	5304483485 Frigidaire Dishwasher Hook
13	5304482375 Frigidaire Dishwasher Locknut
14	WCI 5304522731
15	CASING, DELIVERY TUBE, INLET
16	TUB GUARD, TOP, BLACK
17	CROSS PIECE, FRONT, BLACK, UPPER
18	NUT, DELIVERY TUBE, INLET
19	WCI 5304522732
20	WCI 5304522733
21	RAIL, RACK GUIDE, (2)
22	TUB GUARD, RH, BLACK
23	5304482388 Frigidaire Dishwasher Front Rail Guide Block
24	5304482389 Frigidaire Dishwasher Hose
25	5304482390 Frigidaire Dishwasher Clamp
26	COVER, WATER TUNNEL
27	TUNNEL, WATER
28	BLOCK, GUIDE RAIL, REAR, (2)
29	GASKET, RING NUT
30	RING NUT
31	HOSE, PREESURE SWITCH, PVC
32	SWITCH-PRESSURE, #32
33	WCI 5304522734
36	BOX, JUNCTION, FRONT
38	O RING, MTG SCREW, (2), FOR TOE PLATE
39	SCREW, REC TAP, ST3.5 X 13, (6)
40	TOE PLATE, ADJUSTABLE, BLACK
41	5304523308 Frigidaire Dishwasher Clamp
42	5304522735 Frigidaire Valve
43	SCREW, HEX HD TPNG, ST5 X 12, (2)
45	FOOT, LEVELING, (4)
46	HOLDER, LEVELING FOOT, (4)
47	CROSS PIECE, BACK, LOWER
48	BRACKET, MOTOR SUPPORT
50	CROSS PIECE, BACK, UPPER
51	BLOCK, BRACING, (2)
53	GASKET, TUB
55	WCI 5304522736
57	5304522737 Frigidaire Dishwasher Tubing
58	CLAMP, HOSE, 12.9 X 1.8
59	COVER, (2)
60	SPRAY ARM ASSEMBLY, UPPER
62	NUT, SPRAY ARM, UPPER
