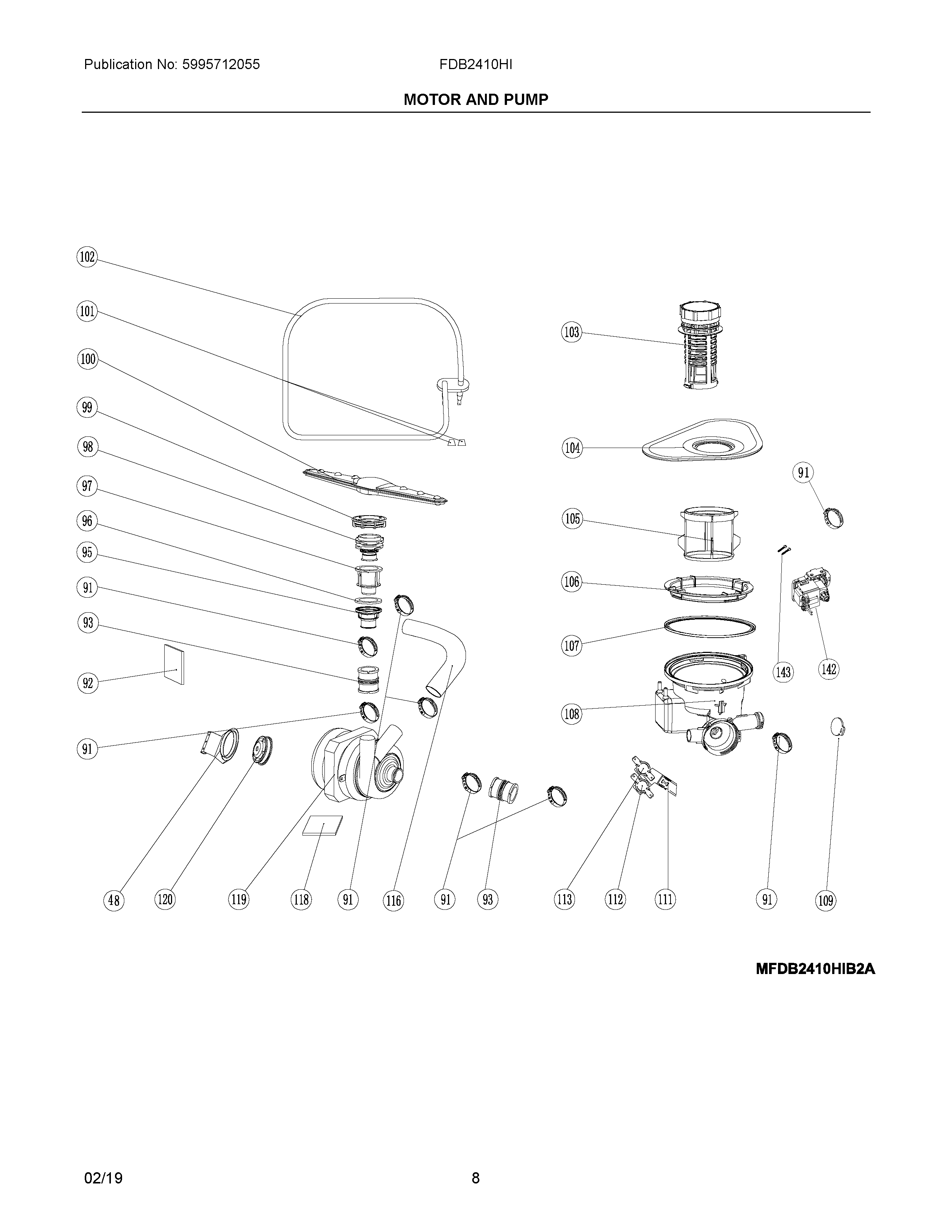

FDB2410HIC3B 04 – MOTOR AND PUMP

FDB2410HIC3B 04 – MOTOR AND PUMP

Written by

in

FDB2410HIC3B 04 – MOTOR AND PUMP

Products

PositionProduct
91WCI 5304522739
935304512129 Frigidaire Dishwasher Duct
95WCI 5304522740
1005304522741 Frigidaire Spray Arm
101CASING, HAETING ELEMENT, (2)
102ELEMENT-HEATING, ASMY
103FILTER ASSEMBLY
104FILTER ASSEMBLY, SCREEN, STAINLESS
105FILTER ASSEMBLY, MICRO
106NUT, SUMP MTG.
1075304512882 Frigidaire Dishwasher Gasket
1085304512883 Frigidaire Dishwasher Sump Assembly
1115304483441 Frigidaire Dishwasher Thermistor
112SENSOR, TURBIDITY
113WCI 5304522742
114DUCT, CONNECTING, (2)
116WCI 5304522743
1195304512880 Frigidaire Dishwasher Pump Assembly
120SUPPORT ASSEMBLY, MOTOR, W/PAD
1425304483444 Frigidaire Dishwasher Pump
143WCI 5304482501
