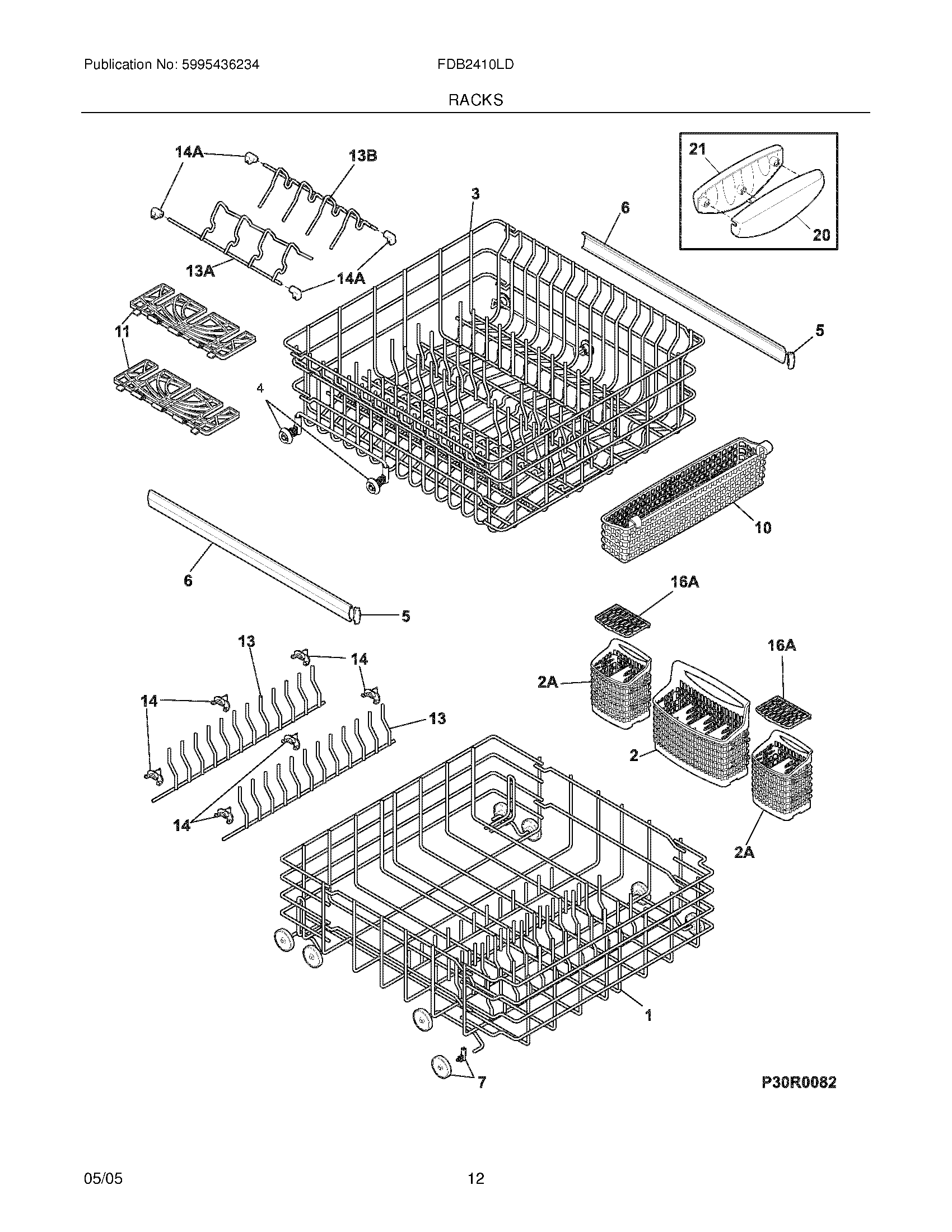

FDB2410LDB1 13 – RACKS

Products

PositionProduct
15304532969 Frigidaire Rack Assembly
25304535382 Frigidaire Basket Assembly
3WCI 154319526
4154522902 Frigidaire Dishwasher Wheel and Bushing Assembly
55304506510 Frigidaire Dishrack Slide Rail Stop/Endcap
6UPPER RACK SLIDE
75304532229 Frigidaire Dishwasher Lower Rack Wheel & Bushing Assembly
10WCI 154466902
11CUP SHELF
135304534829 Frigidaire Dishwasher Guard
13A154740304 Frigidaire Dishwasher Fold-Down Tine Row Fence
14154428402 Frigidaire Bracket
14A5304506508 Frigidaire Bracket Support
14AWCI 154242102
16AWCI 154424303
20WCI 154530702
215304504913 Frigidaire Dishwasher Handle
