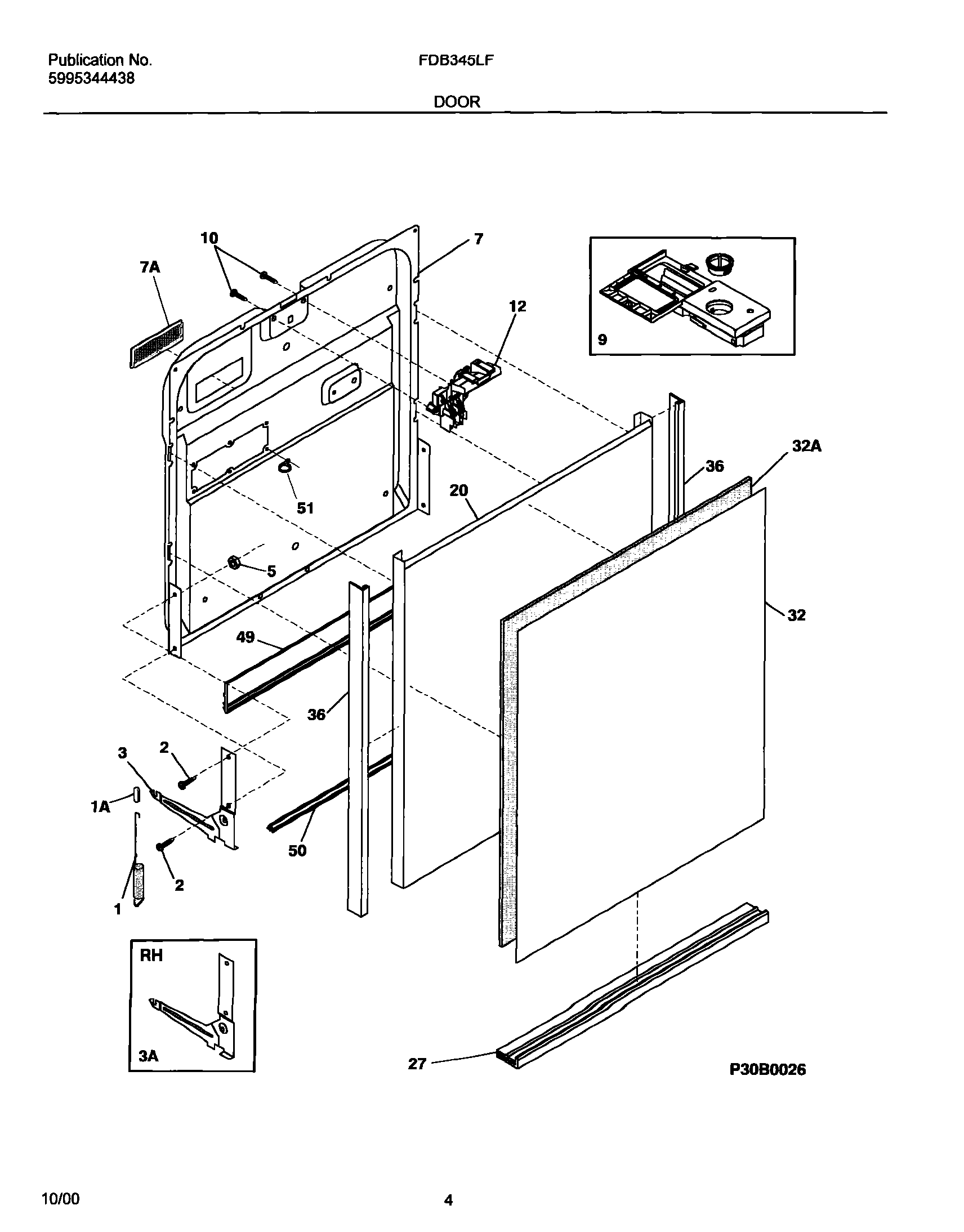

FDB345LFS1 05 – DOOR

Products

Position	Product
NI	WCI 154227806
NI	PIN-ARM (NOT ILLUSTRATED)
1A	154325201 Frigidaire Linkage Spring
1	154430501 Frigidaire Dishwasher Door Spring
2	154093301 Frigidaire Dishwasher ARM Assembly Screw
3A	5304409912 Frigidaire Dishwasher P-1 Right Hinge
5	5303013272 Frigidaire Oven Nut
7	WCI 154299002
7A	WCI 154226601
9	154294701 Frigidaire Dishwasher Screw
9	154574401 Frigidaire Dishwasher Dispenser
10	154103702 Frigidaire Dishwasher Screw
12	5304442175 Frigidaire Black Door Latch Assembly
20	WCI 154327701
27	WCI 154309501
32	WCI 5303943148
32A	WCI 154229001
36	WCI 154309301
49	809006501 Frigidaire Bottom Seal/Gasket Door
50	WCI 154211401
51	WCI 154320301
