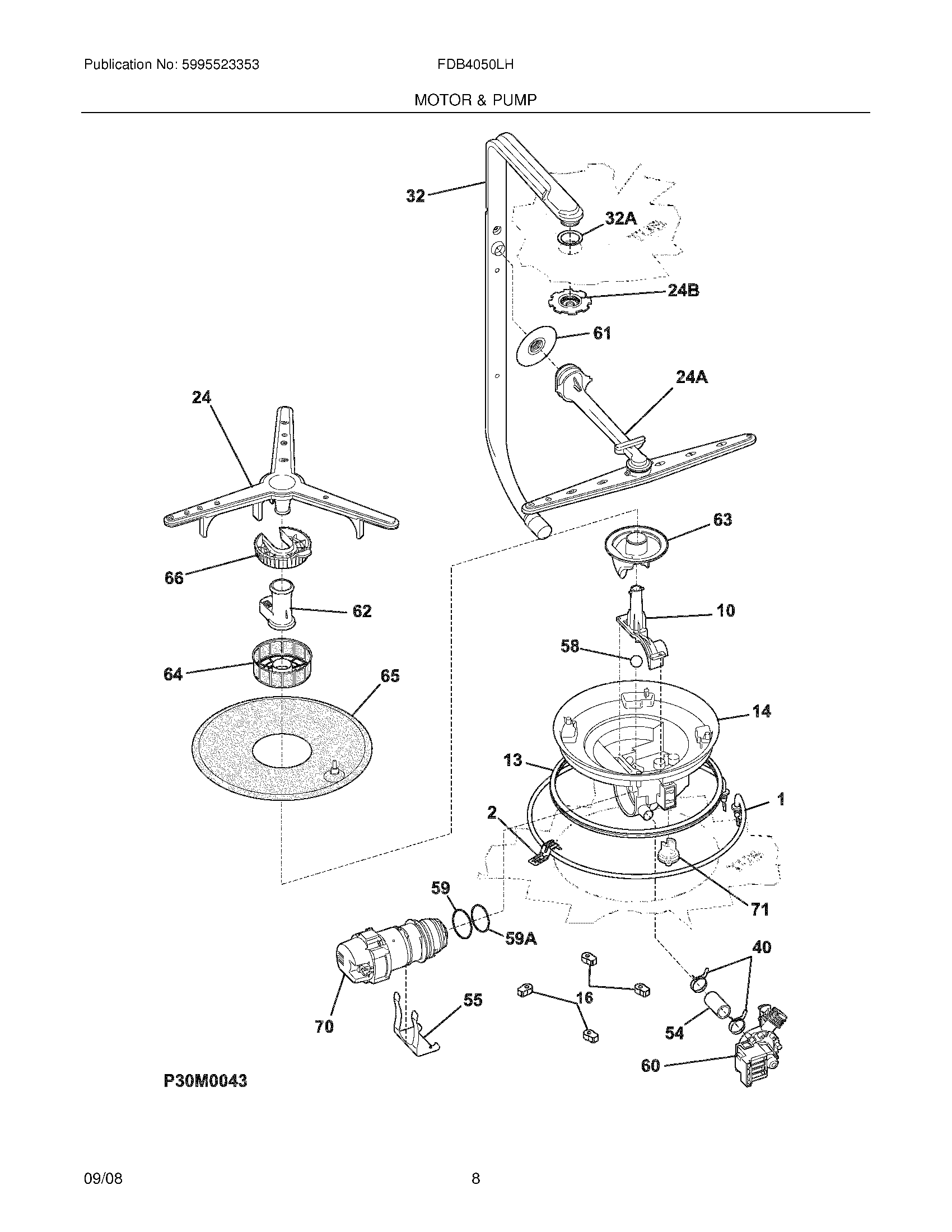

FDB4050LHB1 09 – MOTOR & PUMP

Products

Position	Product
NI	WCI 154200601
NI	154289801 Frigidaire Dishwasher Shield
NI	WCI 5303316032
NI	154491101 Frigidaire Dishwasher Screw
NI	154106202 Frigidaire Dishwasher Heater Nut
NI	WCI 154376001
NI	154380601 Frigidaire Dishwasher Clamp Assembly
1	154825001 Frigidaire Dishwasher Round Heater Heating Element
2	154465101 Frigidaire Dishwasher Heating Element Support Bracket
10	807145201 Frigidaire Dishwasher Cover-Volute
13	154246801 Frigidaire Dishwasher Primary Gasket
14	154461902 Frigidaire Dishwasher Housing
16	154246502 Frigidaire Dishwasher Bracket
24B	WCI 154520601
24	154608102 Frigidaire Spray Arm
24A	A01986801 Frigidaire Upper Rack Assembly
32A	154406401 Frigidaire Delivery Tube Gasket
32	5304507087 Frigidaire Dishwasher Tube
40	154611101 Frigidaire Dishwasher Clamp
54	154757702 Frigidaire Hose
55	5304534830 Frigidaire Dishwasher Bracket
58	154246402 Frigidaire Dishwasher P-1 BALL
59	154246901 Frigidaire Dishwasher Rear O-Ring for 154473001 Motor
59A	154247001 Frigidaire Dishwasher Pump Gasket Seal for the Motor and Front
60	154580301 Frigidaire Drain Pump Assembly
61	5304506517 Frigidaire Dishwasher Grommet Assembly
62	5304518968 Frigidaire Lower Spray Arm Support
63	5304506533 Frigidaire Dishwasher Filter Base
65	154283005 Frigidaire Dishwasher Filter Assembly
66	5304532206 Frigidaire Trap
70	154859201 Frigidaire Dishwasher Pump and Motor Assembly
71	154473901 Frigidaire Dishwasher Sensor
