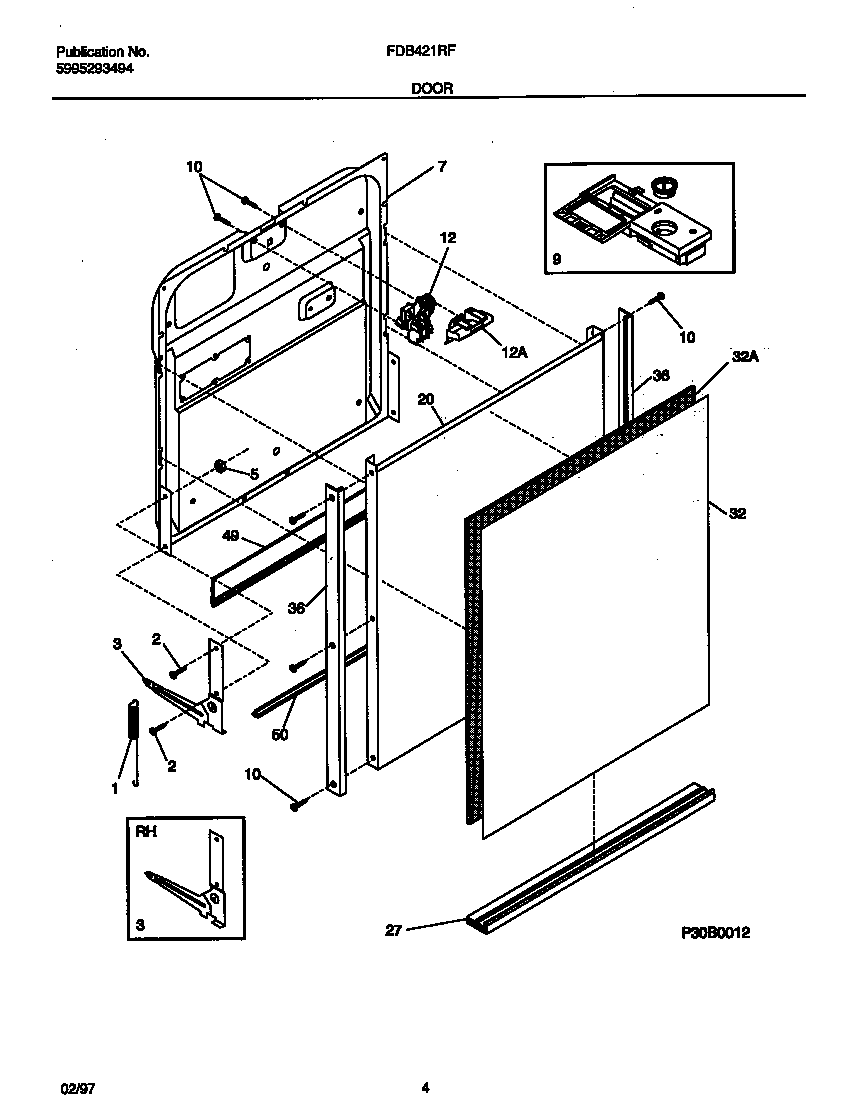

FDB421RFR2 03 – DOOR

Products

Position	Product
*29843	WCI 154200601
*29844	SCREW-8 X 5/8“ (2)
1	154430501 Frigidaire Dishwasher Door Spring
2	154093301 Frigidaire Dishwasher ARM Assembly Screw
3D	WCI 154298101
3C	PIN-ARM (NOT ILLUSTRATED)
3A	5304409912 Frigidaire Dishwasher P-1 Right Hinge
5	5303013272 Frigidaire Oven Nut
7	WCI 154299002
9	154574401 Frigidaire Dishwasher Dispenser
10	154419403 Frigidaire Dishwasher Screw
12A	5304442175 Frigidaire Black Door Latch Assembly
12C	SCREW-LATCH MTG, (2) (NOT ILLUSTRATED)
12B	154103702 Frigidaire Dishwasher Screw
20	WCI 154210601
27	WCI 154257603
32	WCI 154229101
32	WCI 154229001
32	WCI 154229102
36	WCI 154254203
49	809006501 Frigidaire Bottom Seal/Gasket Door
50	WCI 154211401
