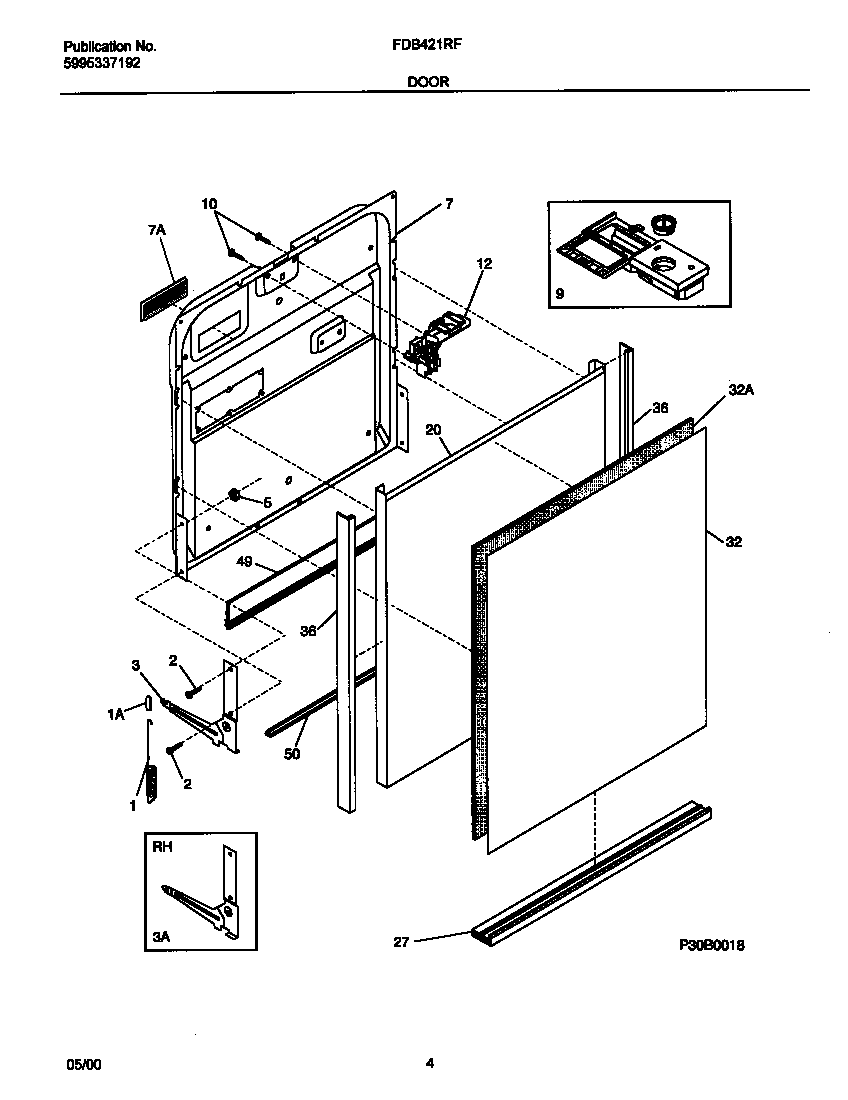

FDB421RFR5 03 – DOOR

FDB421RFR5 03 – DOOR

Written by

in

FDB421RFR5 03 – DOOR

Products

PositionProduct
*89365154294701 Frigidaire Dishwasher Screw
*89364PIN-ARM (NOT ILLUSTRATED)
*89368WCI 154320301
*89366WCI 154200601
*89367WCI 154227808
1154430501 Frigidaire Dishwasher Door Spring
1154325201 Frigidaire Linkage Spring
2154093301 Frigidaire Dishwasher ARM Assembly Screw
35304409912 Frigidaire Dishwasher P-1 Right Hinge
55303013272 Frigidaire Oven Nut
7WCI 154226601
7WCI 154299002
9154574401 Frigidaire Dishwasher Dispenser
10SCREW-LATCH MTG, (2) (NOT ILLUSTRATED)
125304442175 Frigidaire Black Door Latch Assembly
20WCI 154327701
27WCI 154257603
32WCI 5303943148
32WCI 154229001
36WCI 154254203
49809006501 Frigidaire Bottom Seal/Gasket Door
50WCI 154211401
