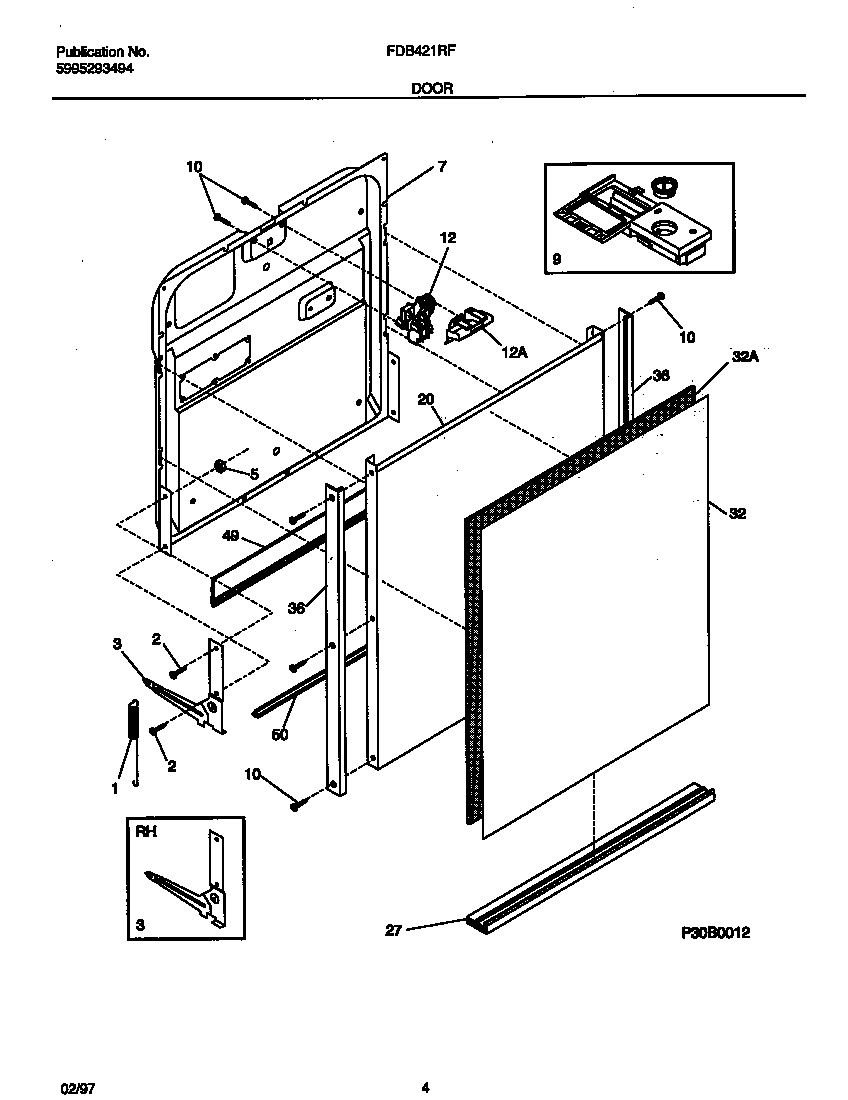

FDB421RFS2 03 – DOOR

Products

Position	Product
*29843	WCI 154200601
*29844	SCREW-8 X 5/8“ (2)
1	154430501 Frigidaire Dishwasher Door Spring
2	154093301 Frigidaire Dishwasher ARM Assembly Screw
3D	WCI 154298101
3C	PIN-ARM (NOT ILLUSTRATED)
3A	5304409912 Frigidaire Dishwasher P-1 Right Hinge
5	5303013272 Frigidaire Oven Nut
7	WCI 154299002
9	154574401 Frigidaire Dishwasher Dispenser
10	154419403 Frigidaire Dishwasher Screw
12A	5304442175 Frigidaire Black Door Latch Assembly
12C	SCREW-LATCH MTG, (2) (NOT ILLUSTRATED)
12B	154103702 Frigidaire Dishwasher Screw
20	WCI 154210601
27	WCI 154257601
32	WCI 154229001
32	WCI 154229101
36	WCI 154254201
49	809006501 Frigidaire Bottom Seal/Gasket Door
50	WCI 154211401
