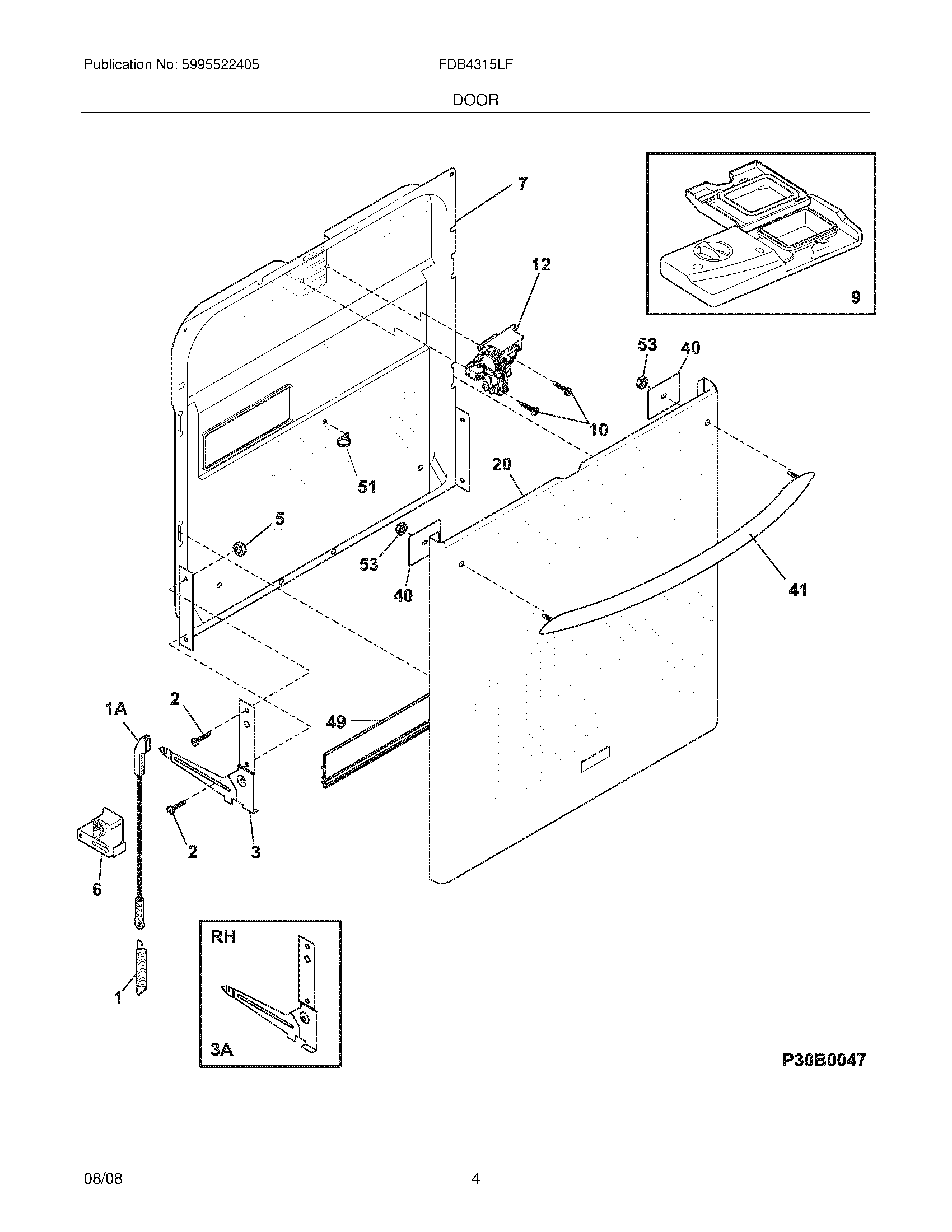

FDB4315LFB3 05 – DOOR

Products

Position	Product
NI	154294701 Frigidaire Dishwasher Screw
NI	WCI 154200601
NI	154686401 Frigidaire Dishwasher Bearing
NI	154647101 Frigidaire Dishwasher Pin Hinge
NI	WCI 5304428306
NI	808326801 Frigidaire Dishwasher Screw
1	154579101 Frigidaire Dishwasher Door Spring
1A	154756401 Frigidaire Hinge Cable
2	154093301 Frigidaire Dishwasher ARM Assembly Screw
3A	5304513274 Frigidaire Dishwasher Counterbalance Arm Left Right
5	5303013272 Frigidaire Oven Nut
6	154579201 Frigidaire Dishwasher Pulley
6	154579202 Frigidaire Dishwasher Pulley
7	WCI 154687902
9	5304507354 Frigidaire Dishwasher Dispenser
10	154103702 Frigidaire Dishwasher Screw
12	5304525218 Frigidaire Door Latch Assembly
20	WCI 154580707
40	WCI 154585001
41	WCI 154543703
49	809006501 Frigidaire Bottom Seal/Gasket Door
51	WCI 154320301
53	154425001 Frigidaire Dishwasher Nut
