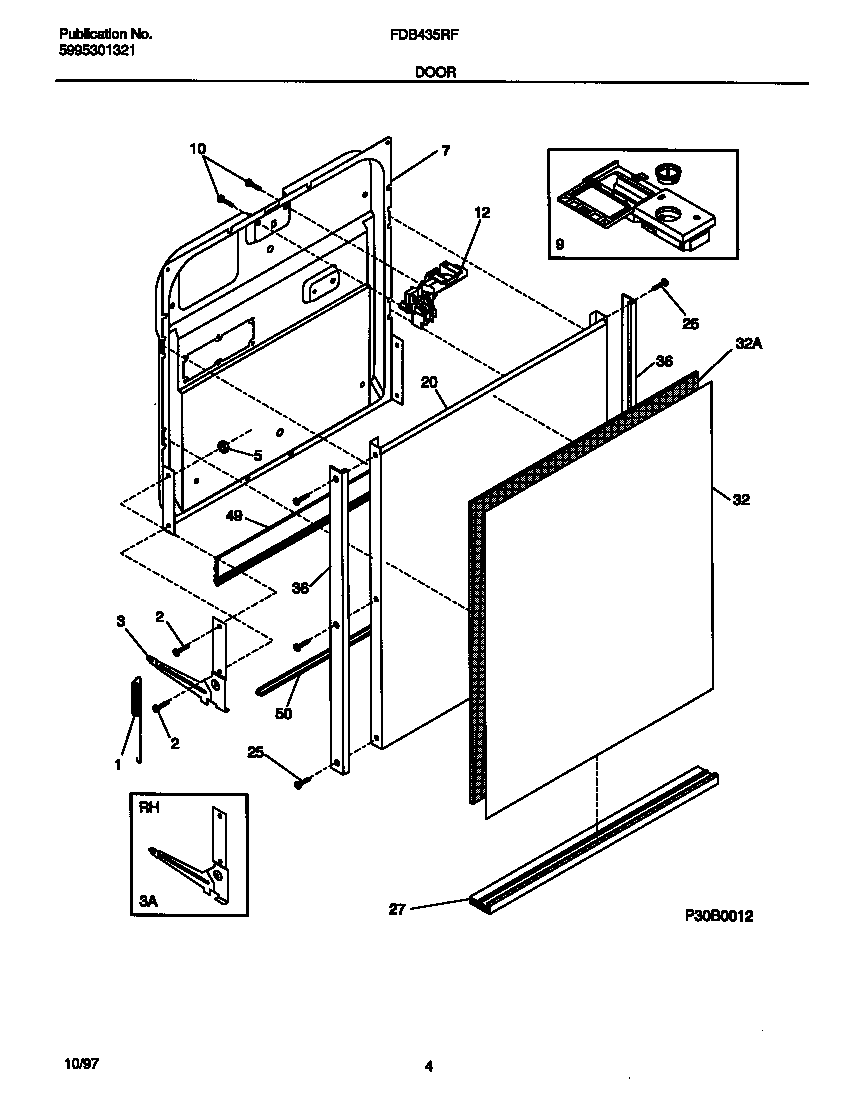

FDB435RFR3 03 – DOOR

Products

Position	Product
*57807	WCI 154298101
*57808	WCI 154200601
*57806	PIN-ARM (NOT ILLUSTRATED)
*57809	SCREW-8 X 5/8“ (2)
*57810	154419403 Frigidaire Dishwasher Screw
1	154430501 Frigidaire Dishwasher Door Spring
2	154093301 Frigidaire Dishwasher ARM Assembly Screw
3	5304409912 Frigidaire Dishwasher P-1 Right Hinge
5	5303013272 Frigidaire Oven Nut
7	WCI 154299002
9	154574401 Frigidaire Dishwasher Dispenser
10	SCREW-LATCH MTG, (2) (NOT ILLUSTRATED)
12	5304442175 Frigidaire Black Door Latch Assembly
20	WCI 154210601
25	WCI 5300809055
27	WCI 154257603
32	WCI 154229001
32	WCI 5303943148
36	WCI 154254203
49	809006501 Frigidaire Bottom Seal/Gasket Door
50	WCI 154211401
