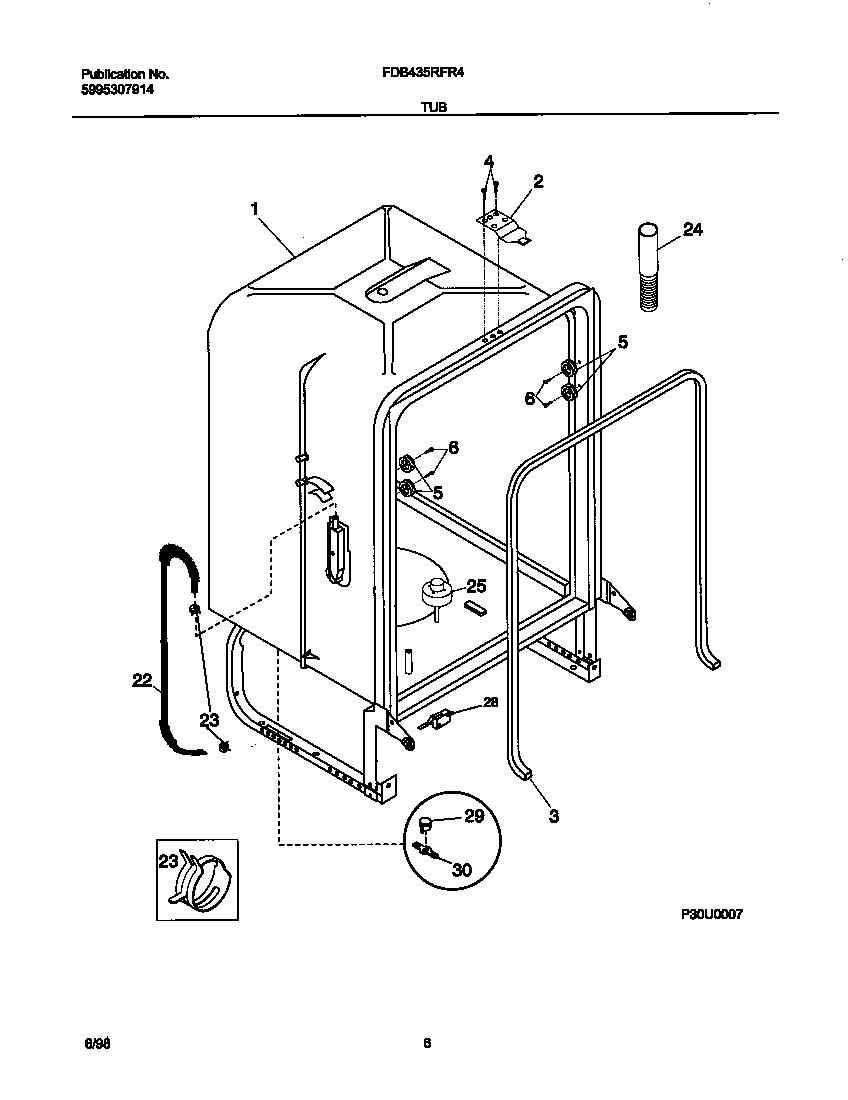

FDB435RFR4 04 – TUB

FDB435RFR4 04 – TUB

Written by

in

FDB435RFR4 04 – TUB

Products

PositionProduct
*80652808690701 Frigidaire Dishwasher Screw
*80649154200701 Frigidaire Dishwasher Screw
*80650FLOAT SWITCH ASSY
*80651154297701 Frigidaire Dishwasher Screw
1WCI 154209301
2154662601 Frigidaire Door Strike Latch
3154827601 Frigidaire Dishwasher Tub Gasket
4WCI 5300807270
55304507405 Frigidaire Dishwasher Gray Tub Dishrack Roller
65303943103 Frigidaire Dishwasher P-1 Screw Kit (8 Each Wash/Screw)
225304523457 Frigidaire Inlet Hose
23CLAMP, HOSE
24154225602 Frigidaire Dishwasher Drain Hose, 10' Long
255304506520 Frigidaire Dishwasher Float Assembly
28WCI 154225501
29154290204 Frigidaire Dishwasher Thermostat
30154241101 Frigidaire Dishwasher Retainer
