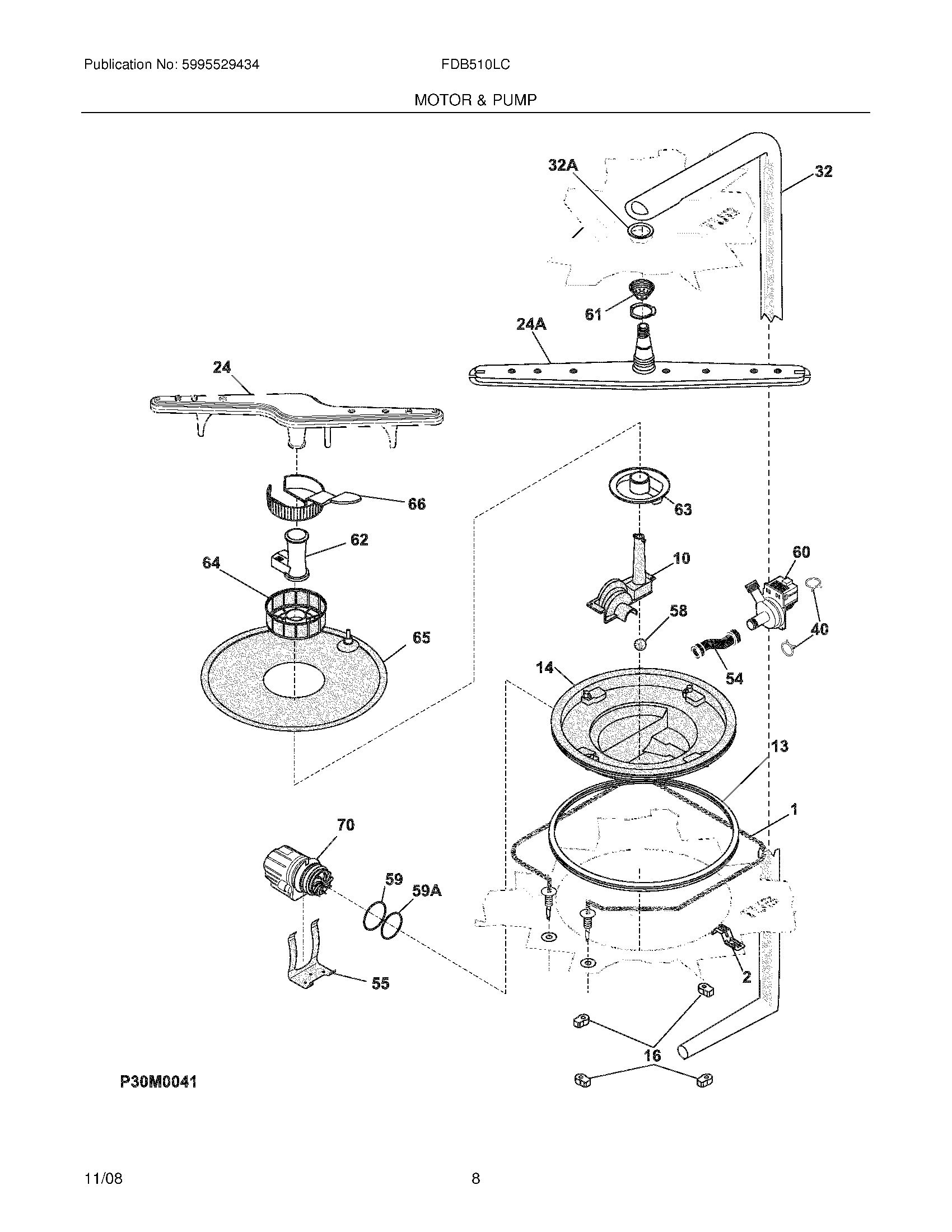

FDB510LCS6 09 – MOTOR & PUMP

Products

Position	Product
NI	WCI 154426201
NI	154581501 Frigidaire Dishwasher Screw
NI	154611101 Frigidaire Dishwasher Clamp
NI	WCI 154200601
NI	154380601 Frigidaire Dishwasher Clamp Assembly
NI	154289801 Frigidaire Dishwasher Shield
NI	154106202 Frigidaire Dishwasher Heater Nut
NI	WCI 5303316032
1	154665201 Frigidaire Dishwasher Heater
2	WCI 154479601
10	807145201 Frigidaire Dishwasher Cover-Volute
13	154246801 Frigidaire Dishwasher Primary Gasket
14	WCI 154365902
16	154246502 Frigidaire Dishwasher Bracket
24A	154313601 Frigidaire Dishwasher Control Arm P1
24	5304517203 Frigidaire Dishwasher Lower Wash Arm Assembly
24A	WCI 154252001
32	WCI 154406601
32A	154406401 Frigidaire Delivery Tube Gasket
40	154348502 Frigidaire Dishwasher Clamp
40	154348401 Frigidaire Dishwasher Clamp
54	154234401 Frigidaire Dishwasher Hose P-1
55	5304534830 Frigidaire Dishwasher Bracket
58	154246402 Frigidaire Dishwasher P-1 BALL
59A	154247001 Frigidaire Dishwasher Pump Gasket Seal for the Motor and Front
59	154246901 Frigidaire Dishwasher Rear O-Ring for 154473001 Motor
60	A00126501 Frigidaire Dishwasher Motor and Drain Pump Assembly
61	WCI 154606801
62	5304518968 Frigidaire Lower Spray Arm Support
63	5304506533 Frigidaire Dishwasher Filter Base
65	5304506525 Frigidaire Dishwasher Filter Assembly
66	154252701 Frigidaire Dishwasher Filter Trap Assembly
70	154844301 Frigidaire Dishwasher Motor Kit
