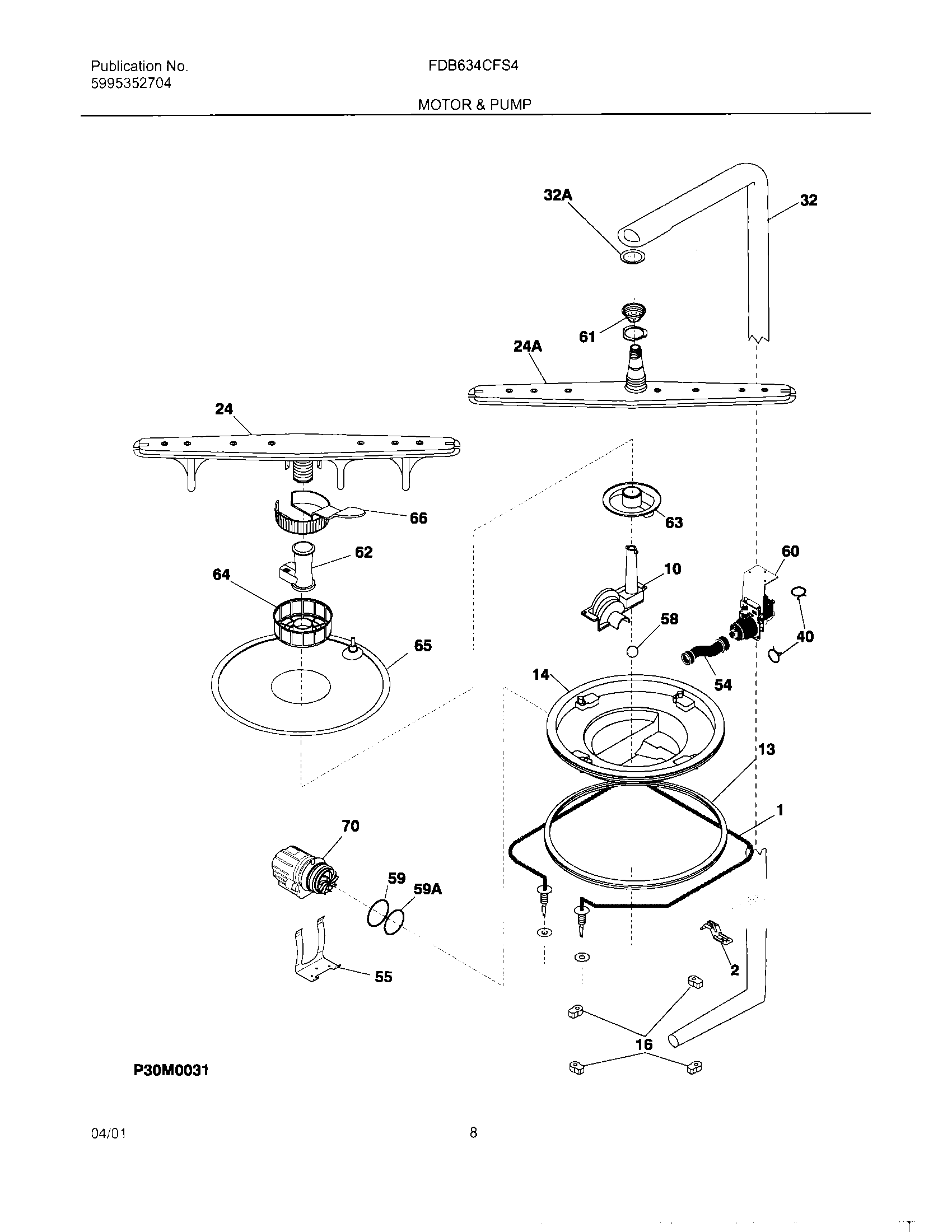

FDB634CFS4 09 – MOTOR & PUMP

Products

Position	Product
NI	WCI 154338601
NI	BRACKET-MOTOR, DRAIN (NOT ILLUSTRATED)
NI	154106202 Frigidaire Dishwasher Heater Nut
NI	154289801 Frigidaire Dishwasher Shield
NI	WCI 5303316032
NI	154611101 Frigidaire Dishwasher Clamp
1	154665201 Frigidaire Dishwasher Heater
2	WCI 154359701
10	807145201 Frigidaire Dishwasher Cover-Volute
13	154246801 Frigidaire Dishwasher Primary Gasket
14	WCI 154365902
16	154246502 Frigidaire Dishwasher Bracket
24	154313601 Frigidaire Dishwasher Control Arm P1
24	5304517203 Frigidaire Dishwasher Lower Wash Arm Assembly
24	WCI 154252001
32	WCI 154251701
32	154406401 Frigidaire Delivery Tube Gasket
40	WCI 154348501
40	154348401 Frigidaire Dishwasher Clamp
54	154234401 Frigidaire Dishwasher Hose P-1
55	5304534830 Frigidaire Dishwasher Bracket
58	154246402 Frigidaire Dishwasher P-1 BALL
59	154246901 Frigidaire Dishwasher Rear O-Ring for 154473001 Motor
59	154247001 Frigidaire Dishwasher Pump Gasket Seal for the Motor and Front
60	WCI 154247502
61	WCI 154359601
62	5304518968 Frigidaire Lower Spray Arm Support
63	5304506533 Frigidaire Dishwasher Filter Base
65	5304506525 Frigidaire Dishwasher Filter Assembly
66	154252701 Frigidaire Dishwasher Filter Trap Assembly
70	MOTOR KIT W HARNESS
