FDB635RFR3 03 – DOOR

FDB635RFR3 03 – DOOR

Written by

in

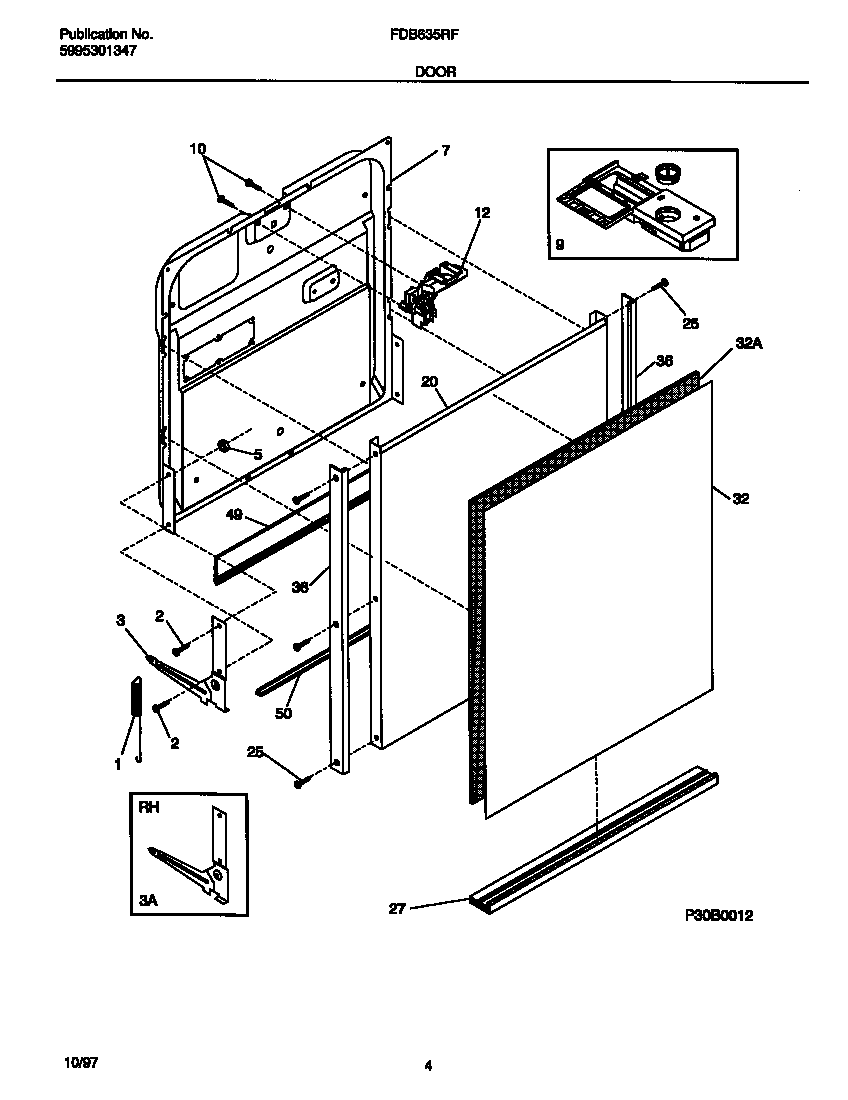

FDB635RFR3 03 – DOOR

Products

PositionProduct
*73366PIN-ARM (NOT ILLUSTRATED)
*73367WCI 154298101
*73368SCREW-8 X 5/8“ (2)
1154430501 Frigidaire Dishwasher Door Spring
2154093301 Frigidaire Dishwasher ARM Assembly Screw
35304409912 Frigidaire Dishwasher P-1 Right Hinge
55303013272 Frigidaire Oven Nut
7WCI 154299002
9154574401 Frigidaire Dishwasher Dispenser
10B154419403 Frigidaire Dishwasher Screw
10ASCREW-LATCH MTG, (2) (NOT ILLUSTRATED)
125304442175 Frigidaire Black Door Latch Assembly
20WCI 154210601
25WCI 154200601
27WCI 154257603
32WCI 154229001
32WCI 5303943148
36WCI 154254203
49809006501 Frigidaire Bottom Seal/Gasket Door
50WCI 154211401
