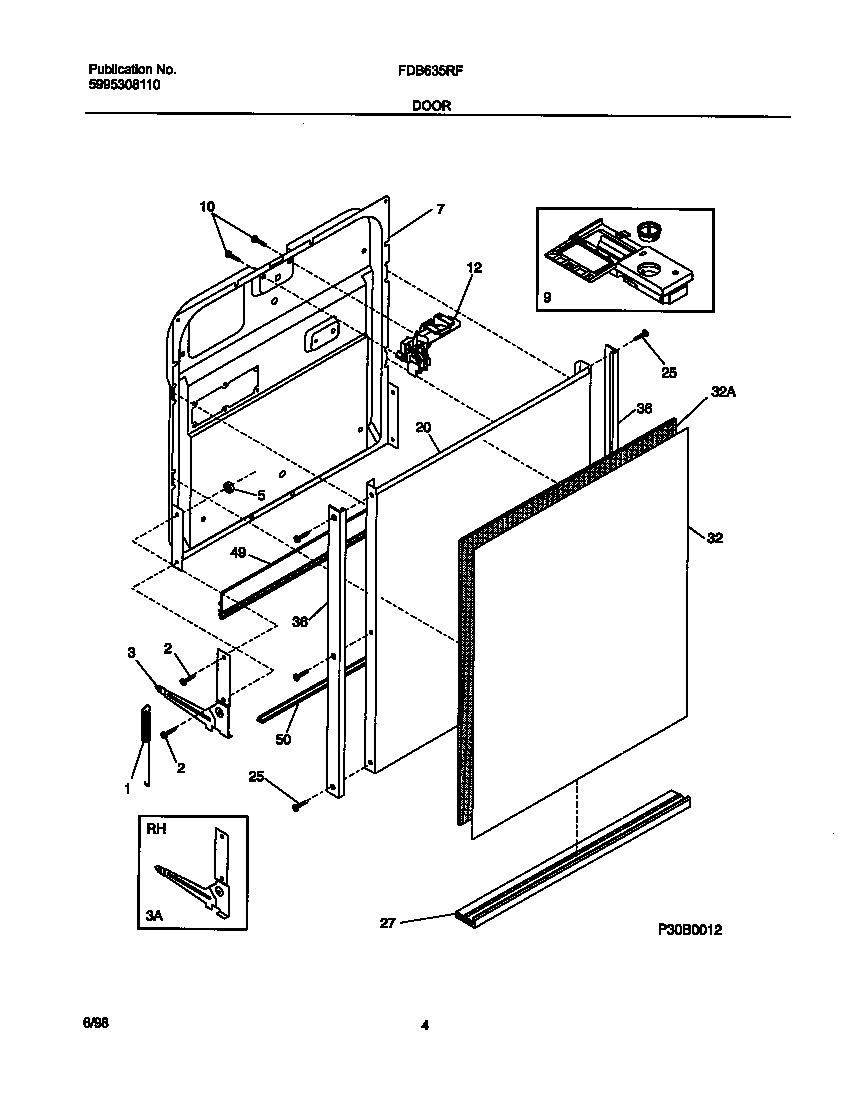

FDB635RFR4 03 – DOOR

Products

PositionProduct
*12692SCREW-8 X 5/8“ (2)
*12690154103702 Frigidaire Dishwasher Screw
*12688PIN-ARM (NOT ILLUSTRATED)
*12691WCI 154200601
*12687154325201 Frigidaire Linkage Spring
*12689154419403 Frigidaire Dishwasher Screw
1154430501 Frigidaire Dishwasher Door Spring
2154093301 Frigidaire Dishwasher ARM Assembly Screw
3A5304409912 Frigidaire Dishwasher P-1 Right Hinge
55303013272 Frigidaire Oven Nut
7WCI 154299002
9154574401 Frigidaire Dishwasher Dispenser
10SCREW-LATCH MTG, (2) (NOT ILLUSTRATED)
125304442175 Frigidaire Black Door Latch Assembly
20WCI 154327701
27WCI 154257603
32WCI 5303943148
32WCI 154229001
36WCI 154254203
49809006501 Frigidaire Bottom Seal/Gasket Door
50WCI 154211401
