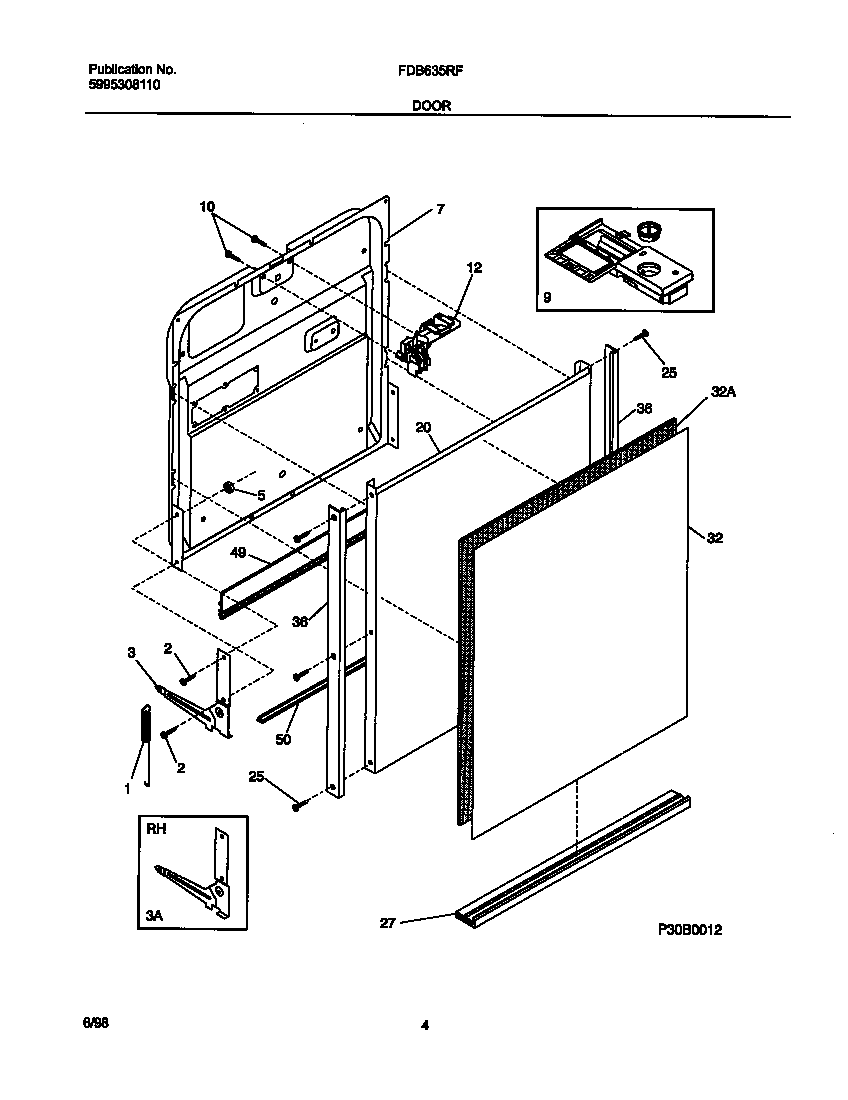

FDB635RFS4 03 – DOOR

Products

Position	Product
*12692	SCREW-8 X 5/8“ (2)
*12690	154103702 Frigidaire Dishwasher Screw
*12688	PIN-ARM (NOT ILLUSTRATED)
*12691	WCI 154200601
*12687	154325201 Frigidaire Linkage Spring
*12689	154419403 Frigidaire Dishwasher Screw
1	154430501 Frigidaire Dishwasher Door Spring
2	154093301 Frigidaire Dishwasher ARM Assembly Screw
3A	5304409912 Frigidaire Dishwasher P-1 Right Hinge
5	5303013272 Frigidaire Oven Nut
7	WCI 154299002
9	154574401 Frigidaire Dishwasher Dispenser
10	SCREW-LATCH MTG, (2) (NOT ILLUSTRATED)
12	5304442175 Frigidaire Black Door Latch Assembly
20	WCI 154327701
27	WCI 154257601
32	WCI 154229001
32	WCI 5303943148
36	WCI 154254201
49	809006501 Frigidaire Bottom Seal/Gasket Door
50	WCI 154211401
