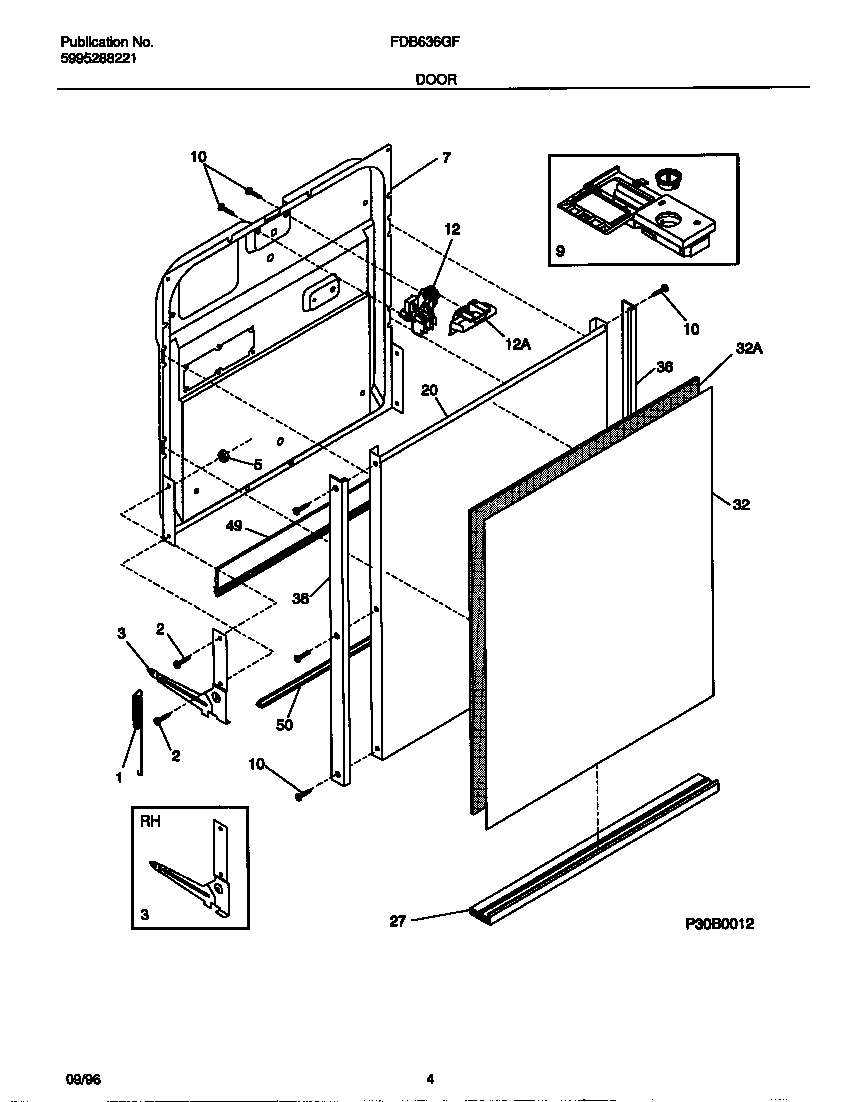

FDB636GFR0 03 – DOOR

FDB636GFR0 03 – DOOR

Written by

in

FDB636GFR0 03 – DOOR

Products

PositionProduct
*47325WCI 154200501
*47327INSULATION,DOOR
*47326WCI 154200601
*47328SCREW-8 X 5/8“ (2)
*47324WCI 5300809055
1154430501 Frigidaire Dishwasher Door Spring
2154093301 Frigidaire Dishwasher ARM Assembly Screw
3CPIN-ARM (NOT ILLUSTRATED)
3A5304409912 Frigidaire Dishwasher P-1 Right Hinge
55303013272 Frigidaire Oven Nut
7WCI 154210501
9154574401 Frigidaire Dishwasher Dispenser
10154419403 Frigidaire Dishwasher Screw
125304442175 Frigidaire Black Door Latch Assembly
20WCI 154210601
27WCI 154257603
32AWCI 154229101
32BWCI 154229102
32WCI 154229001
36WCI 154254203
49WCI 154244701
50WCI 154211401
