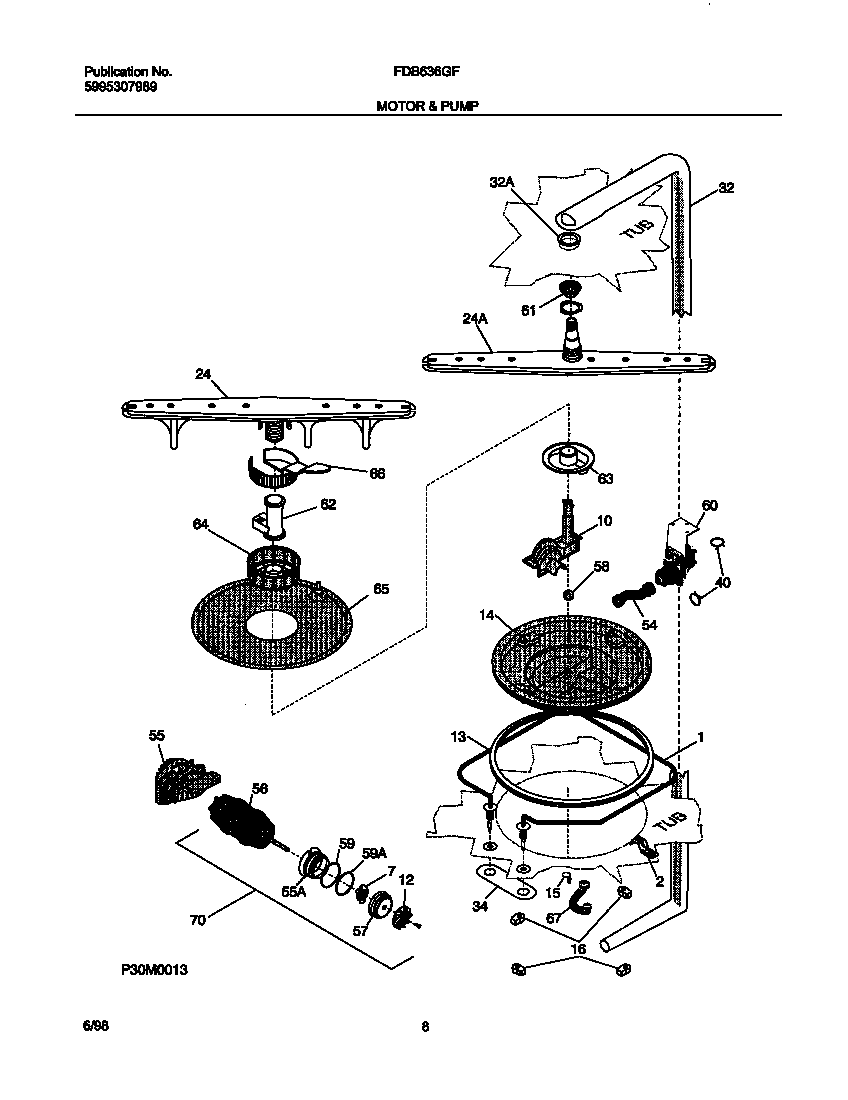

FDB636GFT0 05 – MOTOR AND PUMP

Products

PositionProduct
*34105WCI 154247201
*34106WCI 154247401
*34110WCI 154227806
*34107154754901 Frigidaire Dishwasher Screw
*34097154289801 Frigidaire Dishwasher Shield
*34096154106202 Frigidaire Dishwasher Heater Nut
*34100WCI 154246101
*34101BRACKET-MOTOR, DRAIN (NOT ILLUSTRATED)
*34108WCI 154329001
*34103154241101 Frigidaire Dishwasher Retainer
*34104CLAMP, HOSE
*34102WCI 154200601
*34098SCREW, SS IMPELLER (NOT ILLUSTRATED)
*34109WCI 5303316032
*34099WCI 154252001
1154665201 Frigidaire Dishwasher Heater
2WCI 154322501
7WCI 154245901
10807145201 Frigidaire Dishwasher Cover-Volute
12WCI 154245801
13154246801 Frigidaire Dishwasher Primary Gasket
14WCI 154335403
15WCI 154246701
16154246502 Frigidaire Dishwasher Bracket
24154313601 Frigidaire Dishwasher Control Arm P1
245304517203 Frigidaire Dishwasher Lower Wash Arm Assembly
32WCI 154251701
32WCI 154251601
34WCI 154064901
40154348401 Frigidaire Dishwasher Clamp
40154611101 Frigidaire Dishwasher Clamp
54154234401 Frigidaire Dishwasher Hose P-1
55WCI 154245601
55WCI 154246201
56WCI 154245706
57WCI 154246001
58154246402 Frigidaire Dishwasher P-1 BALL
59154247001 Frigidaire Dishwasher Pump Gasket Seal for the Motor and Front
59154246901 Frigidaire Dishwasher Rear O-Ring for 154473001 Motor
60WCI 154247502
61WCI 154250201
625304518968 Frigidaire Lower Spray Arm Support
635304506533 Frigidaire Dishwasher Filter Base
65WCI 154283004
66154252701 Frigidaire Dishwasher Filter Trap Assembly
67WCI 154246601
68WCI 154227805
70MOTOR & PUMP ASSY,INCLUDES 7, 12 , 55A, 57, 59,,59A
