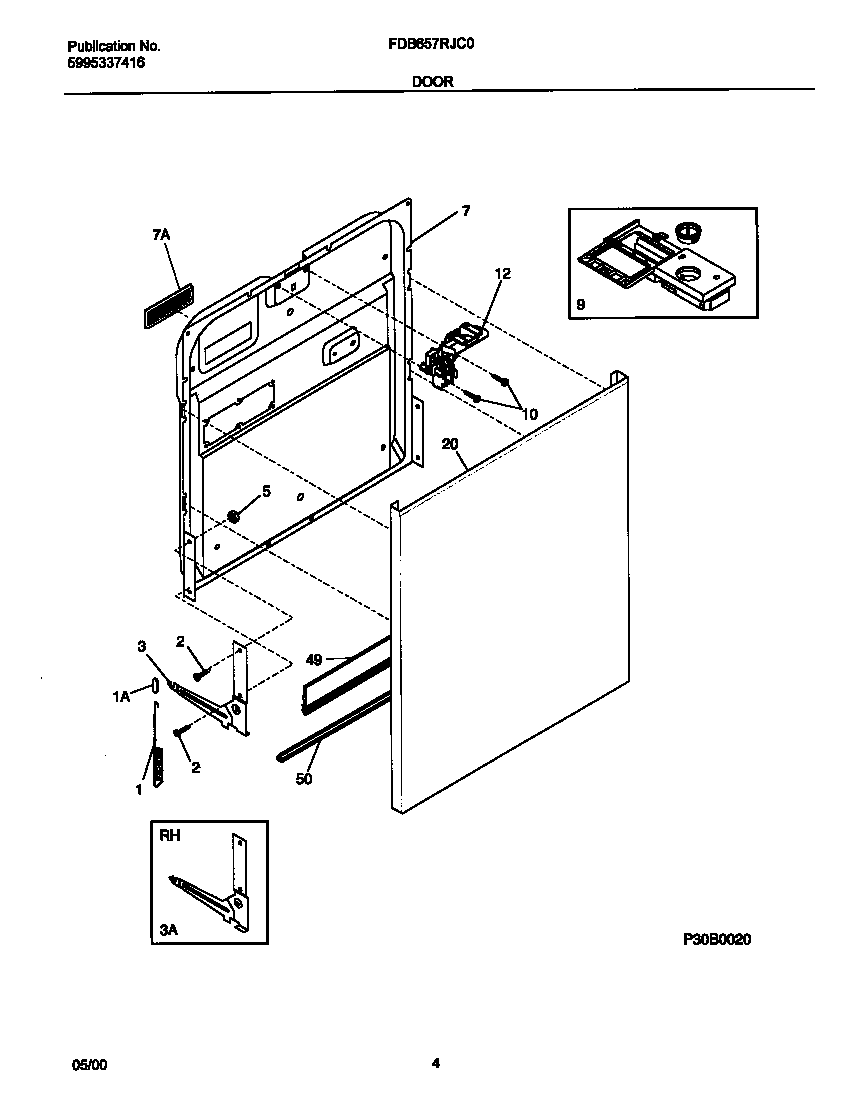

FDB657RJC0 03 – DOOR

Products

Position	Product
*38207	154294701 Frigidaire Dishwasher Screw
*38212	WCI 154213801
*38209	WCI 154227807
*38206	PIN-ARM (NOT ILLUSTRATED)
*38210	WCI 154227808
*38211	INSULATION,DOOR
*38208	WCI 154320301
1	154325201 Frigidaire Linkage Spring
1	154430601 Frigidaire Dishwasher Door Spring
2	154093301 Frigidaire Dishwasher ARM Assembly Screw
3	5304409912 Frigidaire Dishwasher P-1 Right Hinge
5	5303013272 Frigidaire Oven Nut
7	WCI 154299002
7	WCI 154226601
9	154574401 Frigidaire Dishwasher Dispenser
10	154103702 Frigidaire Dishwasher Screw
12	5304442175 Frigidaire Black Door Latch Assembly
20	WCI 154359108
49	809006501 Frigidaire Bottom Seal/Gasket Door
50	WCI 154211401
