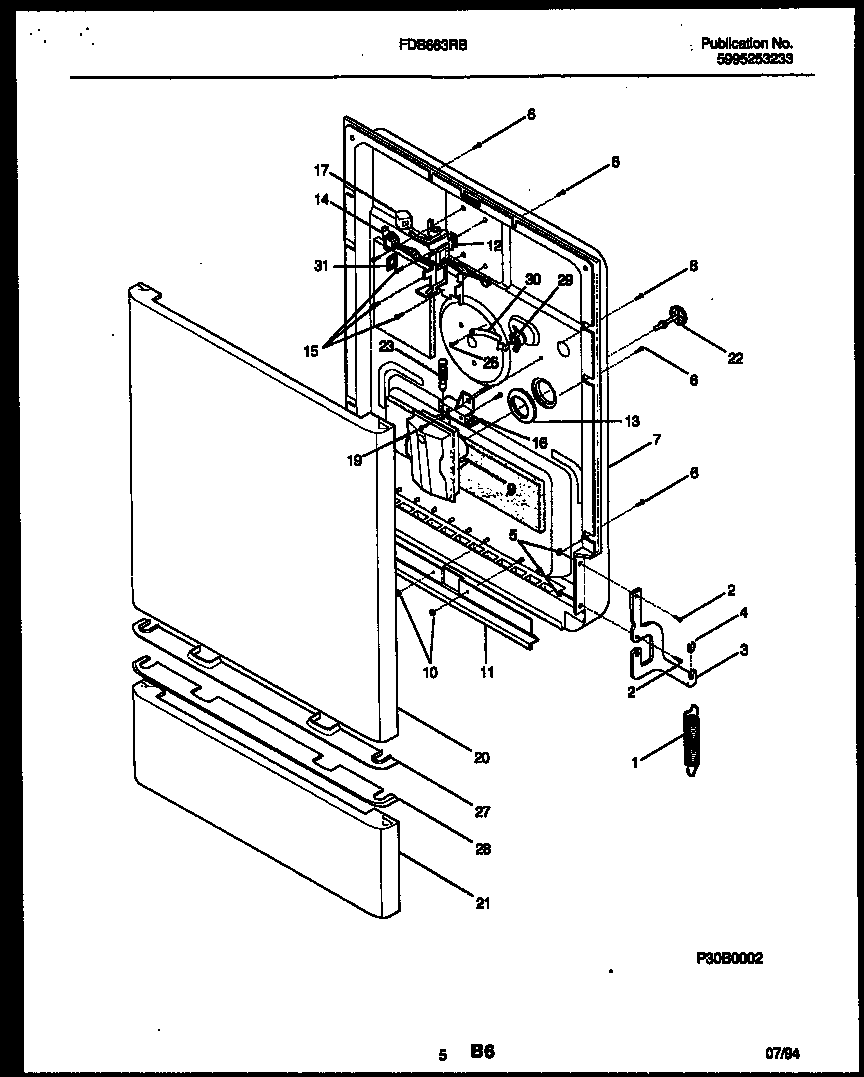

FDB663RBD0 04 – DOOR PARTS

Products

Position	Product
1	5300809703 Frigidaire Dishwasher Door Spring
2	154093301 Frigidaire Dishwasher ARM Assembly Screw
3	WCI 5303270031
4	WCI 5300805884
5	5303013272 Frigidaire Oven Nut
7	WCI 154196902
8	SCREW-8 X 5/8“ (2)
9	WCI 5300806753
10	WCI 154026601
11	WCI 5300809773
12	WCI 154132502
13	WCI 5300805631
14	WCI 154105301
15	218781101 Frigidaire Handle Screw
16	WCI 5300809782
17	WCI 5300808712
19	WCI 5300807501
20	DOOR-PANEL-ALMOND
21	ACCESS-PANEL-ALMOND
22	WCI 5303943094
23	WCI 5300809898
25	154419403 Frigidaire Dishwasher Screw
27	WCI 154189402
28A	CLIP-ATTACH (4) (NON-ILLUSTRATED)
28	TRIM-ACCESS TOP-ALMOND
29	WCI 5303297402
30	THERMOSTAT RETAINER
31	WCI 154142901
