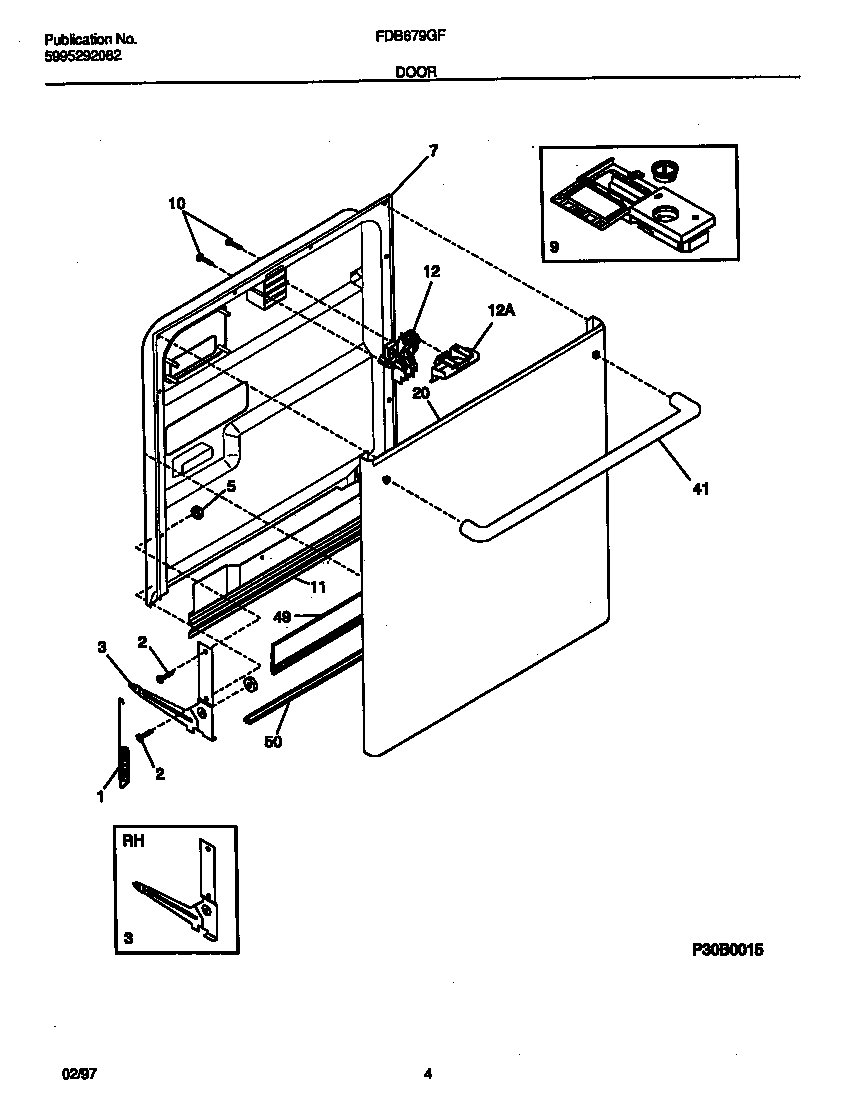

FDB679GFC1 03 – DOOR

FDB679GFC1 03 – DOOR

Written by

in

FDB679GFC1 03 – DOOR

Products

PositionProduct
*45045154103702 Frigidaire Dishwasher Screw
*45047WCI 154213801
*45048INSULATION,DOOR
*45046WCI 154200601
*45049SCREW-8 X 5/8“ (2)
*45050WCI 5300809055
*45044PIN-ARM (NOT ILLUSTRATED)
1154430501 Frigidaire Dishwasher Door Spring
2154093301 Frigidaire Dishwasher ARM Assembly Screw
3A5304409912 Frigidaire Dishwasher P-1 Right Hinge
55303013272 Frigidaire Oven Nut
7WCI 154299002
9154574401 Frigidaire Dishwasher Dispenser
10154419403 Frigidaire Dishwasher Screw
125304442175 Frigidaire Black Door Latch Assembly
20WCI 154281907
41WCI 154207004
49809006501 Frigidaire Bottom Seal/Gasket Door
50WCI 154211401
