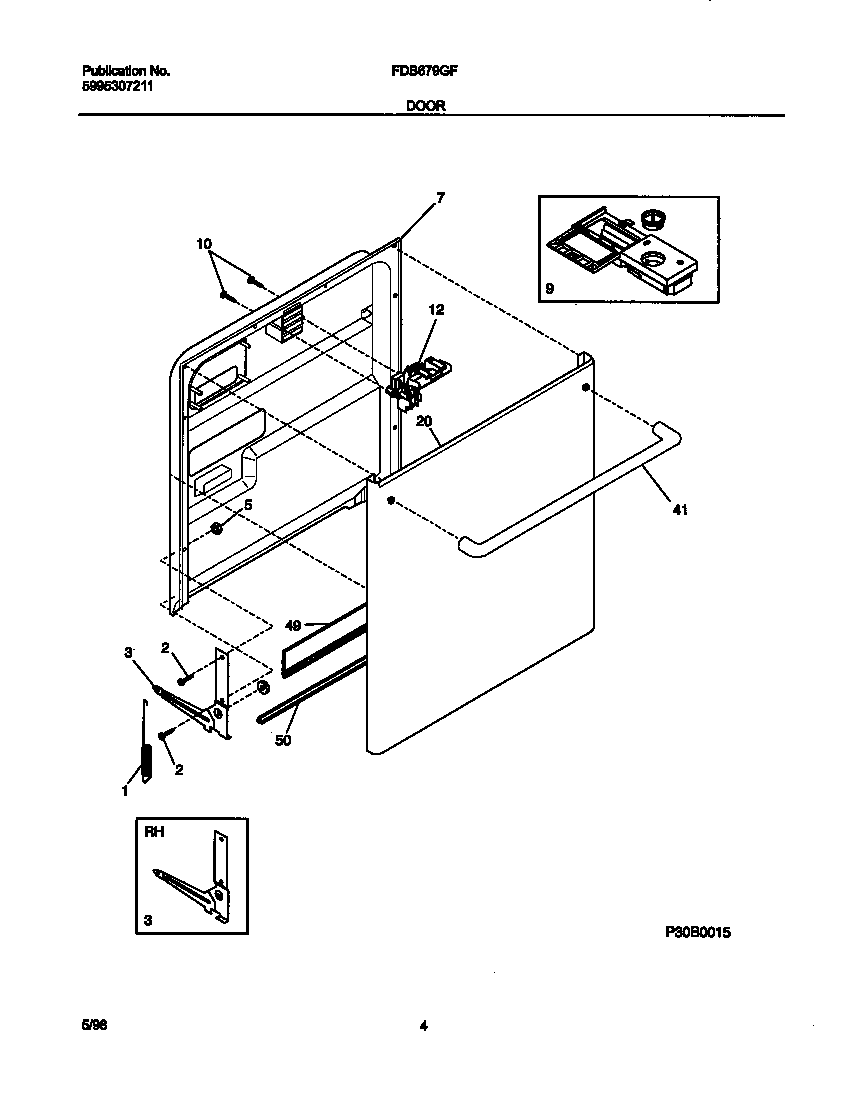

FDB679GFC4 03 – DOOR

FDB679GFC4 03 – DOOR

Written by

in

FDB679GFC4 03 – DOOR

Products

PositionProduct
*38648Screw,shoulder
*38651INSULATION,DOOR
*38649WCI 154200601
*38650WCI 154213801
*38647WCI 154298101
*38646PIN-ARM (NOT ILLUSTRATED)
*38652SCREW-8 X 5/8“ (2)
1154430501 Frigidaire Dishwasher Door Spring
2154093301 Frigidaire Dishwasher ARM Assembly Screw
3B5304409912 Frigidaire Dishwasher P-1 Right Hinge
55303013272 Frigidaire Oven Nut
7WCI 154299002
9154574401 Frigidaire Dishwasher Dispenser
10SCREW-LATCH MTG, (2) (NOT ILLUSTRATED)
125304442175 Frigidaire Black Door Latch Assembly
20WCI 154284104
41WCI 154207004
49809006501 Frigidaire Bottom Seal/Gasket Door
50WCI 154211401
