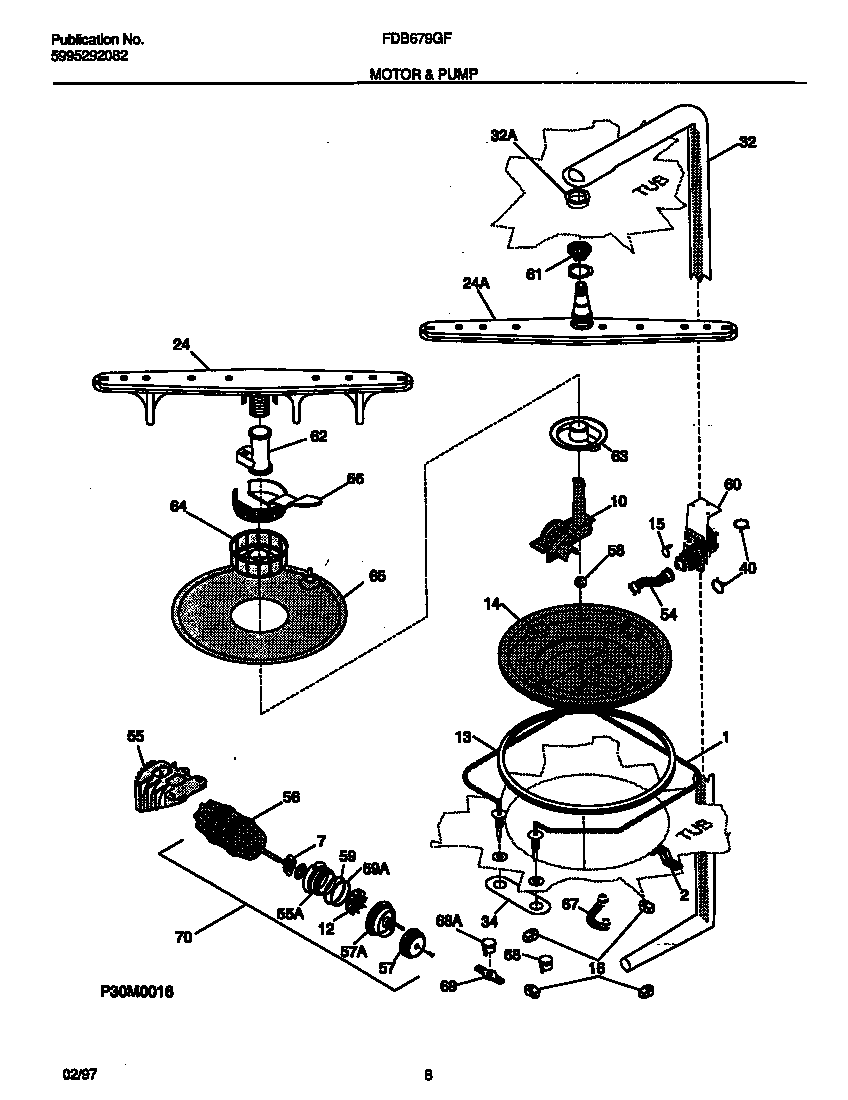

FDB679GFW1 05 – MOTOR & PUMP

FDB679GFW1 05 – MOTOR & PUMP

Written by

in

FDB679GFW1 05 – MOTOR & PUMP

Products

PositionProduct
*45061BRACKET-MOTOR, DRAIN (NOT ILLUSTRATED)
*45060154754901 Frigidaire Dishwasher Screw
*45063WCI 154247201
*45057154289801 Frigidaire Dishwasher Shield
*45058154106202 Frigidaire Dishwasher Heater Nut
*45059SCREW, SS IMPELLER (NOT ILLUSTRATED)
*45064154348401 Frigidaire Dishwasher Clamp
*45062CLAMP, HOSE
*45065WCI 154247401
1154665201 Frigidaire Dishwasher Heater
2WCI 154211001
7WCI 154245901
10807145201 Frigidaire Dishwasher Cover-Volute
12WCI 154245801
13154246801 Frigidaire Dishwasher Primary Gasket
14WCI 154245401
15WCI 154246701
16WCI 154246501
245304517203 Frigidaire Dishwasher Lower Wash Arm Assembly
24A154313601 Frigidaire Dishwasher Control Arm P1
24BWCI 154252001
32WCI 154251701
32WCI 154251601
34WCI 154064901
40154611101 Frigidaire Dishwasher Clamp
54154234401 Frigidaire Dishwasher Hose P-1
55WCI 154246201
55WCI 154245601
56WCI 154245702
57WCI 154246101
57WCI 154246001
58154246402 Frigidaire Dishwasher P-1 BALL
59154247001 Frigidaire Dishwasher Pump Gasket Seal for the Motor and Front
59154246901 Frigidaire Dishwasher Rear O-Ring for 154473001 Motor
60WCI 154247501
61WCI 154250201
625304518968 Frigidaire Lower Spray Arm Support
635304506533 Frigidaire Dishwasher Filter Base
65WCI 154283002
66154252701 Frigidaire Dishwasher Filter Trap Assembly
67WCI 154246601
68WCI 154227804
68WCI 154227803
69154241101 Frigidaire Dishwasher Retainer
70WCI 154291501
