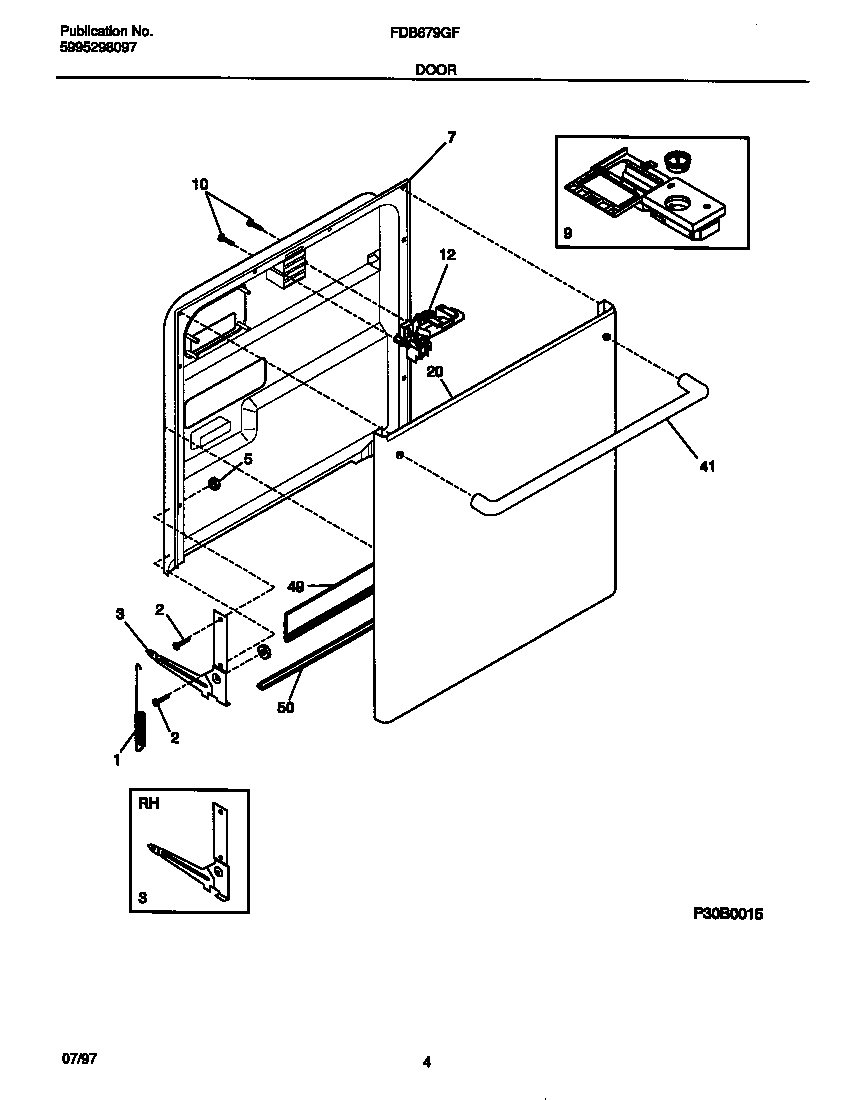

FDB679GFW3 03 – DOOR

FDB679GFW3 03 – DOOR

Written by

in

FDB679GFW3 03 – DOOR

Products

PositionProduct
*00763WCI 154213801
*00764INSULATION,DOOR
1154430501 Frigidaire Dishwasher Door Spring
2154093301 Frigidaire Dishwasher ARM Assembly Screw
3DWCI 154298101
3CPIN-ARM (NOT ILLUSTRATED)
3B5304409912 Frigidaire Dishwasher P-1 Right Hinge
55303013272 Frigidaire Oven Nut
7WCI 154299002
9154574401 Frigidaire Dishwasher Dispenser
10SCREW-LATCH MTG, (2) (NOT ILLUSTRATED)
125304442175 Frigidaire Black Door Latch Assembly
20DOOR,STAINLESS
41BScrew,shoulder
41AWCI 154207004
49809006501 Frigidaire Bottom Seal/Gasket Door
50WCI 154211401
