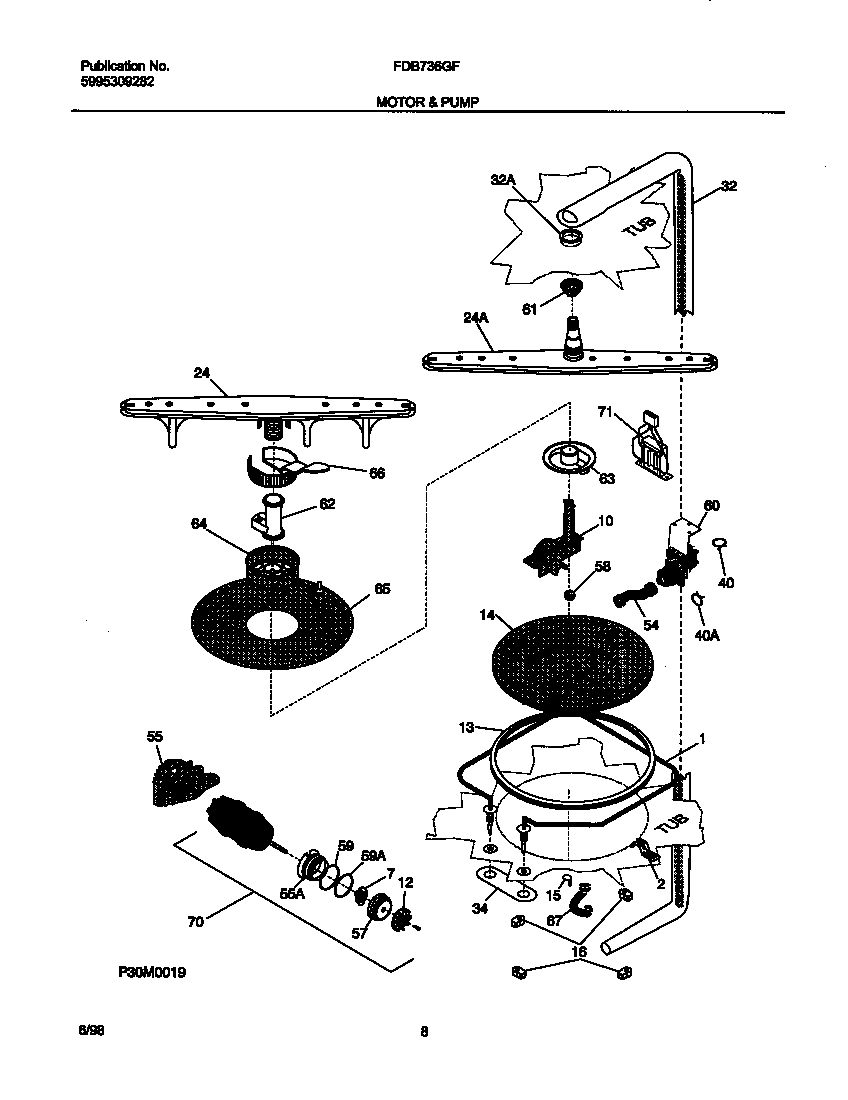

FDB736GFR5 05 – MOTOR AND PUMP

FDB736GFR5 05 – MOTOR AND PUMP

Written by

in

FDB736GFR5 05 – MOTOR AND PUMP

Products

PositionProduct
*28023WCI 154329001
*28017BRACKET-MOTOR, DRAIN (NOT ILLUSTRATED)
*28016WCI 154246101
*28021WCI 154247401
*28020WCI 154247201
*28014SCREW, SS IMPELLER (NOT ILLUSTRATED)
*28022154754901 Frigidaire Dishwasher Screw
*28013154289801 Frigidaire Dishwasher Shield
*28012154106202 Frigidaire Dishwasher Heater Nut
*28024WCI 5303316032
*28019CLAMP, HOSE
*28025WCI 154289901
*28015WCI 154252001
*28018WCI 154200601
1154665201 Frigidaire Dishwasher Heater
2WCI 154322501
7WCI 154245901
10807145201 Frigidaire Dishwasher Cover-Volute
12WCI 154245801
13154246801 Frigidaire Dishwasher Primary Gasket
14WCI 154335403
15WCI 154246701
16154246502 Frigidaire Dishwasher Bracket
24154313601 Frigidaire Dishwasher Control Arm P1
245304517203 Frigidaire Dishwasher Lower Wash Arm Assembly
30154241101 Frigidaire Dishwasher Retainer
32WCI 154251601
32WCI 154251701
34WCI 154064901
40B154348401 Frigidaire Dishwasher Clamp
40A154611101 Frigidaire Dishwasher Clamp
54154234401 Frigidaire Dishwasher Hose P-1
55WCI 154245601
55WCI 154246201
56WCI 154245706
57WCI 154246001
58154246402 Frigidaire Dishwasher P-1 BALL
59154246901 Frigidaire Dishwasher Rear O-Ring for 154473001 Motor
59154247001 Frigidaire Dishwasher Pump Gasket Seal for the Motor and Front
60WCI 154247502
61WCI 154250201
625304518968 Frigidaire Lower Spray Arm Support
635304506533 Frigidaire Dishwasher Filter Base
65WCI 154283004
66154252701 Frigidaire Dishwasher Filter Trap Assembly
67WCI 154246601
70MOTOR & PUMP ASSY,INCLUDES 7, 12 , 55A, 57, 59,,59A
