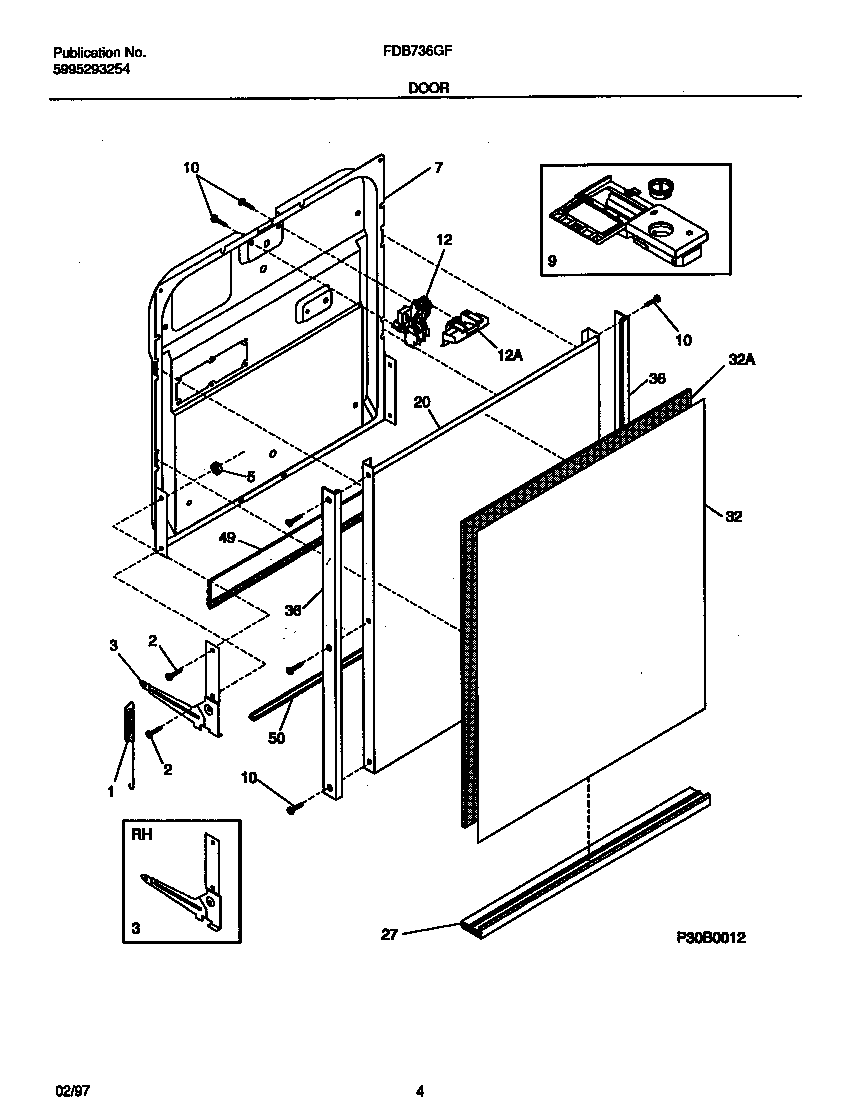

FDB736GFS2 03 – DOOR

FDB736GFS2 03 – DOOR

Written by

in

FDB736GFS2 03 – DOOR

Products

PositionProduct
*95563INSULATION,DOOR
*95562WCI 154200601
*95564SCREW-8 X 5/8“ (2)
1154430501 Frigidaire Dishwasher Door Spring
2154093301 Frigidaire Dishwasher ARM Assembly Screw
3WCI 154298101
3CPIN-ARM (NOT ILLUSTRATED)
3A5304409912 Frigidaire Dishwasher P-1 Right Hinge
55303013272 Frigidaire Oven Nut
7WCI 154299002
9154574401 Frigidaire Dishwasher Dispenser
10154419403 Frigidaire Dishwasher Screw
12SCREW-LATCH MTG, (2) (NOT ILLUSTRATED)
125304442175 Frigidaire Black Door Latch Assembly
20WCI 154210601
27WCI 154257601
32WCI 154229001
32WCI 154229101
36WCI 154254201
49809006501 Frigidaire Bottom Seal/Gasket Door
50WCI 154211401
