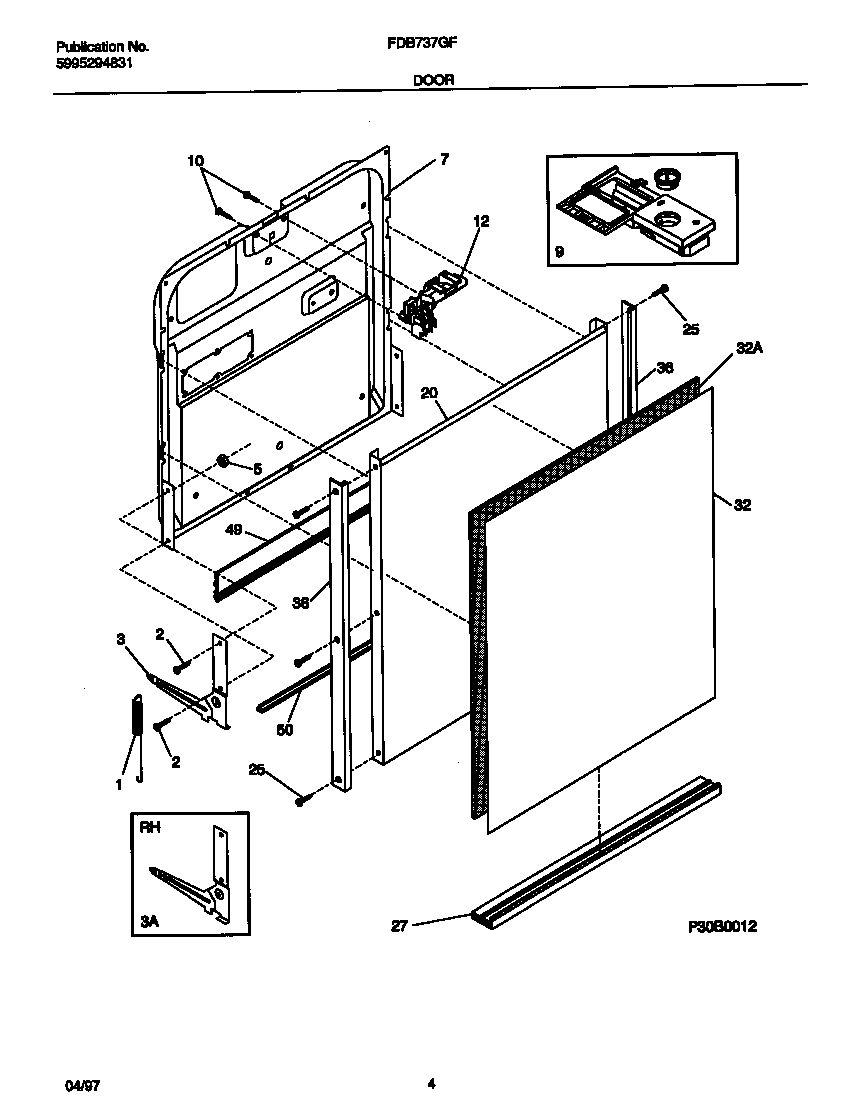

FDB737GFR0 03 – DOOR

FDB737GFR0 03 – DOOR

Written by

in

FDB737GFR0 03 – DOOR

Products

PositionProduct
*31565INSULATION,DOOR
*31564WCI 154200601
1154430501 Frigidaire Dishwasher Door Spring
2154093301 Frigidaire Dishwasher ARM Assembly Screw
3CWCI 154298101
3BPIN-ARM (NOT ILLUSTRATED)
35304409912 Frigidaire Dishwasher P-1 Right Hinge
55303013272 Frigidaire Oven Nut
7WCI 154299002
9154574401 Frigidaire Dishwasher Dispenser
10SCREW-LATCH MTG, (2) (NOT ILLUSTRATED)
12154103702 Frigidaire Dishwasher Screw
125304442175 Frigidaire Black Door Latch Assembly
20WCI 154210601
25154419403 Frigidaire Dishwasher Screw
27WCI 154257603
32BWCI 154229102
32AWCI 154229101
32WCI 5303943148
32WCI 154229001
36WCI 154254203
49809006501 Frigidaire Bottom Seal/Gasket Door
50WCI 154211401
