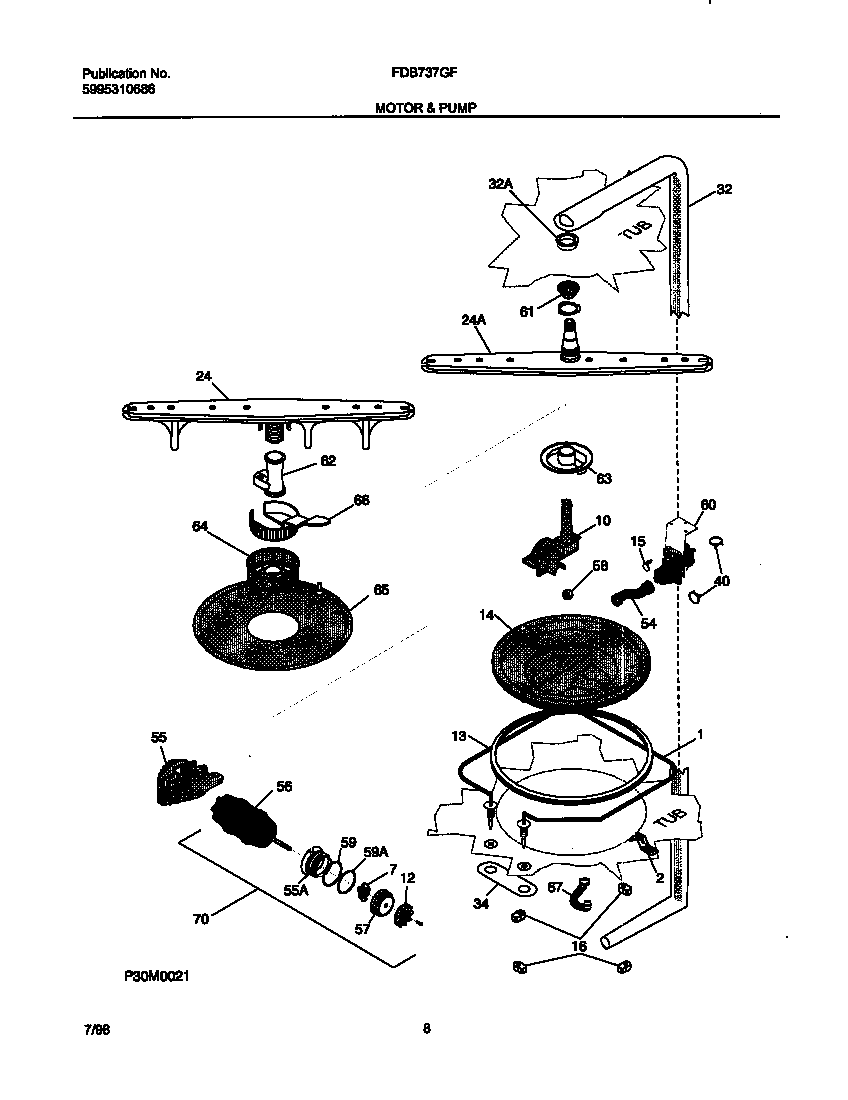

FDB737GFR1 05 – MOTOR

FDB737GFR1 05 – MOTOR

Written by

in

FDB737GFR1 05 – MOTOR

Products

PositionProduct
*73267WCI 154247401
*73268154754901 Frigidaire Dishwasher Screw
*73258SCREW, SS IMPELLER (NOT ILLUSTRATED)
*73257154289801 Frigidaire Dishwasher Shield
*73256154106202 Frigidaire Dishwasher Heater Nut
*73262WCI 154289901
*73260WCI 154246101
*73261BRACKET-MOTOR, DRAIN (NOT ILLUSTRATED)
*73265CLAMP, HOSE
*73269WCI 5303316032
*73266WCI 154247201
*73264154241101 Frigidaire Dishwasher Retainer
*73259WCI 154252001
*73263WCI 154200601
1154665201 Frigidaire Dishwasher Heater
2WCI 154211001
7WCI 154245901
10807145201 Frigidaire Dishwasher Cover-Volute
12WCI 154245801
13154246801 Frigidaire Dishwasher Primary Gasket
14WCI 154245401
15WCI 154246701
16WCI 154246501
24154313601 Frigidaire Dishwasher Control Arm P1
245304517203 Frigidaire Dishwasher Lower Wash Arm Assembly
32WCI 154251701
32WCI 154251601
34WCI 154064901
40A154611101 Frigidaire Dishwasher Clamp
40B154348401 Frigidaire Dishwasher Clamp
54154234401 Frigidaire Dishwasher Hose P-1
55WCI 154246201
55WCI 154245601
56WCI 154245706
57WCI 154246001
58154246402 Frigidaire Dishwasher P-1 BALL
59154246901 Frigidaire Dishwasher Rear O-Ring for 154473001 Motor
59154247001 Frigidaire Dishwasher Pump Gasket Seal for the Motor and Front
60WCI 154247501
61WCI 154250201
625304518968 Frigidaire Lower Spray Arm Support
635304506533 Frigidaire Dishwasher Filter Base
65WCI 154283004
66154252701 Frigidaire Dishwasher Filter Trap Assembly
67WCI 154246601
70MOTOR & PUMP ASSY,INCLUDES 7, 12 , 55A, 57, 59,,59A
