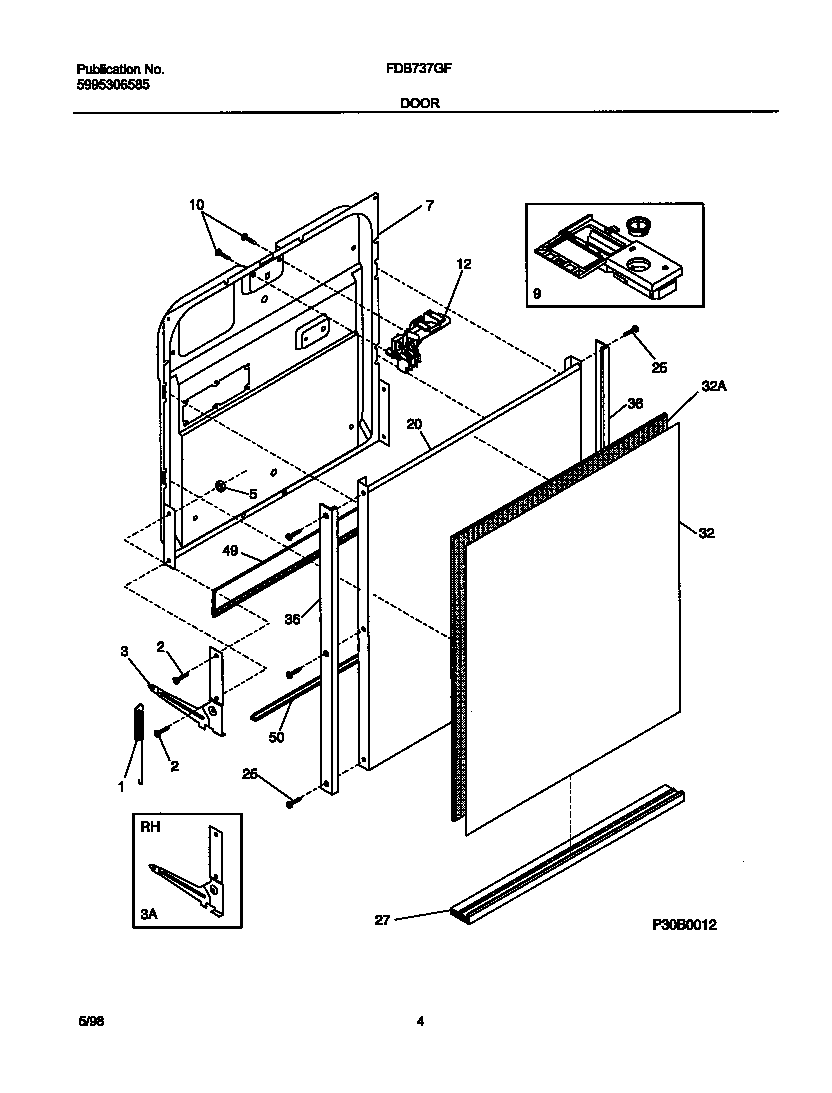

FDB737GFR2 03 – DOOR

Products

Position	Product
*17567	WCI 154298101
*17564	PIN-ARM (NOT ILLUSTRATED)
*17566	INSULATION,DOOR
*17565	WCI 154200601
*17568	SCREW-8 X 5/8“ (2)
1	154430501 Frigidaire Dishwasher Door Spring
2	154093301 Frigidaire Dishwasher ARM Assembly Screw
3	5304409912 Frigidaire Dishwasher P-1 Right Hinge
5	5303013272 Frigidaire Oven Nut
7	WCI 154299002
9	154574401 Frigidaire Dishwasher Dispenser
10A	154103702 Frigidaire Dishwasher Screw
10C	154419403 Frigidaire Dishwasher Screw
10B	SCREW-LATCH MTG, (2) (NOT ILLUSTRATED)
12	5304442175 Frigidaire Black Door Latch Assembly
20	WCI 154210601
27	WCI 154257603
32	WCI 5303943148
32	WCI 154229001
36	WCI 154254203
49	809006501 Frigidaire Bottom Seal/Gasket Door
50	WCI 154211401
